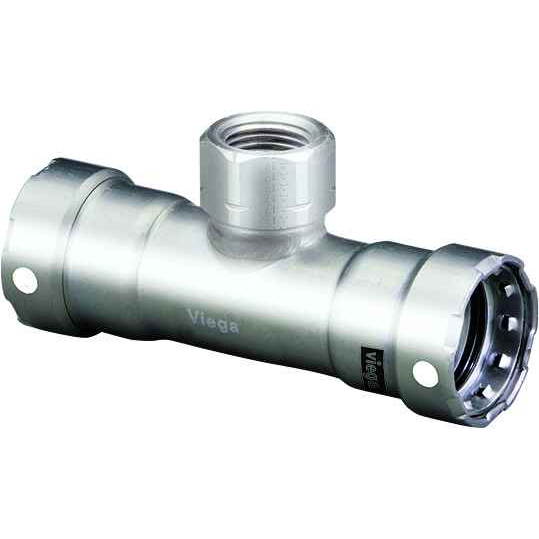

95225 Viega MegaPress tee Smart Connect technology 304 stainless steel, 2'' x 2'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 2'' x 2'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.677"
- Product Height:
- 2.913"
- Product Weight:
- 2.244 lbs
- Product Width:
- 4.016"
- Product Material:
- 304 stainless steel
Viega 95225 – Frequently Asked Questions
1) What are the three connections on the Viega MegaPress 95225 tee?
The 95225 is a reducing tee with two 2 inch press ends on the run and a 1 inch female pipe thread branch (P1 x P2 x FPT). So the run presses onto 2 inch carbon or black steel pipe and the branch takes a male-threaded 1 inch connection, no press tool needed on that leg.
2) Do I need a press tool for the 2 inch ends of the Viega 95225?
Yes. The two 2 inch run connections are MegaPress press joints and require a press tool with the matching 2 inch MegaPress jaw or ring and actuator. Only the 1 inch branch is threaded and made up with pipe dope or tape and a wrench.
3) Can I use the Viega 95225 MegaPress tee to take a 1 inch branch off a 2 inch steel main?
That is exactly the configuration. Press the two 2 inch ends onto the existing steel main and thread the 1 inch branch for a drop, a gauge assembly, a drain or a device takeoff. The threaded branch means you can land a valve or nipple without a second press.
4) Is the Viega 95225 MegaPress tee stainless or carbon steel?
The fitting body is 304 stainless steel. That matters on a job where the spec calls out a stainless press fitting rather than the zinc-nickel carbon steel MegaPress body.
5) What does Smart Connect do on the Viega 95225 tee?
Smart Connect is Viega's unpressed-joint feature: a connection left unpressed will leak visibly during pressure testing, so the installer finds the missed joint before the walls close. It is built into both 2 inch press ends on the 95225. The 1 inch FPT branch is a threaded joint and is not part of that feature.
6) Where is the Viega 95225 MegaPress tee manufactured?
Made in Germany. That is often asked on institutional and government jobs where country of origin has to be documented in the submittal.
