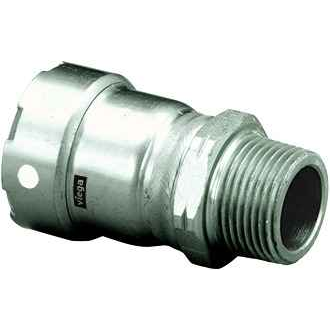

95245 Viega MegaPress adapter Smart Connect technology 304 stainless steel, 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P x MPT
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 3.02"
- Product Height:
- 1.78"
- Product Weight:
- 0.483 lbs
- Product Width:
- 1.78"
- Product Material:
- 304 stainless steel
Viega 95245 – Frequently Asked Questions
1) What kind of connection does the Viega 95245 MegaPress adapter have on each end?
The Viega 95245 is a press-by-male-thread adapter: one end is a MegaPress press socket, the other is 1 inch male pipe thread (P x MPT). It lets you transition from pressed carbon or black steel pipe to a threaded connection such as a valve, union, or threaded equipment port without cutting a thread on site.
2) Is the Viega 95245 MegaPress adapter stainless or carbon steel?
It is made from 304 stainless steel. That matters when you are matching material to the system: a stainless body resists corrosion better than a zinc nickel plated carbon steel fitting, which is what standard MegaPress carbon fittings use.
3) What is Smart Connect on this Viega MegaPress adapter, and do I still have to inspect the joint?
Smart Connect is Viega's unpressed connection feature. On a fitting that has not been pressed, the sealing element is designed to leak when the system is pressure tested, so the installer can find the missed joint before the walls close up. It does not replace pressing: you still press every socket with the correct MegaPress jaw and then pressure test the system.
4) How much room do I need around the Viega 95245 press-to-male-thread adapter?
The fitting measures 3.02 inches in length and 1.78 by 1.78 inches across, so plan for press tool jaw clearance beyond that footprint. It weighs 0.483 lbs, which is light enough that it needs no separate support beyond normal pipe hangers.
5) What is the exact part number and origin for this 1 inch Viega MegaPress stainless adapter?
Order it as Viega part number 95245. It is manufactured in Germany, which is often the detail a spec-driven or institutional buyer needs for submittal paperwork.
