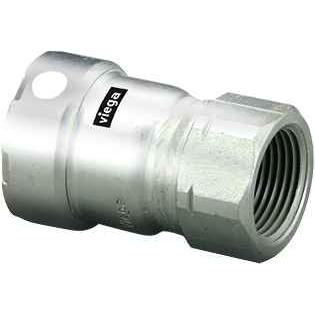

95260 Viega MegaPress adapter Smart Connect technology 304 stainless steel, 1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FPT
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 2.311"
- Product Height:
- 1.264"
- Product Weight:
- 0.232 lbs
- Product Width:
- 1.264"
- Product Material:
- 304 stainless steel
Viega 95260 – Frequently Asked Questions
1) What connections does the Viega 95260 MegaPress adapter have on each end?
One press end and one female NPT thread, listed as P x FPT, both at 1/2 inch. The press side goes onto 1/2 inch black iron or carbon steel pipe with a MegaPress jaw; the threaded side takes a 1/2 inch male NPT nipple, valve tailpiece, or gauge fitting. That makes it the transition piece when you need to leave a serviceable threaded joint at the end of a pressed run.
2) Is the Viega 95260 MegaPress fitting brass or stainless?
The body is 304 stainless steel, made in Germany. Stainless gives you a different corrosion picture than a bronze or malleable iron threaded adapter, which matters on wet or washdown areas and on exposed mechanical room piping.
3) How much room do I need to fit a 1/2 inch MegaPress adapter in a tight bay?
The adapter itself is 2.311 inches long and 1.264 inches across in both height and width, and weighs 0.232 lbs. Plan clearance around that body for the press tool jaw as well, since the jaw needs to close square on the press end.
4) What does Smart Connect do on the Viega 95260 adapter?
Smart Connect is Viega's unpressed-connection feature on the 95260 MegaPress adapter. It is built so an unpressed joint leaks under test rather than holding, so you find the fitting you skipped during pressure test instead of after the wall is closed.
5) Do I still need to thread or weld pipe when using the 95260?
Not on the press side. The 95260 presses onto 1/2 inch pipe with a MegaPress tool and jaw, so no cutting of threads and no hot work there. You only deal with thread sealant on the 1/2 inch FPT side where you land the male NPT component.
