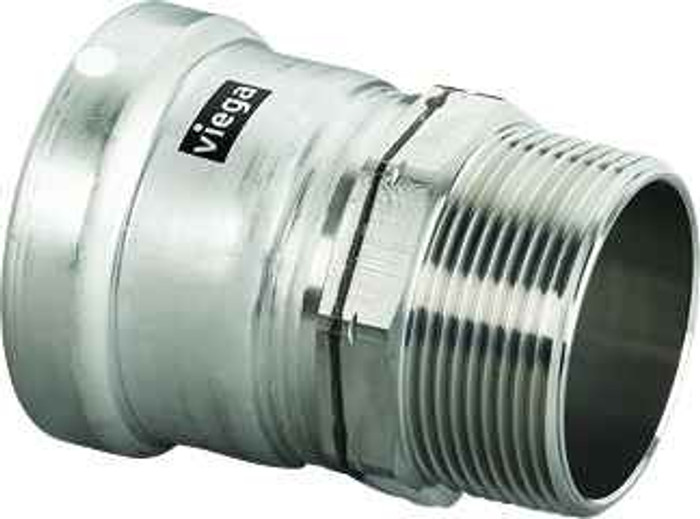

95635 Viega MegaPress adapter Smart Connect technology 304 stainless steel, 2-1/2'' x 2-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P x MPT
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 2-1/2'' x 2-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 4.528"
- Product Height:
- 3.543"
- Product Weight:
- 1.675 lbs
- Product Width:
- 3.543"
- Product Material:
- 304 stainless steel
Viega 95635 – Frequently Asked Questions
1) What kind of connection does the Viega 95635 MegaPress adapter have on each end?
The Viega 95635 is a press-to-male-thread adapter: one end is a 2-1/2 inch MegaPress press socket, the other is a 2-1/2 inch male pipe thread (P x MPT). You press the socket onto the carbon or black steel pipe with a Viega press tool and jaw, then thread the other end into a female NPT port, valve, or threaded equipment connection.
2) Can I use a MegaPress adapter instead of cutting threads on 2-1/2 inch steel pipe?
That is exactly what the 95635 is for. Rather than threading the pipe in place, you cut the 2-1/2 inch steel pipe square, mark the insertion depth, and press the fitting on cold with a press tool. The male NPT end then gives you the one thread you actually need for the valve or equipment tie-in, so you are not dragging a pipe threader and cutting oil into an occupied building.
3) Is the Viega 95635 actually a tee or a straight adapter?
It is a two-end adapter, press on one side and 2-1/2 inch male thread on the other, with no branch outlet. If you need to take a branch off a 2-1/2 inch steel main, this is not the part, you need a MegaPress tee or branch fitting. Use the 95635 only where you are transitioning a press line to a threaded connection in line.
4) Will the threaded end of the Viega 95635 screw into a 2-1/2 inch female NPT valve?
Yes. The adapter's thread is a 2-1/2 inch male pipe thread, so it mates with any 2-1/2 inch female NPT port, union, or valve body. Thread it with sealant or tape suited to the service as you would any steel pipe thread, and tighten against the fitting body rather than torquing through the pressed socket.
5) Is the Viega 95635 MegaPress adapter stainless steel or carbon steel?
It is 304 stainless steel, body and threads. That matters when you are choosing between the carbon steel MegaPress line and the stainless version: the 304 body handles wetted and damp service better than a zinc-nickel coated carbon fitting, and it is what you want where the connection sits outdoors, in a mechanical room with condensation, or on a line where corrosion resistance at the thread is the weak point.
6) What does Smart Connect mean on the Viega 95635 press fitting?
Smart Connect is the feature built into the MegaPress sealing element that leaves an unpressed connection detectable during pressure testing, so a fitting you missed shows itself as a leak at test rather than after the ceiling closes. On a job with dozens of 2-1/2 inch joints it is the reason you can test and move on instead of re-checking every press by hand. It does not replace pressing the joint, and every connection still has to be pressed with the correct jaw.
7) Where is the Viega 95635 MegaPress fitting made?
Made in Germany. For spec submittals and procurement files that track country of origin, that is the value to put on the sheet for the 95635 adapter.
