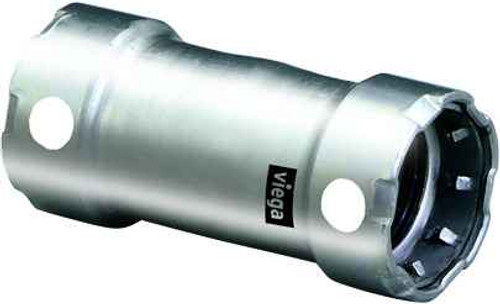

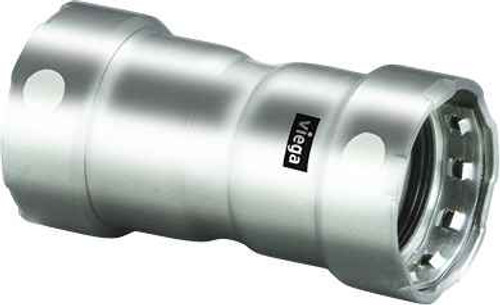

95325 Viega MegaPress coupling No stop Smart Connect technology 304 stainless steel, 1-1/2'' x 1-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1-1/2'' x 1-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Couplings
- Product Type:
- Coupling
- Product Length:
- 4.713"
- Product Height:
- 2.437"
- Product Weight:
- 0.985 lbs
- Product Width:
- 2.437"
- Product Material:
- 304 stainless steel
Viega 95325 – Frequently Asked Questions
1) What size pipe does the Viega 95325 MegaPress coupling fit?
The Viega MegaPress 95325 coupling is a 1-1/2 inch by 1-1/2 inch fitting, so it joins two runs of 1-1/2 inch pipe. Both ends are press connections (P1 x P2), so there is no threading or welding at either end.
2) What does "no stop" mean on this Viega MegaPress coupling?
A no-stop coupling has no internal tube stop, so it can slide fully onto one pipe end. That is what lets you use it as a repair coupling on a fixed length of pipe, where you cannot pull the pipe apart to butt it against a stop.
3) Do I need a special tool to install the Viega 95325, or can I thread it?
Both ends are press connections, so this coupling is installed with a press tool and the correct 1-1/2 inch MegaPress jaw or ring. There are no threads on it, and it cannot be substituted for a threaded or grooved coupling.
4) What material is the Viega 95325 MegaPress coupling made of, and will it work on carbon steel pipe?
The 95325 is 304 stainless steel. Stainless MegaPress fittings are the ones specified where you do not want carbon steel in the line, and the stainless body will press onto steel pipe of the matching 1-1/2 inch size.
5) How much clearance do I need to install a 1-1/2 inch MegaPress coupling in a tight chase?
The fitting body measures 4.713 inches long and 2.437 inches across in both height and width. You will need that envelope plus room for the press jaw to swing around the pipe, so plan clearance well beyond the 2.437 inch outside dimension.
6) What is Smart Connect technology on Viega MegaPress fittings?
Smart Connect is Viega's feature that lets an unpressed connection leak intentionally during pressure testing, so an inspector or installer can find a joint that was missed before the system is put in service. The 95325 coupling has it.
7) Where is the Viega 95325 MegaPress coupling manufactured, and how much does it weigh?
Made in Germany, and the fitting weighs 0.985 lbs. That weight matters if you are hanging a long press-assembled run and sizing supports, since stainless fittings add up across a riser.
