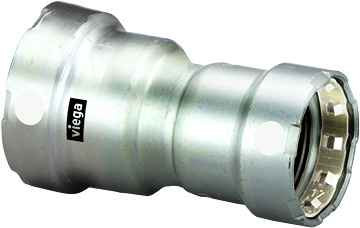

95335 Viega MegaPress reducer Smart Connect technology 304 stainless steel, 3/4'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 3/4'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 3.449"
- Product Height:
- 1.496"
- Product Weight:
- 0.32 lbs
- Product Width:
- 1.496"
- Product Material:
- 304 stainless steel
Viega 95335 – Frequently Asked Questions
1) What sizes does the Viega 95335 MegaPress reducing fitting connect?
Viega MegaPress 95335 is a 3/4 inch x 1/2 inch reducer in 304 stainless steel, with press connections on both ends (P1 x P2). Use it where a 3/4 inch black iron pipe run steps down to a 1/2 inch branch or drop.
2) Is the Viega 95335 a press fitting or threaded?
Press on both ends. The connection type is P1 x P2, meaning two press ends, so it goes on with a MegaPress jaw and press tool rather than being threaded or soldered. There is no NPT thread on this fitting, so if you need to tie into a threaded nipple or valve you will need a separate press-to-thread adapter.
3) Does the Viega 95335 have the Smart Connect feature, and what does it do?
Yes, the 95335 reducer is built with Viega's Smart Connect technology. It is the feature on the sealing element that lets an unpressed connection weep during pressure testing, so an installer can find a joint that was missed before the system is put into service.
4) What material is the Viega 95335 MegaPress reducer, and where is it made?
The body is 304 stainless steel, and it is made in Germany. The stainless body is the one to check against your spec: MegaPress fittings also come in carbon steel, so if a drawing calls out stainless, part 95335 is the stainless version.
5) How much room do I need to fit a 3/4 x 1/2 MegaPress reducer in a tight chase?
The 95335 measures 3.449 inches long by 1.496 inches wide and 1.496 inches high, and weighs 0.32 lbs. Plan the clearance around the press tool jaw as well, since the jaw needs to close fully around the fitting collar to make the joint.
