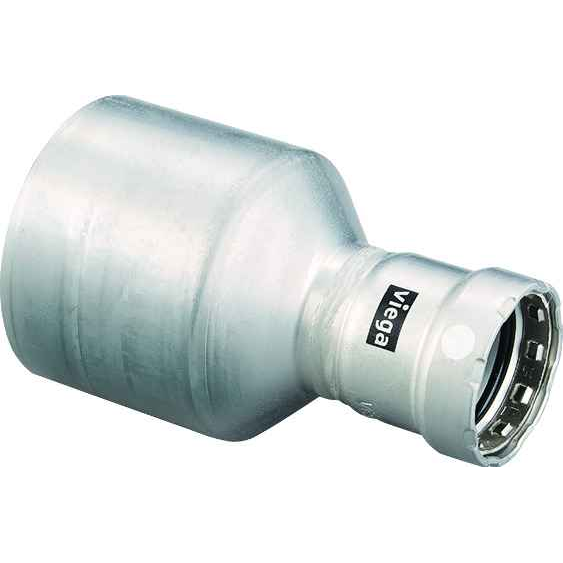

95680 Viega MegaPress reducer Smart Connect technology 304 stainless steel, 3'' x 2''
Manufacturer Resources
Product Specs
- Connection Type:
- FTG x P
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 3'' x 2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 5.835"
- Product Height:
- 3.5"
- Product Weight:
- 1.845 lbs
- Product Width:
- 3.5"
- Product Material:
- 304 stainless steel
Viega 95680 – Frequently Asked Questions
1) What size pipe does the Viega 95680 MegaPress reducer fit?
The Viega 95680 MegaPress reducing fitting is a 3 inch x 2 inch configuration, with an FTG x P connection. The FTG end is sized to slip into a 3 inch press socket, and the P end is a press socket that receives 2 inch pipe. So it steps a 3 inch run down to 2 inch.
2) Is the Viega 95680 stainless or carbon steel?
It's 304 stainless steel, not carbon steel. That matters when you're choosing which MegaPress family to buy from: carbon steel MegaPress is for black iron gas and hydronic work, while the stainless version is what you specify where the media or the environment would corrode carbon steel. Keep the body material consistent with the rest of the run.
3) What is Smart Connect technology on Viega MegaPress fittings?
Smart Connect is Viega's unpressed-joint feature: the sealing element is shaped so an unpressed connection leaks visibly during pressure testing instead of passing the test and failing later. On a job with dozens of presses, it's the reason you can find the one you missed before the ceiling closes up. The 95680 reducer carries it.
4) Do I need a special press tool for the 3 inch end of this MegaPress fitting?
Yes. The 2 inch press end and the 3 inch joint the FTG side plugs into are large-diameter presses, which on MegaPress are made with press rings and an actuator rather than standard jaws. Confirm your tool is rated for the larger ring sizes before you get to the 3 inch transition, because a jaw set that handles half inch through 2 inch will not finish this joint.
5) Can I use this MegaPress reducer to branch off a main, or does it only reduce in line?
The 95680 is a reducing fitting with two ends, a 3 inch FTG and a 2 inch press socket, so it changes size along a single run. It is not a branch fitting. To take a 2 inch branch off a 3 inch main you need a tee or an outlet fitting, then this piece can handle the size change downstream of it.
