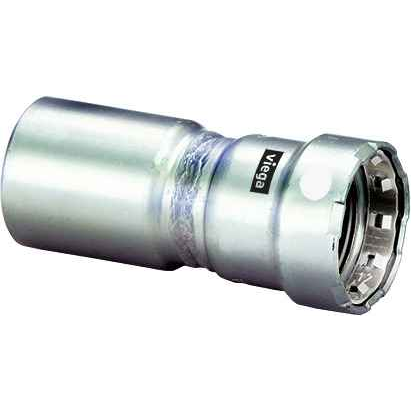

95380 Viega MegaPress reducer Smart Connect technology 304 stainless steel, 2'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FTG
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 2'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 4.512"
- Product Height:
- 2.374"
- Product Weight:
- 0.932 lbs
- Product Width:
- 2.374"
- Product Material:
- 304 stainless steel
Viega 95380 – Frequently Asked Questions
1) What size pipe does the Viega 95380 MegaPress reducing fitting connect?
The Viega 95380 is a 2 inch by 1 inch reducer in 304 stainless steel. Connection type is P x FTG, meaning one end is a press socket that accepts the pipe and the other is a fitting-end (FTG) that inserts into the next press socket downstream.
2) What does P x FTG mean on a MegaPress fitting, and will it press into another fitting?
P is a press end with the sealing element that receives pipe. FTG is a fitting end sized like pipe outside diameter, so it slips directly into another press socket instead of taking pipe. On the Viega 95380 that gives you one 2 inch press socket and a 1 inch side you push into the next fitting, which saves a short nipple when two fittings land back to back.
3) Is the Viega 95380 stainless or carbon steel, and does that matter for my pipe?
It is 304 stainless steel, which is the MegaPress stainless line rather than the carbon steel version. Match the fitting metal to the system you are pressing so you are not mixing carbon and stainless in the same run.
4) How much room do I need to fit the Viega 95380 in a tight ceiling or chase?
Plan on 4.512 inches of length and 2.374 inches in both height and width for the 2 x 1 reducer, plus clearance on each side for the press jaw and ring to seat squarely. In tight chases the jaw swing, not the fitting, is usually what decides whether you can press it in place.
5) Does the Viega 95380 have Smart Connect, and what does that actually do on the job?
Yes, it is a Smart Connect fitting. The feature leaves an unpressed connection deliberately leaky during pressure test, so an inspector or plumber sees the joint that was missed rather than discovering it after the walls close.
6) Can I order the Viega 95380 by part number for a spec submittal?
Order it as Viega 95380, the 2 inch x 1 inch MegaPress 304 stainless reducer, manufacturer part number 95380. It is made in Germany, and it is sold as the single model with no finish or size options to specify.
