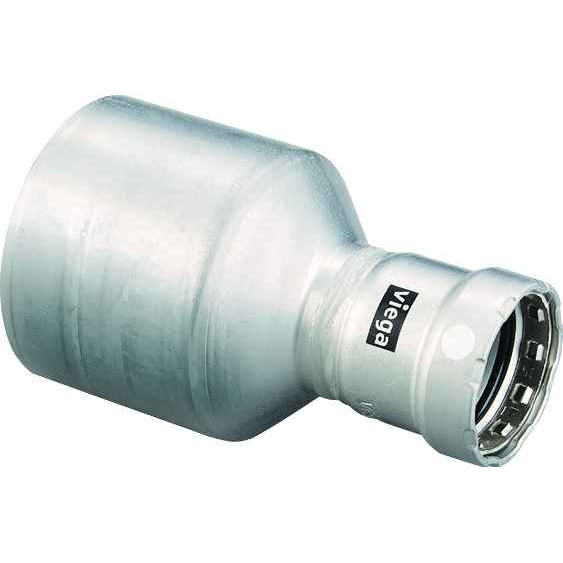

Viega 95675 MegaPress reducer Smart Connect technology 304 stainless steel, 2-1/2'' x 2''

FTG x P means one end is a fitting (street) end and the other is a press socket. The 2-1/2 inch FTG end is sized to slip into the socket of another MegaPress fitting rather than over pipe, and the 2 inch P end is a press socket that goes over pipe and gets crimped with a press tool. So you use the 95675 to step down from 2-1/2 to 2 inch where the larger side lands directly in another fitting, saving a short nipple between the two.

The body is 304 stainless steel, made in Germany. That matters when you are matching the rest of the run: keep the fitting material consistent with the pipe and the other fittings in the system so you are not mixing materials at a press joint.

Order Viega part number 95675. That is the MegaPress 304 stainless reducer in 2-1/2 inch by 2 inch with an FTG x P configuration. Confirm the FTG side suits your layout, because a reducing coupling with two press sockets is a different part and will not land inside another fitting.

Press fittings like the 95675 ship with the sealing element already seated in the press socket, so no dope, tape, or added gasket goes into the joint. Nothing extra is included beyond the fitting itself, so the press tool and the correctly sized jaw or ring are on you. Before pressing, check the pipe end is cut square and deburred, since a burr can roll or cut that seal.

Smart Connect is Viega's feature that lets an unpressed connection be identified during pressure testing, so a missed joint shows itself before the system is put in service. It does not change the install sequence on the 95675: cut and deburr the pipe, mark insertion depth, seat the pipe fully in the 2 inch press socket, and press with the matching jaw. Still walk the run and pressure test, because that is how the feature does its job.
