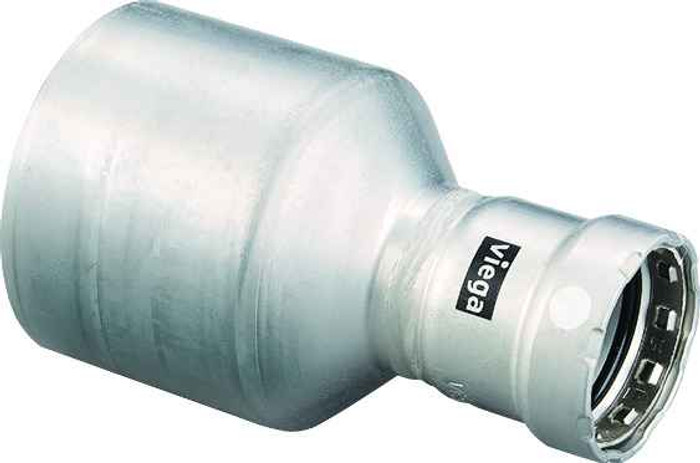

95695 Viega MegaPress reducer Smart Connect technology 304 stainless steel, 4'' x 2-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- FTG x P
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 4'' x 2-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.047"
- Product Height:
- 5.193"
- Product Weight:
- 3.031 lbs
- Product Width:
- 5.193"
- Product Material:
- 304 stainless steel
Viega 95695 – Frequently Asked Questions
1) What do the FTG and press ends on the Viega 95695 MegaPress reducer actually connect to?
The 95695 is an FTG x P configuration: one end is a fitting (FTG) end sized to slip into another fitting's socket, and the other is a MegaPress press end that goes onto pipe and is crimped with a press tool. So you are not pressing both ends onto pipe, one side mates into an adjacent fitting socket. Sizes are 4 inch by 2-1/2 inch.
2) Is the Viega 95695 MegaPress reducer stainless or carbon steel, and does that matter for the system I am pressing into?
It is 304 stainless steel. Keep stainless MegaPress fittings with stainless lines, carbon steel MegaPress bodies are a separate line and mixing materials in a wet system invites galvanic corrosion. The 304 body is the reason this part shows up on food service, process, and exposed mechanical work rather than plain black iron gas piping.
3) I need to order the exact Viega MegaPress stainless reducer in 4 inch by 2-1/2 inch. What is the part number?
Order Viega part number 95695. That number covers the MegaPress 304 stainless reducer in 4 inch by 2-1/2 inch with FTG x P ends. It is manufactured in Germany. If your takeoff calls for press on both ends rather than a fitting end, 95695 is not the one, confirm the FTG x P orientation against your drawing.
4) What is Smart Connect on this Viega MegaPress fitting and what does it do for the installer?
Smart Connect is Viega's unpressed-connection feature. An uncrimped joint is meant to leak visibly when the system is pressure tested, so a missed press shows up at test instead of after the ceiling is closed. On a 4 inch by 2-1/2 inch reducer feeding a riser, that is the difference between finding one bad joint on a punch list and chasing it behind drywall.
5) Should I use a press reducer like the Viega 95695 or thread and weld the stainless transition instead?
A pressed transition is the fast call on occupied buildings and anywhere a hot work permit is a problem, no flame, no weld purge, no threading oil. Welding still wins where the spec requires a welded joint or the service is outside what a sealed press joint is rated for. For a 4 inch to 2-1/2 inch stainless step-down on retrofit mechanical work, the press reducer is what gets the riser back in service the same day.
