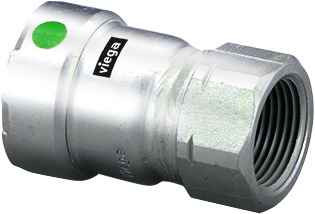

95470 Viega MegaPress transition coupling Smart Connect technology 304 stainless steel, 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 (IPS) x P2 (CTS)
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Couplings
- Product Type:
- Transition Coupling
- Product Length:
- 3.173"
- Product Height:
- 1.494"
- Product Weight:
- 0.284 lbs
- Product Width:
- 1.494"
- Product Material:
- 304 stainless steel
Viega 95470 – Frequently Asked Questions
1) What does the Viega MegaPress 95470 transition coupling actually connect?
The 95470 is a 3/4 inch x 3/4 inch press transition coupling with one IPS end and one CTS end (listed as P1 (IPS) x P2 (CTS)). IPS is iron pipe size, so that end goes onto 3/4 inch black iron or steel pipe; the CTS end is copper tube size, for 3/4 inch copper or copper-size tubing. It is the fitting you use where a steel pipe run has to pick up copper-size tube without threading or welding.
2) Is the Viega 95470 coupling stainless or carbon steel, and where can I use it?
It is 304 stainless steel, body and all. That matters when you are choosing between Viega's carbon steel and stainless MegaPress lines: stainless is what you reach for where the carbon version would corrode. Both press ends are the same 3/4 inch nominal size.
3) Do I need anything besides the fitting to install the Viega 95470?
The coupling ships as a single press fitting, model 95470, with the sealing element already in it. You supply the press tool and the correct 3/4 inch jaws or ring for each end, and you cut, deburr and mark insertion depth on the pipe before pressing. No solder, no threading, no dope.
4) What is Smart Connect on this Viega press coupling and why does it matter on the job?
Smart Connect is Viega's unpressed-connection feature: an unpressed joint leaks visibly during pressure test rather than holding and failing later. On a run with many joints it is how you find the one you missed before the wall closes up. The 95470 carries it on both the IPS and CTS ends.
5) Where is the Viega 95470 MegaPress fitting made?
Germany. For submittal packages that require country of origin, the 95470 is listed as made in Germany, 304 stainless steel construction.
