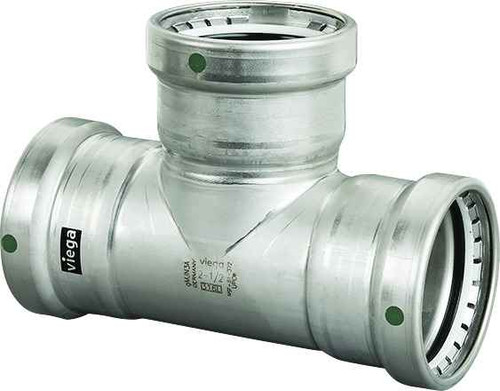

95565 Viega MegaPress tee Smart Connect technology 304 stainless steel, 3'' x 3'' x 3''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Country Of Origin:
- Made In Germany
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 3'' x 3'' x 3''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 9.764"
- Product Height:
- 4.181"
- Product Weight:
- 4.862 lbs
- Product Width:
- 6.913"
Viega 95565 – Frequently Asked Questions
1) Is the Viega 95565 MegaPress tee an equal tee, and what size pipe does it press onto?
It's a full equal tee, 3 inch on all three outlets (3" x 3" x 3"). All three ends are press connections, so every branch goes onto 3 inch pipe with a press tool and jaw sized for 3 inch MegaPress.
2) What material is the Viega 95565 MegaPress tee, and can I use it on a stainless steel pipe system?
The fitting body is 304 stainless steel, so it suits stainless piping systems where a carbon steel MegaPress fitting would not be appropriate. It is made in Germany.
3) How much room do I need to fit a 3 inch MegaPress stainless tee in a tight mechanical space?
Plan for a fitting roughly 9.764 inches on its longest dimension, 6.913 inches across, and 4.181 inches on the remaining axis. On top of that you need clearance all around each of the three press collars for the tool jaw or press ring to close square on the pipe, which is usually the real constraint in a joist bay or against a wall.
4) What is Smart Connect on the Viega 95565 tee and why does it matter to an inspector?
Smart Connect is Viega's unpressed-connection feature: an unpressed joint leaks intentionally during pressure testing so it gets caught on the test rather than after the walls close. On a three-outlet fitting like this 3 inch tee that's three separate presses to make, which is exactly where a missed crimp happens.
5) Does the 95565 MegaPress tee need threading or welding?
No. It's a press fitting on all three ends, so the pipe gets cut, deburred, marked for insertion depth, and pressed. No threading, no grooving, no hot work, which is why these get used in occupied buildings and retrofit work where a welding permit is a problem.
6) What Viega part number do I order for a 3 inch stainless MegaPress tee?
Order Viega part 95565, the MegaPress 304 stainless steel tee in 3" x 3" x 3". That's the manufacturer number to quote to a distributor or put on a submittal.
