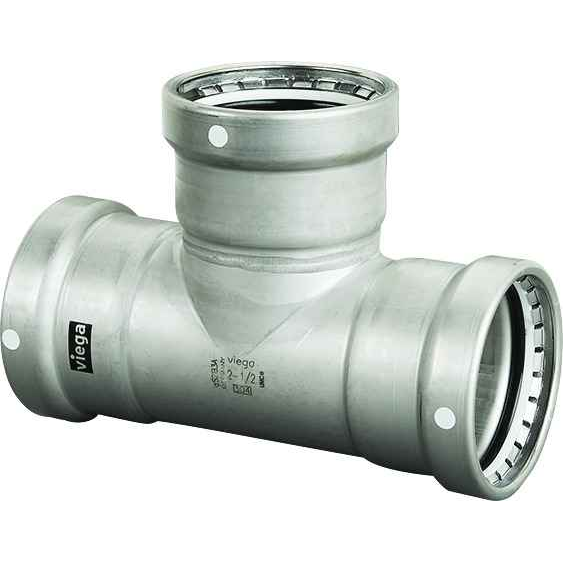

95615 Viega MegaPress tee Smart Connect technology 304 stainless steel, 4'' x 4'' x 3''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Country Of Origin:
- Made In Germany
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 4'' x 4'' x 3''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 11.614"
- Product Height:
- 5.193"
- Product Weight:
- 6.949 lbs
- Product Width:
- 8.028"
Viega 95615 – Frequently Asked Questions
1) What pipe sizes does the Viega 95615 MegaPress tee connect?
The Viega 95615 MegaPress tee is a 4 inch x 4 inch x 3 inch reducing tee: the run is 4 inch on both ends and the branch presses onto 3 inch pipe. All three ends are press connections, no threading or welding.
2) Is the Viega 95615 MegaPress tee stainless steel or carbon steel?
It is 304 stainless steel. That matters when you are choosing between MegaPress fittings for black iron gas and steam lines and MegaPressG or stainless versions for wet or corrosive service, so match the fitting body to what the spec on the drawing calls for.
3) Can I press this tee onto the pipe I already have, or do I need to cut in a threaded or welded fitting?
It presses directly onto prepared pipe ends, all three ports. There is no thread and no weld, so you cut, deburr, mark insertion depth and press with the correct 4 inch and 3 inch jaws or rings for MegaPress. The press tool and the size-matched rings are separate items and are not part of the fitting.
4) I need a full-size 4 inch branch, not 3 inch. Will this tee work?
No. The 95615 branch port is 3 inch. If you need a 4 inch outlet you need a straight 4 x 4 x 4 MegaPress tee instead, or this fitting plus a separate reducer, which adds a joint and a press you probably do not want on a main.
5) How much room do I need to fit a 4 x 4 x 3 MegaPress tee in a tight mechanical room?
Plan for a fitting roughly 11.614 inches long, 8.028 inches wide and 5.193 inches high, and it weighs 6.949 lbs. On top of that you need clearance around the fitting for the press tool ring and actuator on all three ports, so a bare fitting dimension is not the whole story when you are pressing 4 inch line in a joist bay or against a wall.
6) What is Smart Connect on this Viega press tee and why does it matter on inspection?
Smart Connect is Viega's unpressed-connection feature: an unpressed joint leaks visibly during pressure testing rather than passing quietly and failing later. On a 4 inch three-port tee like the 95615 that is practical insurance, because it is easy to press two ports and miss the 3 inch branch on a crowded run.
7) What part number do I order for the Viega 4 x 4 x 3 stainless MegaPress tee?
Order Viega part number 95615. That number covers the 304 stainless MegaPress tee in 4 inch x 4 inch x 3 inch, and it is made in Germany.
8) Is this fitting suitable for standardizing repairs across a large facility?
For an MRO or plant maintenance program, press fittings like this 304 stainless MegaPress tee let a crew branch a 4 inch line down to 3 inch without hot work, which usually means no welding permit and no fire watch. Keeping one press tool with 4 inch and 3 inch rings on the truck covers the size range this fitting needs.
