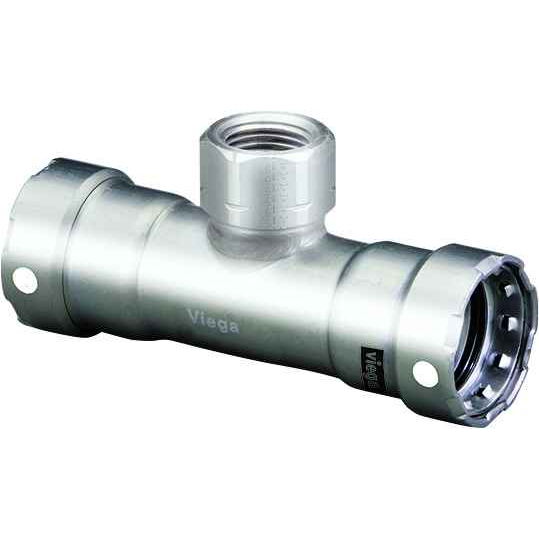

95185 Viega MegaPress tee Smart Connect technology 304 stainless steel, 3/4'' x 3/4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 3/4'' x 3/4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 4.575"
- Product Height:
- 1.496"
- Product Weight:
- 0.551 lbs
- Product Width:
- 2.327"
- Product Material:
- 304 stainless steel
Viega 95185 – Frequently Asked Questions
1) Does the Viega 95185 MegaPress tee have three press ends, or is one of them threaded?
Two press ends and one threaded branch. The 95185 is configured P1 x P2 x FPT, meaning the run is press-to-press and the branch is female pipe thread. If you need all three connections pressed, this is the wrong tee for that joint, and you want an all-press MegaPress tee instead.
2) What pipe size does the Viega MegaPress 95185 tee fit?
It is a 3/4 inch tee throughout, 3/4 x 3/4 x 3/4. Both press ends take 3/4 inch pipe and the branch is a 3/4 inch female thread, so there is no size reduction anywhere in the fitting.
3) Can I use the Viega 95185 to drop a gauge, valve or sensor off a 3/4 inch line?
That is exactly what the FPT branch is for. The run presses into the existing 3/4 inch line and the 3/4 inch female threaded outlet takes a nipple, gauge, drain or threaded valve directly, so you do not need a separate press-by-thread adapter at the branch.
4) What is Smart Connect on the Viega 95185 MegaPress tee and why does it matter on a punch list?
Smart Connect is Viega's unpressed-connection feature: it is built into the MegaPress 95185 so that a joint left unpressed makes itself obvious during pressure testing rather than passing inspection and failing later. On a large job with dozens of joints, that is the difference between finding the miss at test and finding it above a finished ceiling.
5) Is the Viega 95185 tee stainless or carbon steel, and will it hold up in a wet or corrosive mechanical room?
The 95185 is 304 stainless steel, body and all. That is the corrosion-resistant version of MegaPress rather than the carbon steel one, so it suits damp mechanical spaces and service lines where a zinc-nickel coated carbon fitting would be the lesser choice. Match the fitting metallurgy to the piping system you are tying into.
6) How much room do I need to fit a 3/4 inch MegaPress stainless tee between hangers?
The 95185 measures 4.575 inches long, 2.327 inches wide and 1.496 inches high, and weighs 0.551 lbs. Lay that out against your hanger spacing and remember a press tool jaw needs clearance around each press end on top of the fitting's own footprint.
7) What exact part number should I order for a 3/4 inch Viega MegaPress stainless tee with a threaded branch?
Viega 95185. That is the manufacturer part number for the 304 stainless MegaPress tee, 3/4 x 3/4 x 3/4, press by press by female thread. Quote it as 95185 and there is no second configuration under that number to get confused with.
