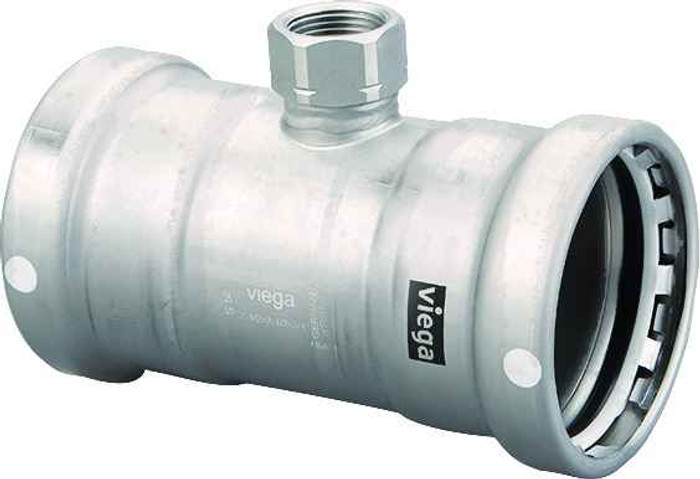

95630 Viega MegaPress tee Smart Connect technology 304 stainless steel, 4'' x 4'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 4'' x 4'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 9.449"
- Product Height:
- 5.193"
- Product Weight:
- 5.036 lbs
- Product Width:
- 5.941"
- Product Material:
- 304 stainless steel
Viega 95630 – Frequently Asked Questions
1) What are the three connections on the Viega MegaPress 95630 tee?
The 95630 is a 4 inch x 4 inch x 3/4 inch tee with a P1 x P2 x FPT configuration: the two 4 inch run ends are press connections and the 3/4 inch branch is female pipe thread. So the run presses onto 4 inch carbon or black steel pipe and the branch takes a male-threaded nipple, gauge, sensor well, or drain valve.
2) Can I press this Viega tee onto 4 inch steel pipe without welding or threading?
That is the point of it. Both 4 inch ends of the 95630 are press ends, so the run is made cold with a press tool and jaw, no welding, no threading, no hot work permit. Only the 3/4 inch branch is threaded, and that is a female thread for whatever you are landing there.
3) I need a full-size 4 inch branch, not 3/4 inch. Is this the right tee?
No. The 95630 reduces the branch to a 3/4 inch female thread, so it is for taking off a gauge, sensor, drain, or small service line from a 4 inch main. For a 4 inch branch you need a different MegaPress tee configuration, not this one.
4) Is the Viega 95630 MegaPress tee stainless or carbon steel, and what pipe does that suit?
The fitting body is 304 stainless steel. Stainless MegaPress bodies are used where the carbon steel version is not appropriate for the medium, while the press ends still join standard steel pipe. If your spec calls out a carbon steel (zinc-nickel coated) MegaPress fitting instead, this is not that part.
5) What does Smart Connect mean on a Viega MegaPress fitting?
Smart Connect is Viega's unpressed-connection feature: an unpressed fitting deliberately leaks during pressure test so the installer finds the joint before the system is charged and closed in. On a 4 inch press like the 95630 that matters, because a missed press on a large main is expensive to chase later.
