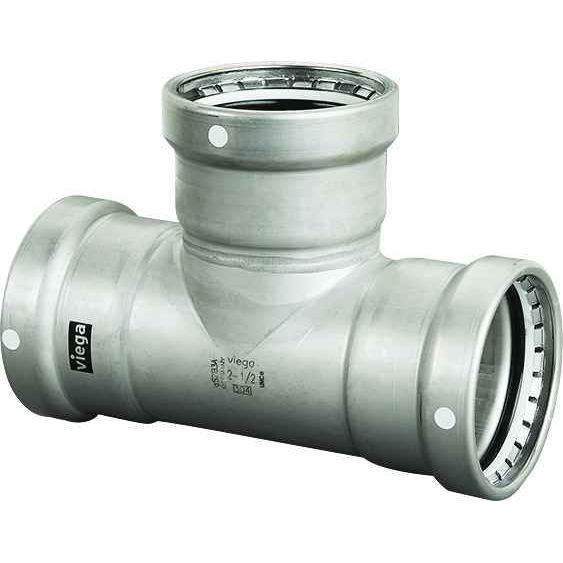

95570 Viega MegaPress tee Smart Connect technology 304 stainless steel, 4'' x 4'' x 4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 4'' x 4'' x 4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 12.795"
- Product Height:
- 5.193"
- Product Weight:
- 8.232 lbs
- Product Width:
- 10.063"
- Product Material:
- 304 stainless steel
Viega 95570 – Frequently Asked Questions
1) Is the Viega MegaPress 95570 tee a 4 inch run with a full-size 4 inch branch?
Yes. The 95570 MegaPress tee is 4 x 4 x 4 inches, so the branch is the same size as the run and no reducing bushing is needed. All three outlets are press connections (P1 x P2 x P3), so each end gets pressed with the appropriate MegaPress jaw or ring for 4 inch.
2) What pipe does a 4 inch MegaPress stainless tee connect to?
It presses onto 4 inch black, galvanized or stainless schedule pipe. The fitting body itself is 304 stainless steel, which is what lets it be used on stainless pipe as well as carbon steel. Every one of the three outlets is a press end, so there is no threading or welding on the job.
3) Do I need to allow extra room in the ceiling for a 4 inch MegaPress tee?
Plan the space from the fitting envelope: the 95570 tee measures 12.795 x 10.063 x 5.193 inches. That is a large body compared with a threaded or welded tee of the same pipe size, so check clearance to joists, walls and adjacent runs before you set your hangers, and leave room for the press tool jaw to swing around each outlet.
4) What does Smart Connect technology do on this MegaPress tee?
Smart Connect is Viega's unpressed-connection feature: it lets a joint that has not been pressed leak noticeably during pressure testing, so an installer can find and press the missed connection before the system is put into service. On a 4 x 4 x 4 tee with three separate press ends, that matters more than on a coupling.
5) Is the MegaPress 95570 tee stainless steel all the way through?
The fitting body is 304 stainless steel. That is the grade specified for both the material type and the product material, so it suits stainless pipe runs and jobs where a carbon steel fitting would not be accepted.
6) Where is the Viega 95570 MegaPress tee made, and what part number do I order?
Order it as Viega part 95570, a MegaPress 304 stainless tee in 4 x 4 x 4 inch. It is made in Germany.
