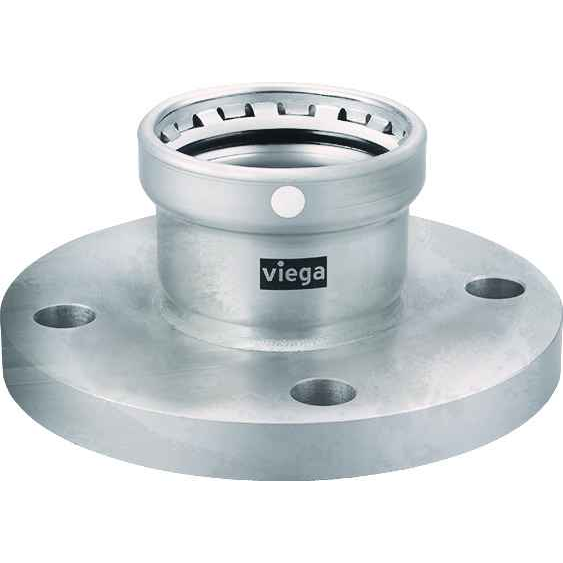

95730 Viega MegaPress flange Smart Connect technology 304 stainless steel, 4''
Manufacturer Resources
Product Specs
- Connection Type:
- P
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 9.055"
- Product Height:
- 4.835"
- Product Weight:
- 13.63 lbs
- Product Width:
- 9.055"
- Product Material:
- 304 stainless steel
Viega 95730 – Frequently Asked Questions
1) Is the Viega 95730 MegaPress flange stainless or carbon steel?
It is 304 stainless steel throughout. That matters on the jobsite because a stainless MegaPress fitting is intended for stainless pipe, not black iron or carbon steel pipe, and mixing the two in a press joint is not how the system is built.
2) Does the Viega 95730 need threading or welding to install?
No. It is a press fitting, so the pipe side goes together cold with a MegaPress tool and jaw, no threading, no welding, no hot work permit. The flange face itself still bolts up conventionally with a gasket and bolt set, which are separate items.
3) What are the dimensions of the Viega 95730 MegaPress flange for layout and clearance?
The fitting measures 9.055 inches in length, 9.055 inches in width, and 4.835 inches in height. Use the 9.055 inch across-the-face figure when you are checking clearance to a wall, a neighbouring run, or structure, and remember the press tool jaw needs its own swing room around the press collar on top of that.
4) What is Smart Connect on this Viega MegaPress flange and why does it matter on a large job?
Smart Connect is Viega's unpressed-joint feature: an unpressed connection leaks visibly during pressure test so it gets found before the system goes into service. On a run of 4 inch stainless with dozens of joints, that is the difference between catching a miss at test and chasing it after the ceiling closes.
