GENERAC 9855 9855 - 50 Amp Hom...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,566.54

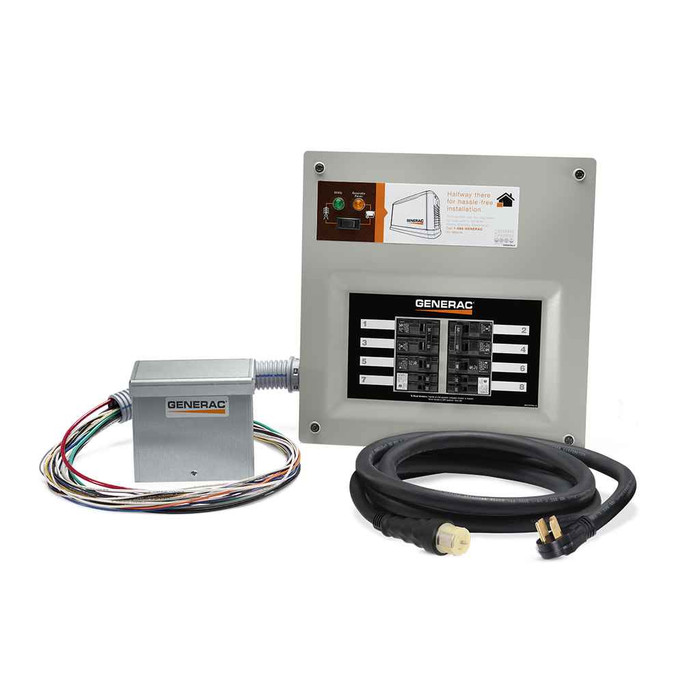

GENERAC 9855 9855 - 50 Amp HomeLink MTS Kit (alum PIB), 10-16 circuits, flush or surface mount, NEMA 1

GENERAC 9855 9855 - 50 Amp HomeLink MTS Kit (alum PIB), 10-16 circuits, flush or surface mount, NEMA 1

(No reviews yet) Write a Review

Model: 9855
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,566.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
9855 - 50 Amp HomeLink MTS Kit (alum PIB), 10-16 circuits, flush or surface mount, NEMA 1

  • Features

    • Powers hard-wired circuits – Directly powers hard-wired appliances such as your furnace, well pump and lights
    • Electronic Rocker Switch – Easily switches from utility to generator power with the simple push of a button
    • Universal – Compatible with any portable generator with GFCI protected outlets
    • Safe – Prevents dangerous back-feeding to avoid injuring utility line workers
    • Power indicator lights – Displays when you have utility or generator power present
    • Pre-wired Kits Available – For quick and easy install
    • Versatile – Can be upgraded later for use with a Generac Home Standby generator (max 11kw)
    • Easy to maintain and expand – Interchangeable type circuit breakers make it easy to reconfigure, replace or expand circuits in your switch
    • 50 Amp Indoor Transfer Switch Kit

Manufacturer Resources

Product Specs

Country Of Origin:
United States
Exterior Lighting Product Type:
Post and Lamp Sets
Restrictions:
No
Department:
Electrical
Product Group:
Other
Product Subgroup:
Miscellaneous

Generac 9855 – Frequently Asked Questions

1) Will the Generac 9855 transfer switch work with any portable generator I already own?
The 9855 HomeLink manual transfer switch kit works with any portable generator that has GFCI protected outlets, and it is sized at 50 amps. It can also be upgraded later to run off a Generac home standby unit up to 11kW, so a property owner who starts with a portable and moves to a standby generator later does not have to replace the switch.
2) How many circuits can the Generac 9855 HomeLink kit cover?
The 9855 kit handles 10 to 16 circuits. That is enough to carry the hard-wired loads people actually care about during an outage: furnace, well pump, and lighting circuits are powered directly rather than through extension cords. If a building needs more than 16 circuits backed up, this kit is not the right size.
3) Can the Generac 9855 transfer switch be mounted flush in a finished wall?
Both flush and surface mounting are supported on the 9855, so it can go into a finished wall cavity or sit on the surface of a basement or utility room wall. The enclosure is NEMA 1, which is an indoor rating, so it belongs inside. Do not hang it on an exterior wall or in a damp location.
4) Is the Generac 9855 an automatic transfer switch or do I have to throw it myself?
It is a manual transfer switch, not automatic. Changing from utility to generator power is done with an electronic rocker switch, a single button push rather than a lever per circuit. Indicator lights on the front show whether utility or generator power is present, so whoever is on site can see which source is feeding the panel before switching. If the requirement is that the building transfers with nobody present, a manual transfer switch is the wrong product type and an automatic transfer switch is needed instead.
5) Does a Generac HomeLink transfer switch prevent back-feeding into the utility line?
Yes, that is the reason a transfer switch is required rather than a suicide cord. The 9855 isolates the generator from the utility so power cannot back-feed onto the incoming line and injure a lineman working the outage. That isolation is the code reason an inspector will fail a generator hookup that does not have one.
6) Can I change or add circuits in the Generac 9855 later?
The 9855 uses interchangeable type circuit breakers, so circuits can be reconfigured, replaced, or expanded after the initial install without swapping the switch. For a property manager who backs up the furnace and well pump first and wants to add a sump or a refrigerator circuit later, that work is a breaker change inside the existing enclosure.
7) What does the alum PIB mean on the Generac 9855 kit?
PIB is the power inlet box, the outdoor receptacle the generator cord plugs into, and on the 9855 it is the aluminum version. It ships as part of the kit, so the inlet does not have to be sourced separately. Pre-wired kit versions are offered for a faster install.
8) What model number do I order for the 50 amp Generac HomeLink manual transfer switch kit?
The part is Generac 9855, and the manufacturer part number is the same: 9855. That covers the 50 amp HomeLink MTS kit with the aluminum power inlet box, 10 to 16 circuits, NEMA 1 enclosure, flush or surface mount. There is one configuration, so there is no suffix or option code to add to the order.
9) Is the Generac 9855 transfer switch made in the USA?
Country of origin on the 9855 HomeLink kit is the United States. For public agency, school district, and other institutional buyers working under domestic sourcing requirements, that is the line that matters on the submittal.
How fast can I get the Generac 9855 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Generac 9855 come with a warranty?
Absolutely. The Generac 9855 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
