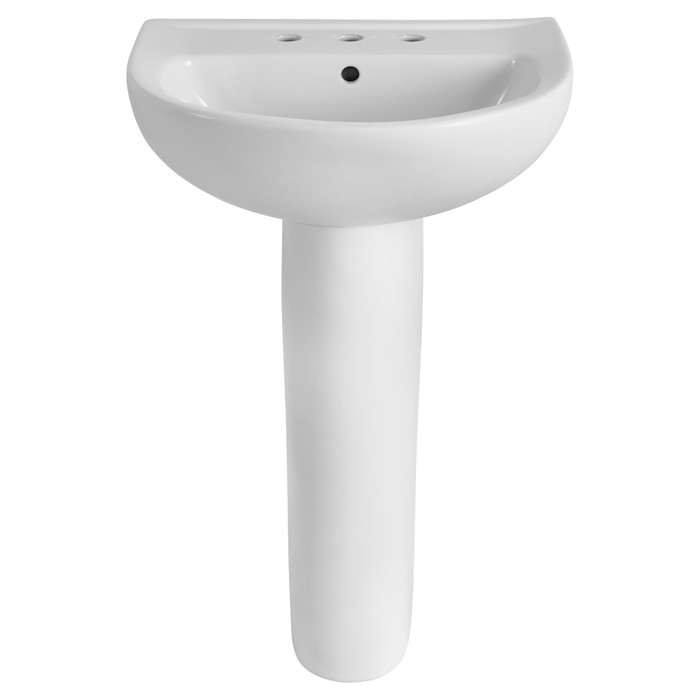

American Standard 22-Inch Evolution 8-Inch Widespread Pedestal Sink Top and Leg Combination - AMS-467800

American Standard 22-Inch Evolution 8-Inch Widespread Pedestal Sink Top and Leg Combination - AMS-467800

(No reviews yet) Write a Review

Model: 467800.02
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$206.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
22-Inch Evolution 8-Inch Widespread Pedestal Sink Top and Leg Combination
  • Vitreous china lavatory and pedestal
  • Rear overflow
  • Faucet ledge with generous shelf area
  • Supplied with mounting kit
  • Bowl sizes:
  • 18-1/4 in (464 mm) wide
  • 11 in (279 mm) front to back
  • 6 in (152 mm) deep
  • Nominal Dimensions:
  • 22 in x 17-1/2 in x 34-1/4 in (558 mm x 444 mm x 869 mm)

Manufacturer Resources

Product Specs

Product Type:
Pedestal Sink
Product Group:
Washroom/Bath
Product Subgroup:
Sinks
Department:
Plumbing

American Standard 467800.02 – Frequently Asked Questions

1) What faucet drilling does the American Standard Evolution 22-inch pedestal sink top take?
The Evolution 22-inch pedestal lavatory is drilled for 8-inch widespread faucets, so you need a three-hole widespread trim set with separate hot and cold handles. A single-hole or 4-inch centerset faucet will not cover the drilling correctly.
2) How much wall space and height do I need to plan for this American Standard pedestal sink?
Plan on nominal dimensions of 22 in x 17-1/2 in x 34-1/4 in (558 mm x 444 mm x 869 mm) for the top and leg combination. That 34-1/4 in figure is the finished rim height off the floor, so set your supply stops and trap arm low enough to stay hidden behind the pedestal column.
3) Does the American Standard 467800 pedestal sink come with the pedestal leg, or is that sold separately?
It is a top and leg combination, so the vitreous china lavatory and the pedestal both come together, along with a mounting kit. You still supply the faucet, the drain assembly, the P-trap and the supply lines.
4) Does a pedestal sink like this need wall blocking, or does the leg carry the weight?
Both. The 467800 ships with a mounting kit for securing the china to the wall; the pedestal leg steadies the front and hides the trap and supplies, but it is not the only support. Get blocking in the wall before you close it up, because the china bowl still hangs off the wall fasteners.
5) How big is the actual bowl on the Evolution 22-inch pedestal lavatory?
The bowl runs 18-1/4 in (464 mm) wide, 11 in (279 mm) front to back, and 6 in (152 mm) deep. That is a shallow basin by commercial standards, fine for handwashing in a powder room or guest bath but not deep enough to fill a mop bucket or wash large items.
6) Does this pedestal sink have an overflow?
Yes, a rear overflow is built into the china. That means you need an overflow-style grid or pop-up drain, not the solid non-overflow type used on vessel bowls.
7) Is there anywhere to set soap or a toothbrush holder on this sink?
The Evolution top has a faucet ledge with a generous shelf area behind the bowl, which is where the widespread trim mounts and where there is room left over for soap. It is one of the reasons this model gets picked over narrower pedestal tops with no deck to speak of.
