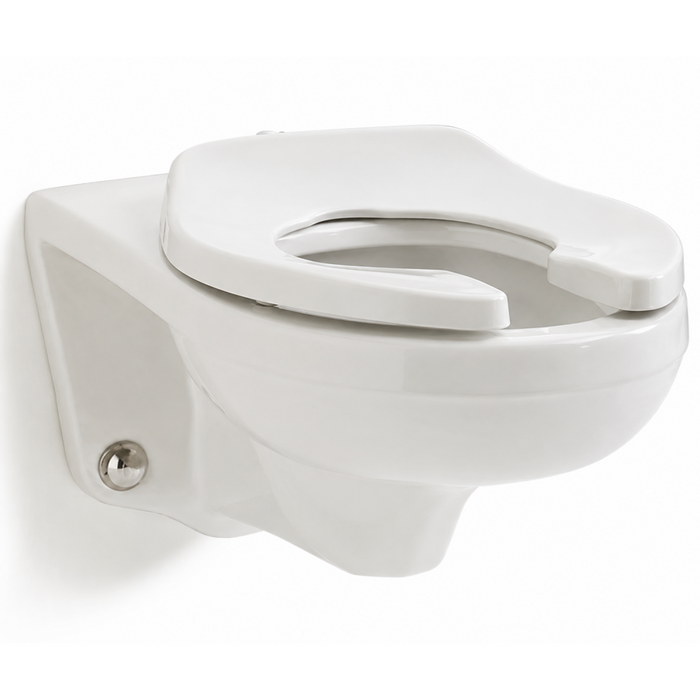

American Standard Afwall ADA Retrofit 1.28 – 1.6 gpf (4.8 – 6.0 Lpf) Top Spud Elongated Wall-Hung EverClean Bowl With Bedpan Lugs - AMS-2296019EC

American Standard Afwall ADA Retrofit 1.28 – 1.6 gpf (4.8 – 6.0 Lpf) Top Spud Elongated Wall-Hung EverClean Bowl With Bedpan Lugs - AMS-2296019EC

(No reviews yet) Write a Review

Model: 2296019EC.020
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$466.36
$455.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Afwall ADA Retrofit 1.28 – 1.6 gpf (4.8 – 6.0 Lpf) Top Spud Elongated Wall-Hung EverClean Bowl With Bedpan Lugs
  • HIGH-EFFICIENCY COMMERCIAL TOILET: Powerful flush uses between 1.28 and 1.6 gpf (4.8/6.0Lpf) and features a top spud that can be paired with American Standard manual or Selectronic flush valve, sold separately.
  • ADA COMPLIANT: With a 16 1/8-in. rim height, there is no need to modify the existing carrier or through-wall supply if centerline of current outlet is 5 ¼-in. (133 mm) above finished floor
  • WALL-MOUNT ELONGATED BOWL: Top spud flushometer valve toilet bowl with EverClean to inhibit the growth of bacteria, mold, and mildew
  • GREAT PERFORMANCE: Features 1 ½-in. (38 mm) inlet spud, condensation channel, 2 1/8-in. (54 mm) fully-glazed trapway, bedpan lugs. Includes flush valve rough-in adapter kit.
  • SEAT SOLD SEPARATELY: We recommend American Standard seat model 5901100.020

Manufacturer Resources

Product Specs

Product Type:
Bowl
Product Group:
Commercial
Product Subgroup:
Toilet
Family:
AFWALL
Luxury/Non Luxury:
Non Luxury
Residential Commercial:
Commercial
Product Length:
17.813
Product Height:
26.875
Product Weight:
55.951
Product Width:
15.125
Department:
Plumbing
Product Color:
White

American Standard 2296019EC.020 – Frequently Asked Questions

1) Is this a top spud or back spud wall-hung toilet?
Top spud. The 2296019EC Afwall bowl takes the flushometer connection on top of the bowl, so it pairs with an exposed valve coming down the wall. A back spud bowl is the one to specify when the valve is concealed behind the wall; this bowl will not work in that configuration.
2) Will this toilet work on a 1.28 gpf flush valve, or does it need 1.6?
Either. The Afwall 2296019EC is rated to flush between 1.28 and 1.6 gpf (4.8 to 6.0 Lpf), so it works with a 1.28 gpf water-sense valve or a standard 1.6 gpf valve. That flexibility matters if you are standardizing valves across a building that has a mix of both.
3) What are bedpan lugs for, and does this Afwall bowl have them?
It does. Bedpan lugs are two raised pads on the bowl rim that hold a bedpan steady for rinsing, which is why healthcare and long-term care facilities specify them. If you are buying for a patient room or a skilled nursing floor, this is the version you want.
4) What keeps this wall-hung bowl from clogging in a high-traffic restroom?
The trapway is 2-1/8 in. (54 mm) and fully glazed end to end, so waste and paper clear without catching on raw china. The EverClean surface inhibits growth of bacteria, mold and mildew on the glaze, which cuts down how hard janitorial has to work on it. There is also a condensation channel to keep sweat off the floor in humid restrooms.
5) What model number do I order for the white elongated Afwall ADA retrofit bowl?
Order American Standard 2296019EC.020. The .020 suffix is the finish code on the order, and it is the elongated, top spud, EverClean, bedpan-lug version of the Afwall in the ADA retrofit rim height.
6) Is the Afwall 2296019EC suitable for a residential bathroom?
It is built as a commercial fixture, not a residential one. There is no tank option here, it requires a flushometer valve and the supply pressure and pipe size a flushometer needs, and it hangs on a wall carrier. For a house you would be looking at a tank-type toilet instead.
