American Standard Bedpan Washer Diverter Assembly With Offset Tube - AMS-6047815

American Standard Bedpan Washer Diverter Assembly With Offset Tube - AMS-6047815

(No reviews yet) Write a Review

Model: 6047815.002
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$370.74
$357.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

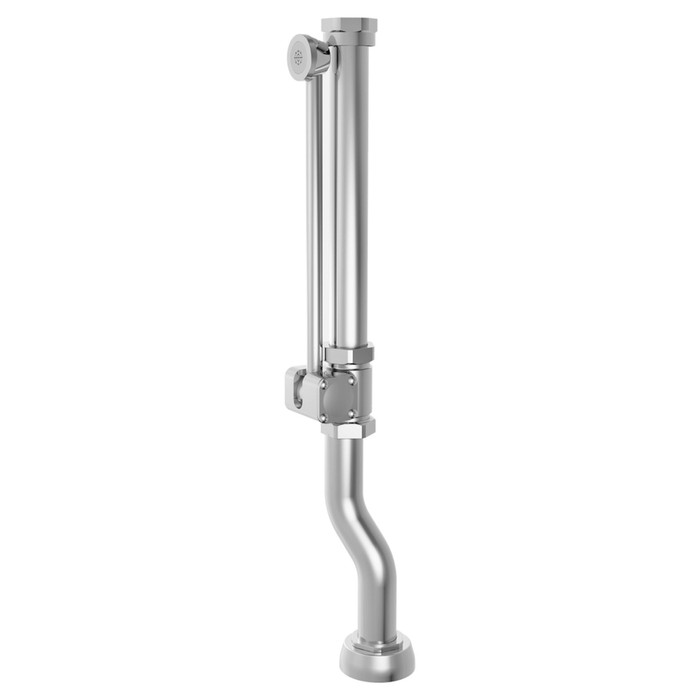

Bedpan Washer Diverter Assembly With Offset Tube
  • 1-1/2" offset flush tube for installation with grab bar above the toilet
  • Operates at 1.28 & 1.6 gpf
  • Solid brass construction
  • Counter balanced pivot assembly keeps spray arm in last position
  • Includes wall support
  • Includes 1-1/2" spud, spud coupling and chemical resistant EPDM vacuum breaker

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Diverter Assembly
Product Group:
Washroom/Bath Accessories
Product Subgroup:
Parts and Accessories
Department:
Plumbing
Parts and Accessories Type:
Diverter
Application:
Toilet
Product Color:
Chrome
Country of Origin:
China

American Standard 6047815.002 – Frequently Asked Questions

1) Why does the American Standard 6047815 bedpan washer use an offset flush tube?
The offset tube clears a grab bar mounted above the toilet. On accessible or patient-room openings where the rear grab bar sits right where a straight flush tube would run, the 1-1/2 inch offset routes around it so the diverter and spray arm can still be installed. If your opening has no grab bar conflict, a straight-tube bedpan washer diverter will do the same job.
2) What flush volume toilets will the 6047815 bedpan washer diverter work with?
It operates at both 1.28 and 1.6 gpf, so it suits current low-consumption flushometer water closets as well as older 1.6 gallon fixtures. That covers most hospital and long-term care bowls in service today.
3) What size spud connection does this bedpan washer diverter assembly use?
It uses a 1-1/2 inch spud, and the spud plus spud coupling come with the assembly. The flush tube is 1-1/2 inch as well, so it ties a standard 1-1/2 inch flushometer outlet to a 1-1/2 inch top-spud bowl.
4) What exactly is included in the American Standard 6047815 kit besides the diverter?
You get the diverter with the offset flush tube, the wall support, the 1-1/2 inch spud and spud coupling, and the EPDM vacuum breaker. What is not part of it is the flushometer valve itself or the water closet, so those get specified separately for the job.
5) Does the bedpan washer diverter come with a vacuum breaker, or do I order one separately?
A chemical resistant EPDM vacuum breaker is part of the assembly. That matters in a healthcare setting where the spray arm can sit below the flood rim and where disinfectants get used around the fixture daily, so the elastomer has to stand up to them.
6) Does the spray arm on this bedpan washer stay put, or does it swing back down on its own?
A counter balanced pivot assembly holds the spray arm wherever the caregiver leaves it. So it stays parked out of the way over the bowl between uses instead of dropping back into the fixture.
7) What finish and part number do I order for the American Standard bedpan washer diverter with offset tube?
Order model 6047815.002, which is the chrome finish. Chrome is the only finish offered on this diverter assembly, so there is no second finish suffix to pick.
8) Can I add a bedpan washer to an existing water closet, or does it need a special fixture?
This is a diverter assembly that mounts between the flush valve and the bowl on a toilet application, adding bedpan rinsing to a water closet already in place. It needs a top-spud bowl taking a 1-1/2 inch spud and a flush valve operating at 1.28 or 1.6 gpf, plus wall backing for the included support bracket.
9) Is this bedpan washer diverter durable enough for daily hospital use?
Construction is solid brass throughout the diverter body, which is what stands up to constant cycling and the cleaning chemicals in a patient washroom. The vacuum breaker seal is chemical resistant EPDM for the same reason.
