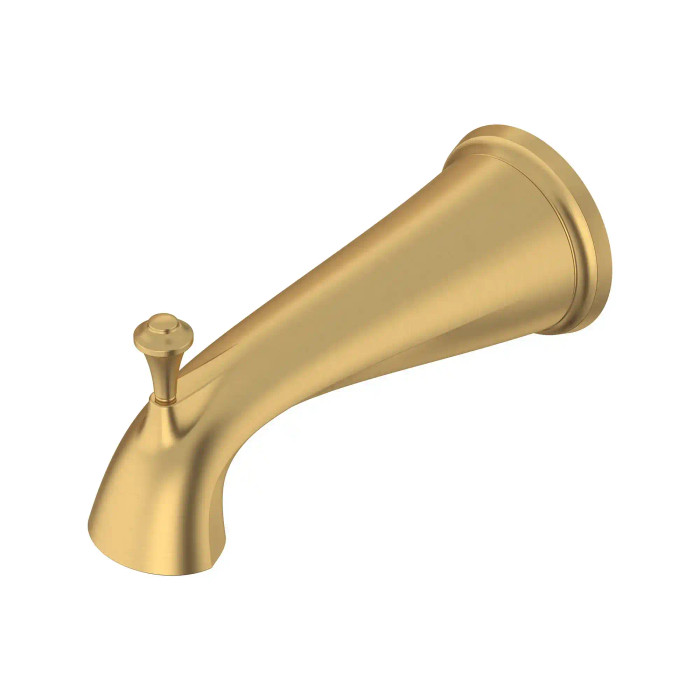

Delancey 8-1/8-Inch Slip-On Diverter Tub Spout
- For 1/2" copper pipe
- All metal construction
- 7-3/4" length to center of outlet
- Slip-On connection
Manufacturer Resources
Spec Sheet
Product Specs
- Product Type:
- Tub Spout
- Family:
- DELANCEY
- Luxury/Non Luxury:
- Luxury
- Product Group:
- Washroom/Bath
- Product Subgroup:
- Bathtubs
- Residential Commercial:
- Residential
- Product Length:
- 8.858
- Product Height:
- 4.37
- Product Weight:
- 1.83
- Product Width:
- 4.488
- Department:
- Plumbing
- Country of Origin:
- China
American Standard 8888105.013 – Frequently Asked Questions
1) Will the American Standard Delancey diverter tub spout fit 1/2 inch copper pipe?
Yes. The Delancey 8-1/8 inch diverter spout is built for 1/2 inch copper pipe using a slip-on connection, meaning it slides over the stub-out and locks down with a set screw rather than threading on. If your existing stub-out is a threaded nipple (IPS), a slip-on spout is the wrong style for that rough-in.
2) Does this Delancey tub spout have a diverter for a shower head?
It does. The Delancey 8888105 is the diverter version, so the lift knob on top sends water up to the shower head and drops back to the tub when the flow stops. For a tub-only installation with no shower riser, you want a non-diverter spout instead.
3) Can I swap my old tub spout for this one without opening the wall?
If the existing stub-out is 1/2 inch copper, yes, the change is a trim swap: pull the old spout and slide the Delancey on. If the old spout threads off a nipple, or the copper stub-out is cut too short or too long for a 7-3/4 inch reach spout to sit tight to the wall, the rough-in has to be corrected first.
4) How far does the Delancey slip-on tub spout reach from the wall?
The reach is 7-3/4 inches to the center of the outlet, so water drops well clear of most tub aprons. Overall the spout runs 8.858 inches long, 4.488 inches wide and 4.37 inches high, which is worth checking against tile ledges or a tight corner before you set it.
5) Is the Delancey diverter spout plastic or metal inside?
All metal construction, not a metal-finished plastic body. It weighs 1.83 pounds, which is consistent with a solid metal spout, and that matters in a rental or multi-family unit where a plastic diverter knob is the usual failure point.
6) What finishes does the American Standard Delancey 8888105 tub spout come in?
Four finishes, each its own part number: Chrome (8888105.002), Polished Nickel (8888105.013), Brushed Nickel (8888105.295), and Brushed Cool Sunrise (8888105.GN0). Order by the suffix if you are matching existing Delancey trim on other openings in the building.
7) Is this Delancey spout suitable for a commercial or institutional bath?
American Standard classifies the Delancey 8888105 as a residential product in its luxury trim line. It is a fit for apartments, condos and single-family baths; for heavy-use institutional washrooms, spec a fixture rated for commercial service.
