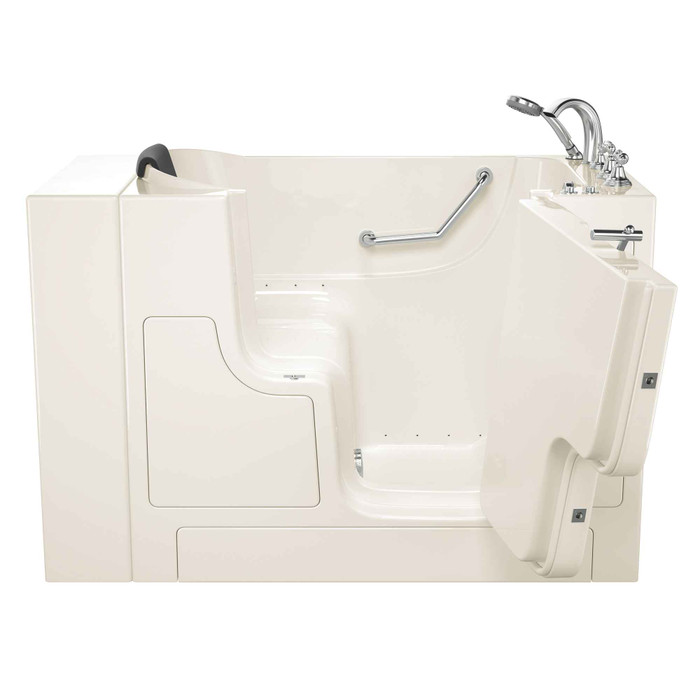

American Standard Gelcoat Premium Series 30 x 52 -Inch Walk-in Tub With Air Spa System - Right-Hand Drain With Faucet - AMS-3052OD.109.AR

The Gelcoat Premium Series walk-in tub is a 30 x 52 inch bath, with overall product dimensions of 54 inches long, 32 inches wide, and 47 inches high. That means it is shorter than the 60-inch alcove most standard tubs sit in, so you will have framing and wall to close in on one end after the old tub comes out. Plan on a filler wall or an extension panel, and account for the 47 inch height when checking window sills and any surround above the tub.

This is the right-hand configuration: the door, the drain, and the deck-mount faucet are all on the right side of the bath. Stand at the foot of the tub looking at it from the room, and the plumbing wall needs to be on that right end. American Standard builds the same Gelcoat Premium Series bath in a left-hand door/drain version, so if your existing drain is on the opposite end of the alcove, order the left-hand model instead rather than trying to re-plumb.

The Air Spa system runs a variable speed heated blower feeding 26 air jets, plus an automatic purge cycle, so it is a powered tub and needs an electrical supply at the tub location wired to code for the blower. On the drain side, the patented Quick Drain is built in and requires no additional plumbing; it pumps the tub empty in under 2 minutes so the door can be opened safely. Your rough-in is the standard supply and waste for the bath, plus power.

The full-sized watertight door opens outward and is a partial-transfer door with a low threshold for step-in entry. Inside there is a contoured chair-height built-in seat, a textured bath floor, a built-in safety grab bar, and a neck rest. Because the door swings out, leave clear floor space in front of the tub for the swing and for a transfer.

Two: White (part 3052OD.109.ARW-PC) and Linen (part 3052OD.109.ARL-PC). Both are the right-hand door and drain version of the 30 x 52 bath, both in the hi-gloss Gelcoat shell, and both ship with polished chrome drain, overflow, and grab bar. The color choice is the shell only, not the trim.

No, the faucet is included on this model. It ships with a premium fast-fill deck-mount faucet and a handheld showering wand, along with a neck rest and a polished chrome drain and overflow. The faucet deck is on the right-hand side with the door and drain, so your supply lines need to land on that end.

This one is an air system: 26 air jets fed by a variable speed heated blower push thousands of small bubbles through the water for a softer, effervescent massage, and an automatic purge cycle clears the lines after use. A water jet whirlpool drives a harder, more targeted stream instead. If the user wants gentle overall circulation and easier cleaning, the air spa is the one to pick; if they want deep pressure on a specific joint, look at a water jet model.

The Gelcoat Premium Series walk-in tub is classified as a residential bath. For senior housing, assisted living, or any multi-family or healthcare specification, check your facility's own accessibility and equipment requirements before specifying it, since this one is built and catalogued for residential use.
