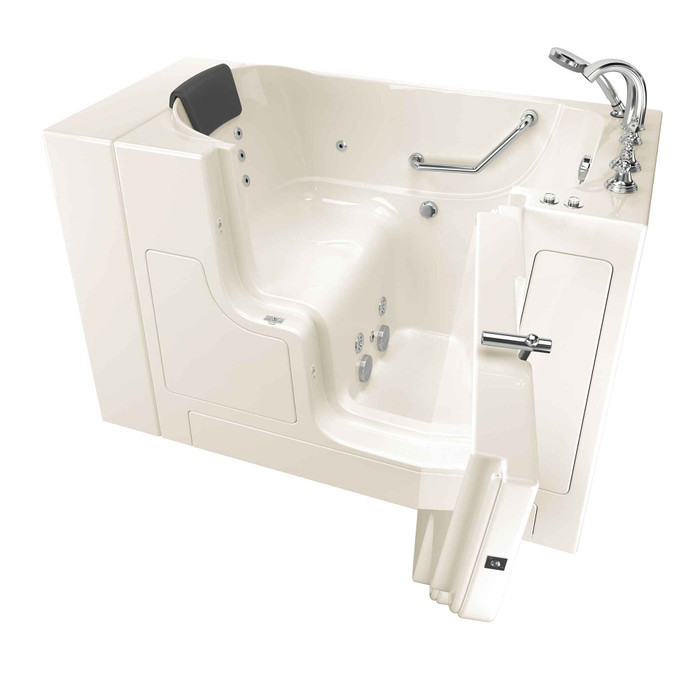

American Standard Gelcoat Premium Series 30 x 52 -Inch Walk-in Tub With Whirlpool System - Right-Hand Drain With Faucet - AMS-3052OD.109.WR

On model 3052OD.109.WR the door, drain and faucet deck are all on the right-hand side of the bath. If your waste line and valve rough-in sit on the left, this configuration will fight you. American Standard builds the same Gelcoat Premium walk-in tub in a left-hand door/drain version, so order that rather than trying to reroute. Stand at the tub facing it to confirm which hand you actually have.

No. The patented Quick Drain is self-contained and requires no additional plumbing beyond the normal waste connection. Once activated it pumps the tub empty in under 2 minutes so the door can be opened safely. Plan for power at the tub, since the whirlpool pump, in-line heater and ozone system are all electrical.

No. This model includes a premium fast-fill faucet and a handheld showering wand, plus a neck rest and a polished chrome drain, overflow and safety grab bar. The faucet mounts on the deck at the right-hand end. Note the deck is drilled for that faucet, so it is not the model to pick if you intend to run a wall-mounted valve.

This one is the water-jet setup: 12 water jets, an in-line heater to hold bath temperature, a Legs-Only Massage mode, and an Ozone Self-Cleaning Sanitation System to keep the circulating lines clean. Water jets give a deeper, more targeted massage and the heater matters on a long soak. Air systems blow bubbles through the whole floor for a lighter, all-over feel and have no recirculating water line. If the user is after therapeutic pressure on legs and back, the whirlpool is the right pick.

American Standard classifies the Gelcoat Premium walk-in tub as a residential, non-luxury product. It suits single-family homes, aging-in-place remodels and independent-living units. For assisted-living or institutional bathing with attendant transfer, look at a commercial-rated bathing system instead, since the door here is a partial-transfer design, not a full-transfer one.

Entry is through a full-sized watertight door that swings outward over a low threshold, so the user steps in rather than climbing over a tub wall. Inside there is a contoured chair-height built-in seat that makes sitting down and standing back up easier, a built-in safety grab bar, and a textured bath floor to cut slip risk. The seat contour also opens up soaking room compared with a flat bench.

Two shell colors: White and Linen. The chrome trim package, drain, overflow and grab bar are polished chrome on both, so the color choice is purely the gelcoat shell. White matches most standard white toilets and lavatories; Linen is the softer off-white for older biscuit-toned suites. Hold a sample against your existing fixture if you are trying to blend rather than replace the whole room.

The shell is hi-gloss gelcoat, the same material family used on boat hulls, and it is a thicker, repairable surface. Chips and scratches in gelcoat can be filled and buffed on site instead of requiring a full tub swap, which is what property managers care about in a turnover. Controls are easy-touch push buttons on the deck, so there is little for a tenant to break.
