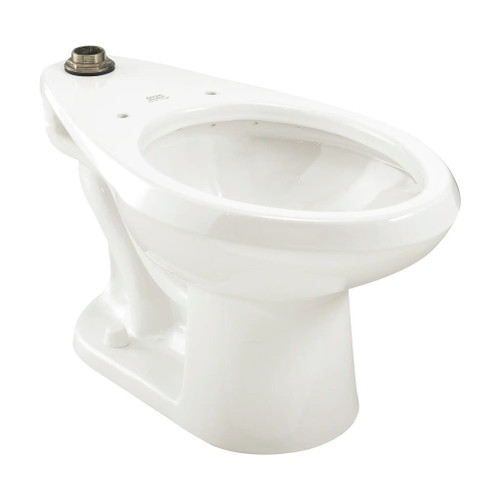

American Standard Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) 15 Height Top Spud Elongated EverClean Bowl Made-in-Mexico - AMS-3451001USMCA

American Standard Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) 15 Height Top Spud Elongated EverClean Bowl Made-in-Mexico - AMS-3451001USMCA

(No reviews yet) Write a Review

Model: 3451001USMCA.020

In Stock (leaves warehouse same day if ordered before 3pm ET)

$202.40
$152.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) 15 Height Top Spud Elongated EverClean Bowl Made-in-Mexico

Manufacturer Resources

Product Specs

Product Type:
Bowl
Product Group:
Commercial
Product Subgroup:
Toilet
Family:
MADERA
Luxury/Non Luxury:
Non Luxury
Residential Commercial:
Commercial
Product Length:
29.5
Product Height:
17.375
Product Weight:
56.65
Product Width:
15.813
Department:
Plumbing
Product Color:
White
Country of Origin:
Mexico

American Standard 3451001USMCA.020 – Frequently Asked Questions

1) Does the American Standard Madera 3451001 bowl come with a flush valve or tank?
No. The Madera 3451001 is a bowl only. It's a top spud, flushometer-style fixture, so you pair it with a separate flush valve rated in the 1.1 to 1.6 gpf (4.2 to 6.0 Lpf) range plus a seat. Budget for the valve, spud connection hardware, seat and floor bolts as separate line items when you price the job.
2) Will the Madera top spud bowl work with my existing back spud flush valve?
No. Top spud and back spud are not interchangeable. This Madera takes the flush valve connection at the top of the bowl, so it needs an exposed flushometer coming down the wall to a top spud connection. If your rough-in is a back spud (valve entering through the wall behind the bowl), you need the back spud version of the Madera instead.
3) Can I run this Madera bowl at 1.28 gpf to meet a water conservation spec?
Yes. The bowl is rated across a 1.1 to 1.6 gpf (4.2 to 6.0 Lpf) range, so the actual consumption is set by the flush valve you pair with it. Spec a 1.28 gpf valve and the fixture performs at 1.28. That range is also why one bowl SKU can cover both a legacy 1.6 gpf building standard and a new high-efficiency retrofit.
4) What are the dimensions and weight of the American Standard Madera 3451001 bowl?
The bowl measures 29.5 x 15.813 x 17.375 inches and weighs 56.65 lbs. That weight matters on the job: it's a two-person set for most crews, and on upper-floor restroom retrofits it's worth checking the freight elevator and staging before a pallet of them arrives.
5) Is the Madera elongated bowl suitable for high-traffic commercial restrooms?
That's exactly what it's built for. The Madera line is American Standard's commercial vitreous china workhorse, and this one is classified commercial rather than residential. The elongated bowl and EverClean surface, which inhibits the growth of stain and odor-causing bacteria on the glaze, are what schools, airports, stadiums and office buildings standardize on.
6) I'm replacing older Madera bowls across a building. Will this one match?
If the existing units are 15 inch height, top spud, elongated Madera bowls in White, this is the same configuration and will look and sit the same in the stall. Where it can differ is flush rate: older bowls may have been paired with 1.6 gpf valves, and this bowl covers 1.1 to 1.6 gpf, so you can keep the existing valves or convert. Confirm your existing units are top spud and not back spud before ordering a fleet quantity.
7) What finish and part number do I order for the Madera 15 inch top spud bowl?
It ships in White only, ordered as American Standard part 3451001USMCA.020. The .020 suffix is the White color code. This one is the Made-in-Mexico production version of the Madera bowl.
