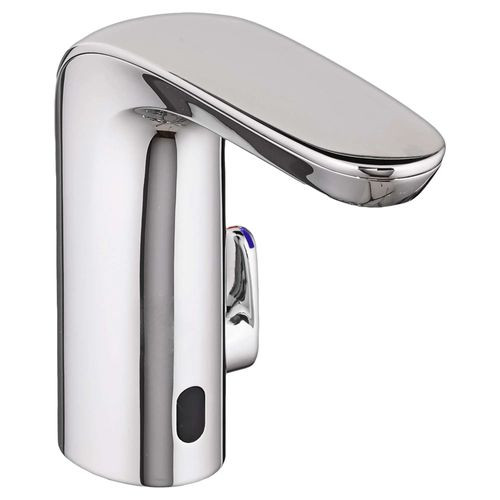

American Standard NextGen Selectronic Touchless Faucet, Base Model With SmarTherm Safety Shut-Off + ADM, 0.5 gpm/1.9 Lpm - AMS-775B305

American Standard NextGen Selectronic Touchless Faucet, Base Model With SmarTherm Safety Shut-Off + ADM, 0.5 gpm/1.9 Lpm - AMS-775B305

(No reviews yet) Write a Review

Model: 775B305.002

In Stock (leaves warehouse same day if ordered before 3pm ET)

$509.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
NextGen Selectronic Touchless Faucet, Base Model With SmarTherm Safety Shut-Off + ADM, 0.5 gpm/1.9 Lpm
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • Touchless operation limits the spread of germs
  • SmarTherm safety shut-off prevents accidental scalding. ASSE 1070 certified
  • Above-deck mixing with removable handle
  • Dual inlets for hot and cold water
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Vandal-resistant 0.5 gpm/1.9 Lpm pressure-compensating multi-laminar spray
  • Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available

Manufacturer Resources

Product Specs

Product Type:
Touchless Faucet
Product Group:
Kitchen
Product Subgroup:
Faucets
Department:
Plumbing

American Standard 775B305.002 – Frequently Asked Questions

1) Does the American Standard 775B305 touchless faucet come with a power supply?
No. The power kit for the NextGen Selectronic 775B305 has to be ordered separately, so plan on adding one to the same order or the faucet will arrive with no way to run it. Everything else about the install is top-down: the faucet mounts from above the deck, and there is no control box to hang underneath the counter.
2) Will the NextGen Selectronic faucet cover a 4 inch or 8 inch centerset sink?
Only with the optional deck plate. The 775B305 is a single-hole faucet body; American Standard offers a deck plate that covers 4 inch (102 mm) or 8 inch (203 mm) centers, and that plate is a separate order. If you are replacing a widespread or centerset faucet on an existing three-hole deck, order the plate at the same time.
3) Does this touchless faucet need a separate thermostatic mixing valve for scald protection?
The 775B305 has SmarTherm safety shut-off built in, certified to ASSE 1070, so the temperature limiting is handled at the faucet rather than by a remote mixing valve. Mixing happens above the deck with a removable handle, which means temperature adjustment and service stay out of the cabinet. It takes dual inlets, hot and cold.
4) What flow rate does the American Standard 775B305 run, and will it meet a low-flow spec?
It is a 0.5 gpm / 1.9 Lpm faucet with a pressure-compensating multi-laminar spray, so the flow holds steady as building pressure moves. The outlet is vandal-resistant, which is the usual requirement in public and institutional restrooms.
5) How does this faucet handle stagnant water in a building with low use?
Auto Purge periodically flushes the line so water does not sit in the faucet, which matters in schools, offices, and any facility with long unoccupied stretches. Combined with the touchless sensor operation, there is no handle for users to contact.
6) Can maintenance service this faucet without getting under the sink?
Yes, and that is the point of the base model design. All serviceable parts are reachable from above, the mixing handle is removable, and there is no below-deck control box to fish out, so a tech is not lying in a cabinet to swap a component.
7) What finishes does the NextGen Selectronic 775B305 come in?
Two: chrome (775B305.002) and brushed nickel (775B305.295). If you are standardizing a floor of restrooms, order by those part numbers so the whole run matches.
