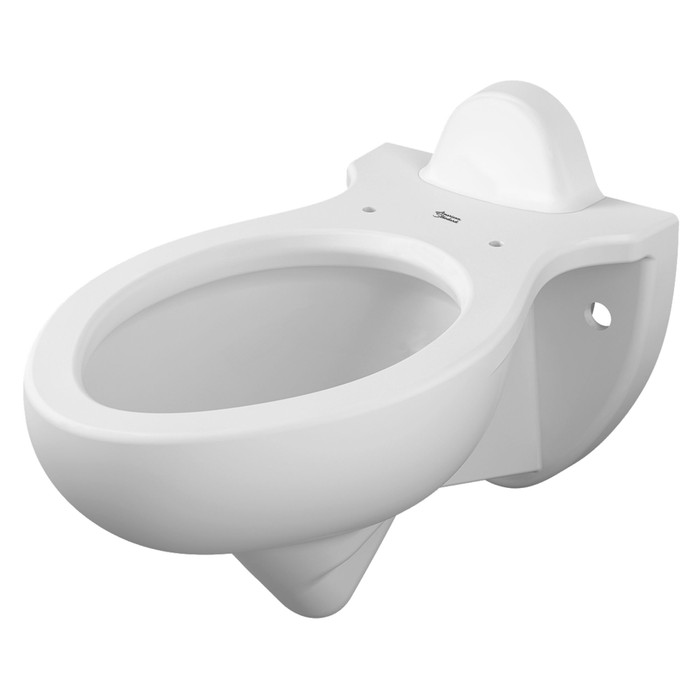

American Standard Rapidway 1.6 gpf/6.0 Lpf Back Spud Elongated Wall-Hung Bowl - AMS-3445L101

American Standard Rapidway 1.6 gpf/6.0 Lpf Back Spud Elongated Wall-Hung Bowl - AMS-3445L101

(No reviews yet) Write a Review

Model: 3445L101.020
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$416.07
$401.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Rapidway 1.6 gpf/6.0 Lpf Back Spud Elongated Wall-Hung Bowl
  • Unique three bolt elongated wall-hung, back spud flushometer bowl, less seat
  • Low consumption, operates at 1.6 gpf/6.0 Lpf
  • Blowout flush action
  • Conventional Glaze
  • 2-1/8" (54 mm) fully-glazed trapway – 2" (51 mm) minimum ballpass
  • Condensation channel
  • 10" x 12" (254 x 305 mm) water surface area
  • 1-1/2" (38 mm) inlet spud

Manufacturer Resources

Product Specs

Product Type:
Bowl
Product Group:
Commercial
Product Subgroup:
Toilet
Family:
RAPIDWAY
Luxury/Non Luxury:
Non Luxury
Residential Commercial:
Commercial
Product Length:
17.063
Product Height:
27.188
Product Weight:
60.455
Product Width:
15
Department:
Plumbing
Product Color:
White

American Standard 3445L101.020 – Frequently Asked Questions

1) Does the American Standard Rapidway 3445L101 wall-hung bowl need a flush tank or a flushometer?
It's a flushometer bowl, not a tank toilet. The Rapidway 3445L101 takes a back spud flush valve through a 1-1/2 inch inlet spud and runs at 1.6 gpf/6.0 Lpf, so you'll order a matching 1.6 gpf flushometer separately. No tank mounts to this bowl.
2) Is the Rapidway back spud bowl a top spud or back spud, and can I swap it onto an existing top spud installation?
Back spud. The flush connection comes through the wall behind the bowl, not down from above, so it pairs with a back spud flushometer and concealed or exposed piping arranged for a rear inlet. If your existing opening is piped for a top spud bowl, this is not a straight swap without repiping.
3) Is a seat included with the American Standard Rapidway 3445L101 bowl?
No seat comes with it. The Rapidway 3445L101 ships less seat, so budget an elongated open-front commercial seat on top of the bowl and the flush valve. That's the usual arrangement on commercial wall-hung fixtures, where the facility picks the seat grade.
4) How much wall space and projection do I need for the American Standard 3445L101 elongated bowl?
The bowl measures 27.188 x 17.063 x 15 inches. Elongated, so plan the deeper of the two bowl footprints when you're laying out stall partitions and ADA clearances. Check the 15 inch figure against your partition-to-centerline dimension before you set the carrier location.
5) Is blowout flush action better than siphon jet for a high traffic restroom?
Blowout is what you want where abuse and clogging are the problem. The Rapidway drives waste out through a 2-1/8 inch fully glazed trapway with a 2 inch minimum ballpass and a 10 x 12 inch water surface, which means a large exposed water area to keep the bowl clean and a wide passage for foreign objects. Siphon jet bowls run quieter but pass less. For schools, transit, stadium and correctional-type traffic, blowout is the common commercial choice.
6) Will this American Standard bowl sweat in a humid restroom?
The Rapidway 3445L101 has a built-in condensation channel, which catches sweat forming on the china rather than letting it run onto the floor. That's a practical detail in unconditioned or high-humidity restrooms where drip staining under wall-hung fixtures is a recurring maintenance call.
7) What finish and part number do I order for the Rapidway wall-hung bowl?
One configuration only: White, MPN 3445L101.020, with conventional glaze. There's no color range to specify, so the only choices left on the order are the flushometer and the seat.
