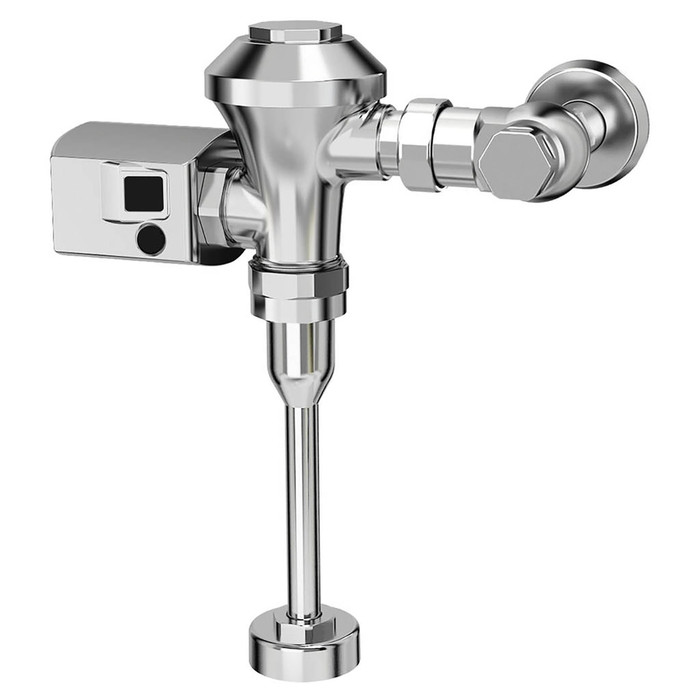

American Standard Ultima Touchless Sensor Toilet Flush Valve, Diaphragm-Type, 1.6 gpf/6.0 Lpf, 27-Inch (686 mm) Rough-In - AMS-6147SM162

American Standard Ultima Touchless Sensor Toilet Flush Valve, Diaphragm-Type, 1.6 gpf/6.0 Lpf, 27-Inch (686 mm) Rough-In - AMS-6147SM162

(No reviews yet) Write a Review

Model: 6147SM162.002
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$462.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Ultima Touchless Sensor Toilet Flush Valve, Diaphragm-Type, 1.6 gpf/6.0 Lpf, 27-Inch (686 mm) Rough-In
  • For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
  • Includes 4 C-sized alkaline batteries
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • EvoLast premium chlorine- and chloramine-resistant diaphragm material resists premature deterioration and failure
  • Electronically operated override button
  • Proprietary brass alloy resists dezincification
  • 27-inch rough-in. Pipe can be cut during installation.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Flush Valve
Product Group:
Commercial
Product Subgroup:
Parts and Accessories
Family:
SELECTRONIC DIAPHRAGM FV
Product Length:
25.063
Product Height:
6.25
Product Weight:
12.511
Product Width:
13.375
Department:
Plumbing
Parts and Accessories Type:
Flush Valve
Application:
Toilet
Product Color:
Chrome
Country of Origin:
Mexico
Luxury/Non Luxury:
Non Luxury
Residential Commercial:
Commercial

American Standard 6147SM162.002 – Frequently Asked Questions

1) What rough-in does the Ultima 6147SM162 flush valve cover, and what if my supply is closer?
The valve ships with a 27 inch (686 mm) rough-in, and the pipe can be cut during installation to suit a shorter dimension. That makes it usable on openings at or under 27 inches from the supply to the bowl spud.
2) Is this flush valve a 1.6 gpf model and will it work on a 1.28 gpf bowl?
The Ultima 6147SM162 is rated 1.6 gpf / 6.0 Lpf. Match the valve rating to the bowl rating: a 1.28 gpf high efficiency bowl needs a 1.28 gpf valve, not this one.
3) Does the American Standard Ultima touchless toilet valve need power wiring?
No hardwiring. It is battery powered and comes with four C-size alkaline batteries, so no transformer or junction box is needed at the fixture. That keeps retrofits in existing restrooms simple for a property manager converting manual flushometers to touchless.
4) Can someone flush this sensor valve manually if the sensor does not pick them up?
Yes. There is an electronically operated override button on the valve, so a user or maintenance tech can trigger a flush without waving at the sensor.
5) Why do my flushometers keep running on, and does this diaphragm valve address it?
Run-on usually traces to a fouled refill orifice in the diaphragm. This Ultima valve uses DynaClean, an integral wiper spring that cleans the refill orifice on every flush, and an EvoLast diaphragm made from chlorine- and chloramine-resistant material to slow premature deterioration in treated water systems.
6) Is this flush valve suitable for high traffic commercial restrooms or is it a residential part?
It is a commercial flushometer valve, not a residential tank fitting, and the body uses a proprietary brass alloy that resists dezincification. Typical fits are schools, offices, airports, healthcare and multi-family common restrooms running exposed flushometer bowls.
7) What finish does the Ultima 6147SM162 come in, and what part number do I order?
Chrome is the finish offered, ordered as manufacturer part number 6147SM162.002. It falls in American Standard's Selectronic diaphragm flush valve family, so it matches other Selectronic chrome trim already in the building.
