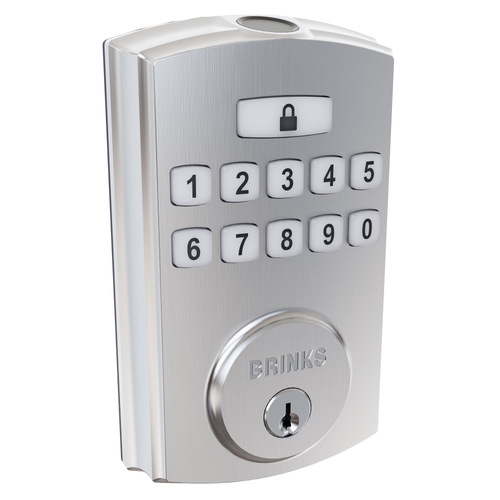

Brinks Electronic Keypad Series Deadbolt Lock

Brinks Electronic Keypad Series Deadbolt Lock

(No reviews yet) Write a Review

Model: 43901-122
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$98.85
$95.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

COMPATIBILITY: Perfect for front, back, or side doors, or where secure access is needed. Fits most standard doors 1-3/8" to 1-3/4" thick with an adjustable latch to fit a 2-3/8" or 2-3/4" backset. Great for right or left-handed doors

  • PASSCODE ENTRY: Our keypad door lock features 50 User Codes and 10 Single Use Codes. Users can choose to 1-99 second auto lock or 2 second one-touch lock
  • HIGH SECURITY: Features PRO-GUARD for advanced security and protection, designed with an anti-tamper alarm and an anti-pry shield to help prevent brute force tampering. Equipped with high security, pick, bump, and drill resistant keyway and 1-inch deadbolt with hardened steel anti-saw pin to resist attack.
  • EASY INSTALLATION: Easy to install with just a Phillips screwdriver and no wiring required. Features a low battery indicator, powered by 4 AA batteries (not included). Batteries last up to 24 months or longer.

Manufacturer Resources

Product Specs

Subcategory:
Bored Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Deadbolts
Commercial/Residential:
Residential
Battery Operated:
Yes
Keyed:
Yes
MAP Policy:
Yes
Product Attribute:
Electronic Locks
Reader Type:
Keypad
Product Category:
Electronic Locks
Department:
Door Hardware

Brinks 43901-122 – Frequently Asked Questions

1) Do I need to order a left hand or right hand version of the Brinks keypad deadbolt?
No handing to specify. The Brinks keypad deadbolt works on right or left handed doors as supplied, so one part number covers every opening in a building regardless of swing. Finish is the only choice you make: satin nickel, matte black, or Tuscan bronze.
2) Can I still get in with a key if the batteries die on the Brinks keypad deadbolt?
Yes, it is a keyed lock as well as a keypad. The cylinder is pick, bump, and drill resistant, so key override is there without giving up the keyway security. Power is 4 AA batteries (not included) with a low battery indicator, and Brinks rates the batteries up to 24 months.
3) Is the Brinks electronic keypad deadbolt approved for a commercial building or apartment entry doors?
Brinks lists this keypad deadbolt as residential. It suits a single family front, back, or side door. For a leased commercial opening or a spec that calls for a graded deadbolt, look at the Accentra D111 Grade 1 single cylinder deadbolt or the Design Hardware D1 Series Grade 1, both cylinder-operated rather than keypad. If you want keypad access with a commercial pedigree, the Codelocks CL2200 electronic surface deadbolt is medium duty.
4) Will the Brinks keypad deadbolt drop into the existing deadbolt hole, or do I have to redrill the door?
It goes into a standard deadbolt prep. The adjustable latch covers both 2-3/8 and 2-3/4 inch backsets, and the lock is rated for 1-3/8 to 1-3/4 inch doors, so a door already carrying a conventional bored deadbolt takes it without new boring. Installation needs only a Phillips screwdriver, and there is no wiring to run.
5) Does the Brinks keypad deadbolt work on a 2 inch or thicker door, and what do I order if it does not?
The Brinks Electronic Keypad Series Deadbolt fits doors 1-3/8 inch to 1-3/4 inch thick. For a thicker leaf, the Deltana 7312KA2 is a Grade 3 heavy duty double cylinder deadbolt covering 1-3/8 inch to 2 inch, and the Corbin Russwin DL3011 is a Grade 1 cylindrical deadlock in the DL3000 Series covering 1-3/4 inch to 2-1/4 inch. Both are keyed rather than keypad locks.
6) What is the closest keypad deadbolt to the Brinks Electronic Keypad Series if I want a code-entry lock with a mechanical key override?
The Brinks Electronic Keypad Series Deadbolt is a keypad-read, battery-operated deadbolt that keeps a keyway, so a code or a key opens it. The nearest peer is the Delaney KP400, a Grade 2 electronic deadbolt in the KP400 Series that adds a programmable remote. If code entry is the requirement and you also want radio control from outside the door, the KP400 covers both; if a keypad and a key are all you need, the Brinks unit does it with 4 AA batteries and no wiring.
7) I need a code-entry deadbolt for a commercial opening, not a house. What should I use instead of the Brinks keypad deadbolt?
The Brinks Electronic Keypad Series Deadbolt is a residential deadbolt. For a commercial code-entry opening, the Codelocks CL2200 is a medium duty electronic surface deadbolt in the CL2000 Series, offered in a brushed steel finish, and the Codelocks CL2210 is an electronic mortise deadbolt if the door is prepped for a mortise case rather than a surface-mounted body. Both are code-entry deadbolts specified at a commercial duty level rather than a residential one.
8) What is the mechanical equivalent of the Brinks keypad deadbolt for a 1-3/8 to 1-3/4 inch door with an adjustable backset?
The Brinks Electronic Keypad Series Deadbolt fits doors 1-3/8 inch to 1-3/4 inch thick with an adjustable latch for a 2-3/8 inch or 2-3/4 inch backset. If you want the same door coverage without batteries, the Cal-Royal ED500 is a Grade 3 single cylinder deadbolt with an adjustable backset in the Chelsie ED Series and fits 1-3/8 inch to 1-3/4 inch doors. The Dexter DB2000-SCT is a Grade 2 cylinder x thumbturn deadbolt over the same 1-3/8 inch to 1-3/4 inch range, and the Dexter DB1000-SCT is Grade 1 covering 1-3/8 inch to 1-7/8 inch. All three are key-and-thumbturn, so access is by key rather than by code.
9) If I am standardizing an apartment building on ANSI Grade 1 deadbolts, what takes the place of the Brinks keypad deadbolt?
The Brinks Electronic Keypad Series Deadbolt is a residential keypad deadbolt. Where the spec calls for Grade 1, the Accentra D111 is a Grade 1 single cylinder deadbolt in the D Series with a 2-3/8 inch backset, fitting 1-3/8 inch to 1-3/4 inch doors. The Deltana CL200LM is a Grade 1 single cylinder deadbolt, and the Delaney LM Series 301702 is a Grade 1 single cylinder less core deadbolt in dull chrome US26D for buildings running their own core program. All three are cylinder x thumbturn and keyed rather than code-entry.
10) I want the same double-sided key security the Brinks keypad deadbolt does not give me on a glass-panel door. What deadbolt should I order?
The Brinks Electronic Keypad Series Deadbolt uses a keypad outside and a keyway, so the inside operates without a key. On a door with glass beside or in it, many specs call for a double cylinder deadbolt keyed both sides. The Dexter DB2000-DCT is a Grade 2 double cylinder deadbolt for 1-3/8 inch to 1-3/4 inch doors, the Dexter DB1000-DCT is Grade 1 for 1-3/8 inch to 1-7/8 inch, and the Design Hardware D1 Series is a Grade 1 extra heavy duty double cylinder deadbolt for 1-3/4 inch doors. Confirm your local egress code before specifying double cylinder.
11) What deadbolt should I use instead of the Brinks keypad lock on a fire rated opening?
The Brinks Electronic Keypad Series Deadbolt is a residential deadbolt. Where the opening carries a fire rating, the Hager 3215 is a Grade 2 single cylinder deadbolt with a 1 inch throw carrying a fire rating and fitting 1-3/8 inch to 1-3/4 inch doors, and the Hager 3118 is a Grade 1 classroom deadbolt with a Schlage C keyway and 6-pin cylinder over the same thickness range, also fire rated. The Cal-Royal CRB800 is a Grade 1 heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch. All three are keyed cylinder x thumbturn rather than code entry.
12) My building runs interchangeable cores. Is the Brinks keypad deadbolt the right lock, or should I order something else?
The Brinks Electronic Keypad Series Deadbolt has a pick, bump and drill resistant keyway built into the lock, so it is not part of an interchangeable core program. If your keying is SFIC or IC-based, the Arrow E61 is a Grade 2 single cylinder deadlock with SFIC prep less core fitting 1-3/8 inch to 1-3/4 inch doors, the Deltana CL200LAIC is a Grade 2 single deadbolt with interchangeable core, non-cylinder, with a 2-3/4 inch backset, and the Delaney LM Series 301702 is a Grade 1 single cylinder less core deadbolt. All three take your core so the lock joins the existing keying system.
13) The door is prepped for a mortise lock, not a bored deadbolt. What replaces the Brinks keypad deadbolt there?
The Brinks Electronic Keypad Series Deadbolt is a bored deadbolt that installs into a standard cross-bore with a 2-3/8 inch or 2-3/4 inch backset. A mortise-prepped door needs a mortise body instead: the Codelocks CL2210 is an electronic mortise deadbolt if you still want code entry, the Dormakaba D900 is a small case mortise deadbolt, cylinder x thumbturn, keyed different with SC keyways, and the Emtek 2050 and 2051 are European mortise deadbolts with an integrated roller latch in square and round trim. None of these will drop into a bored prep.
14) How many people can I give codes to on the Brinks keypad deadbolt, and can I give a contractor a one-time code?
Fifty user codes plus ten single use codes. The single use codes are the ones you hand a cleaner, a contractor, or a showing agent, since they expire after one entry and you never have to reissue the whole door. Auto relock is programmable from 1 to 99 seconds, or you can lock it on demand with a 2 second one-touch press.
15) Is a 1 inch deadbolt throw enough to be secure on an exterior door?
One inch is the full throw you want on an entry door, and the Brinks bolt carries a hardened steel anti-saw pin inside it to stop a blade attack on the bolt itself. Brinks pairs that with PRO-GUARD: an anti-tamper alarm and an anti-pry shield against brute force at the trim. For comparison among cylinder deadbolts we stock, the Hager 3215 is also a 1 inch throw.
16) Keypad deadbolt or a standard key deadbolt for a rental property?
The trade-off is rekeying. With a keypad you change a code between tenants instead of pulling cylinders, and the Brinks unit gives you 50 user codes plus 10 single use codes for turnovers and trades. A mechanical deadbolt like the Cal-Royal CB160 Grade 2 or the Dexter DB2000 Grade 2 has no batteries to service and no code list to manage. If you go keypad, budget on 4 AA batteries per door.
17) Which credential-based deadbolts read a card or fob instead of a keypad code?
The Brinks Electronic Keypad Series Deadbolt reads a keypad code, with 50 user codes and 10 single-use codes. If the building issues cards or fobs instead, the Dormakaba Saffire LX-D is an RFID electronic deadbolt with BLE and an electronic lock override in the Saffire Series, and the Dormakaba Nova-D is an RFID multihousing smart electronic deadbolt in the Nova Series. Those are credential readers; the Brinks unit is code entry with a keyway.
18) Is a DynaLock 1300 electric deadbolt an alternative to the Brinks keypad deadbolt?
No, they solve different problems. The Brinks Electronic Keypad Series Deadbolt is a battery-operated keypad deadbolt that installs with a Phillips screwdriver and no wiring. The DynaLock 1300 Series is a heavy duty mortise electric deadbolt - it is a bolt released by an access control system, mortised into the frame or door and wired to that system, with no keypad of its own. If there is no access control head end and no power at the opening, the DynaLock is not a drop-in for a battery keypad lock.
19) Is there a simpler keyed deadbolt than the Brinks keypad lock for a rental unit that does not need codes?
Yes. Skip the electronics and the batteries and the choice is a straight cylinder x thumbturn deadbolt. The Cal-Royal CB160 is a Grade 2 single cylinder deadbolt in the CB160 Series with a tamper-resistant cylinder guard, the Bravura 310B Elite is a Grade 2 traditional round deadbolt, and the Callan Model 200S-G2 is a Grade 2 single cylinder round trim deadbolt. Each opens by key outside and thumbturn inside, so there is nothing to program and no low battery indicator to watch.
20) Will a Codelocks CL200 surface deadbolt do the same job as the Brinks electronic keypad deadbolt?
Not quite. The Brinks Electronic Keypad Series Deadbolt is an electronic keypad lock, battery-powered, with 50 user codes and 10 single-use codes that you program and change. The Codelocks CL200 is a light duty surface deadbolt with key override in the CL200 Series - it is a mechanical code lock body mounted on the face of the door rather than a bored electronic deadbolt, so code changes are done mechanically and there is no battery. If the requirement is many user codes and single-use codes, the CL200 is a different class of lock.
21) What should I use where the door needs a deadbolt with no outside key access at all?
The Brinks Electronic Keypad Series Deadbolt is keyed and has a keypad outside, so it is built to be operated from the outside. For an opening that should only throw and retract from the inside, the Arrow E60 is a Grade 2 non-keyed exit deadlock with a blank plate outside and a thumbturn inside, fitting 1-3/8 inch to 1-3/4 inch doors, and the Callan Model 205S is a Grade 3 one-sided half-bore deadbolt for doors bored on one face only.
22) Can I put the same Brinks keypad deadbolt on every door and keep the finishes matching my existing hardware?
Three finishes are offered, satin nickel, matte black, and Tuscan bronze, so a fleet of doors can be standardized on one lock in whichever of those matches the levers already installed. Since there is no handing to specify and the backset adjusts to 2-3/8 or 2-3/4 inches, the same part covers openings across a building that were drilled differently.
23) I want a bronze deadbolt to match existing hardware rather than the Brinks keypad lock. What are the options?
The Brinks Electronic Keypad Series Deadbolt comes in satin nickel, matte black and Tuscan bronze. If the match needs to be a solid decorative deadbolt instead of a keypad, the Emtek #11 Tuscany is a lost wax cast bronze cylinder x thumbturn deadbolt in the Tuscany series. For a contemporary profile, the Bravura 310RC Elite is a Grade 2 contemporary round deadbolt and the Bravura 310SC Elite is the square version, both cylinder x thumbturn.
