ABB AF-SD RLP Front-Hinged-to-...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$488.87

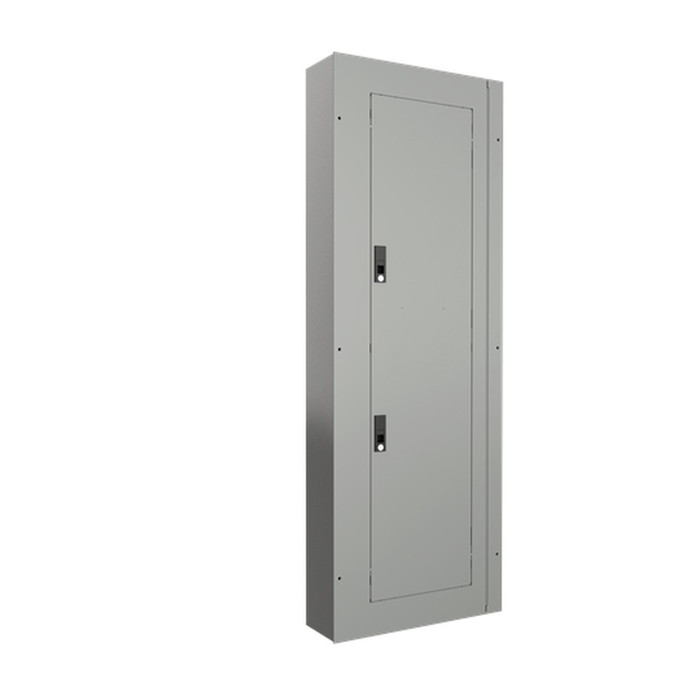

ABB AF-SD RLP Front-Hinged-to-Box Panel Cover, Surface-Mount ReliaGear

ABB AF-SD RLP Front-Hinged-to-Box Panel Cover, Surface-Mount ReliaGear

(No reviews yet) Write a Review

Model: AF49SD

In Stock (leaves warehouse same day if ordered before 3pm ET)

$488.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABB AF-SD RLP Front-Hinged-to-Box Panel Cover, Surface-Mount ReliaGear Lighting Panel

ABB's RLP Front-Hinged-to-Box (FHB) cover is engineered for surface-mounted ReliaGear lighting panel (RLP) applications within the AF Series platform. This front-hinged-to-box design functions much like a door-in-door configuration, giving electricians and contractors convenient access to wiring gutters at a more economical price point than a full door-in-door assembly. The outer door is secured with four screws, so a contractor must remove them to reach the interior, giving the enclosure a controlled, tool-secured service point. This cover is offered across a range of panel front sizes to match ABB's surface-mount ReliaGear lighting panelboards, spanning panel front dimensions from 31.5" x 20" up to 76.5" x 20", so contractors can specify the correct fit for panels of varying circuit counts. Built for commercial and industrial electrical rooms where gutter access is needed on a routine basis, this accessory delivers door-in-door-style convenience without paying for premium door-in-door hardware.

Key Features

  • Front-Hinged-to-Box Design: Hinges directly to the box in a door-in-door-style configuration, giving convenient access to wiring gutters at a more economical price than a full door-in-door system.
  • Surface Mount Configuration: Purpose-built for surface-mounted ReliaGear lighting panel (RLP) enclosures rather than flush/recessed installations.
  • Controlled Outer Door Access: The outer door is secured with four screws, and a contractor must remove all four to gain entry, keeping the gutter compartment access deliberate and controlled.
  • AF Series Compatibility: Designed as part of ABB's AF Series ReliaGear lighting panel accessory lineup for consistent fit and function.
  • Economical Gutter Access: Delivers the practical convenience of door-in-door-style access to gutters without the added cost of a full door-in-door assembly, making it a budget-friendly choice for lighting panel projects.
  • Multiple Panel Front Sizes: Available across panel front dimensions of 31.5" x 20", 37.5" x 20", 43.5" x 20", 49.5" x 20", 55.5" x 20", 64.5" x 20", and 76.5" x 20" to match a wide range of RLP panelboard configurations.
  • Panel-Ready Fit: Sized and configured specifically for ReliaGear (RLP) surface-mounted lighting panel fronts, simplifying specification for matching panel projects.

Technical Specifications

  • Series: RLP AF Series
  • Configuration: Front-Hinged-to-Box (Door-in-Door Style)
  • Mounting: Surface-Mount ReliaGear Lighting Panel
  • Panel Front Size Range: 31.5" x 20" through 76.5" x 20" (select at ordering)
  • Packaging: 1 EA

Typical Applications

  • ReliaGear Lighting Panelboard Installations
  • Surface-Mounted Electrical Panel Enclosures
  • Commercial and Industrial Lighting Panel Access
  • Panel Gutter Access and Routine Maintenance
  • New Construction and Retrofit Panel Upgrades
  • Electrical Rooms Requiring Economical Gutter-Access Covers

Why ABB?

ABB engineers the RLP Front-Hinged-to-Box cover as a practical, cost-conscious accessory for its ReliaGear lighting panel line, giving contractors dependable gutter access without the added expense of a full door-in-door system. The four-screw outer door balances everyday convenience with controlled, deliberate access, supporting reliable, code-aware performance on commercial and industrial lighting panel installations. As part of the AF Series and available across seven panel front sizes from 31.5" x 20" to 76.5" x 20", this front-hinged-to-box cover is built to fit ABB's surface-mounted ReliaGear lighting panels, helping contractors standardize on a consistent, economical accessory across lighting panel projects of varying scale.

Manufacturer Resources

Product Specs

Product Type:
Panel Cover
Series:
RLP AF Series
Configuration:
Front-Hinged-to-Box
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Weatherproof Box Covers

ABB AF49SD – Frequently Asked Questions

1) Will this ABB AF Series cover work on a flush or recessed ReliaGear lighting panel?
No. The AF Series front-hinged-to-box cover is built for surface-mounted ReliaGear lighting panel (RLP) enclosures, not flush or recessed installations. If your panel is recessed into the wall, this is the wrong front and you need a flush-mount RLP front instead.
2) What is the difference between a front-hinged-to-box cover and a full door-in-door panel front?
Both give you access to the wiring gutters without pulling the whole front off. On the ABB RLP front-hinged-to-box (FHB) design the front hinges directly to the box, working like a door-in-door setup but at a lower cost than a full door-in-door assembly. The tradeoff is the access method: the outer door on the FHB is held by four screws that all have to come out, where a true door-in-door gives you a latched inner door. If crews are in the gutters daily and want tool-free entry, spec the full door-in-door. If gutter access is routine but not constant, the FHB does the job for less.
3) Do I need a tool to open the ABB RLP front-hinged-to-box cover?
Yes. Four screws secure the outer door and all four must be removed before you can reach the interior. That keeps gutter access deliberate and tool-secured, which is usually what you want in a commercial or industrial electrical room where the panel is in a shared space.
4) Is this ABB part the panel cover only, or does it include the lighting panelboard?
It is the cover only. The RLP AF Series front-hinged-to-box item is a panel front accessory for ABB's ReliaGear lighting panelboards, sold one each. The panelboard interior, box and breakers are ordered separately.
5) Can I standardize on one ABB cover across several different ReliaGear lighting panels in a building?
You can standardize on the type but not on a single part number. All seven AF Series front-hinged-to-box covers share the same 20 inch width, so the only variable across your panels is height, from 31.5 up to 76.5 inches. Match each cover to its panel front height and the hardware, access method and appearance stay consistent across the whole facility.
