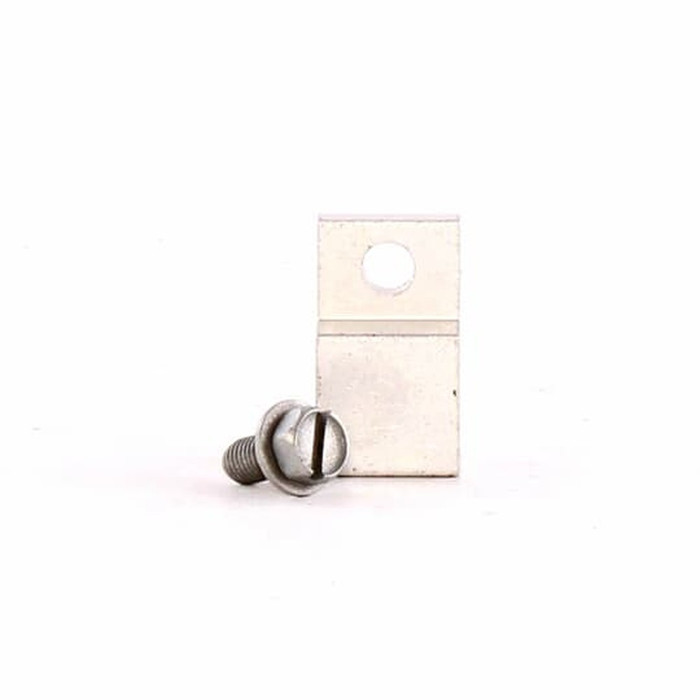

ABB TLK2 Series PowerMark Gold Neutral/Ground Lug Kit, CU/AL

ABB TLK2 Series PowerMark Gold Neutral/Ground Lug Kit, CU/AL

(No reviews yet) Write a Review

Model: TLK20

In Stock (leaves warehouse same day if ordered before 3pm ET)

$16.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABB TLK2 Series PowerMark Gold Neutral/Ground Lug Kit, CU/AL

The ABB TLK2 Series PowerMark Gold Neutral/Ground Lug Kit is a field-installable termination upgrade that mounts on any TLK neutral or ground position by removing the existing termination screw. This kit is available in two wire-range configurations — 6-250 AWG/kcmil and 6-2/0 AWG — so electricians and panel installers can match the lug kit to the specific feeder or branch circuit conductor size on the job. Both configurations accept either copper (CU) or aluminum (AL) conductors, giving crews a fast, code-compliant way to add or upgrade neutral and ground terminations without replacing the entire panel assembly. Each kit ships as a single unit (1 EA) ready for field installation, and is purpose-built to integrate with ABB TLK2 series equipment and termination positions.

Key Features

  • Wire Range Options: Choose from 6-250 AWG/kcmil or 6-2/0 AWG, covering a broad range of feeder and branch circuit sizes.
  • CU/AL Rated: Compatible with both copper and aluminum conductors for flexible field use across either wire-range option.
  • Simple Mounting: Installs on any TLK neutral or ground position by removing the termination screw — no special tools required.
  • PowerMark Gold Series: Part of ABB's PowerMark Gold lug kit lineup, engineered for reliable neutral and ground terminations.
  • TLK2 Series Compatibility: Purpose-built to integrate with ABB TLK2 series equipment and termination positions.
  • Convenient Packaging: Supplied 1 EA per kit for straightforward inventory and job-site use, regardless of the wire-range option selected.

Technical Specifications

  • Wire Range Options: 6-250 AWG/kcmil or 6-2/0 AWG
  • Conductor Compatibility: Copper (CU) or Aluminum (AL)
  • Series: TLK2
  • Packaging: 1 EA per kit
  • Product Material: Copper/Aluminum

Typical Applications

  • Panelboard and Load Center Neutral/Ground Terminations
  • Electrical Panel Upgrades and Retrofits
  • Commercial and Industrial Electrical Installations
  • Feeder and Branch Circuit Wiring
  • Renovation and New Construction Projects

Why ABB?

ABB's PowerMark Gold lug kits are engineered for dependable neutral and ground terminations across both the 6-250 AWG/kcmil and 6-2/0 AWG wire-range options, giving electrical professionals a straightforward field upgrade path for TLK2 series equipment. Because the kit accepts either copper or aluminum conductors and mounts directly onto existing TLK termination positions without special tools, crews can standardize on a single family of lug kits while still matching the correct wire range to each job. Choosing ABB means specifying a termination component built for reliable, code-compliant performance in commercial and industrial electrical systems.

Product Specs

Product Type:
Lug Kit
Series:
TLK2
Product Material:
Copper/Aluminum
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Terminal Blocks & Strips

ABB TLK20 – Frequently Asked Questions

1) What can I use instead of an ABB TLK lug kit if I am terminating on a Square D PowerPacT breaker?
The ABB TLK2 lug kits are built to mount on TLK neutral or ground positions by removing the existing termination screw, so they belong on ABB TLK2 series equipment rather than on a molded case breaker from another maker. For Square D PowerPacT frames, the lug kit is matched to the frame letter: the PowerPacT J frame uses the CU250JD mechanical lug kit, the PowerPacT L frame uses the AL400L61K3 aluminum kit rated 250A for a 3-pole breaker, and the PowerPacT P frame uses the AL1200P7KU mechanical lug kit. Pick the kit that names your frame, since these are not interchangeable across frames.
2) Is the ABB TLK250 the same thing as a Square D breaker lug kit?
No. The ABB TLK250 is a neutral/ground lug kit that installs on a TLK neutral or ground position in the panel and accepts 6-250 AWG/kcmil in copper or aluminum. The Square D PowerPacT kits, such as the CU250JD for the J frame or the AL1200P7KU for the P frame, are circuit breaker accessories that land conductors on the breaker terminals themselves. Both are mechanical lugs, but one serves a panel neutral or ground bar position and the other serves a breaker, so they solve different terminations on the same job.
3) Can I use aluminum feeder wire in the ABB TLK2 lug kit?
Yes, the TLK2 lug kits are CU/AL rated, so aluminum conductors are acceptable as well as copper. Both the 6-2/0 AWG and the 6-250 kcmil versions carry that rating. Standard practice still applies on the aluminum side: brush the conductor and apply an antioxidant compound before torquing.
4) How many lugs come in an ABB TLK2 kit?
Each TLK2 kit is supplied as one unit, 1 EA. If you are converting several neutral or ground positions in the same panel, order one kit per position. That differs from some competing kits sold as multi-packs, like the Square D TeSys GS 200A lug kit, which ships as a set of 6.
5) Can I add a larger ground lug to an existing panel without swapping the panel out?
That is exactly what these are for. The TLK2 lug kit replaces the termination screw at a neutral or ground position, so you gain a 6-250 kcmil or 6-2/0 AWG termination on gear already in the wall. Common on service upgrades where the feeder or grounding electrode conductor grew but the panel did not.
6) Do I need a set of lugs or a single lug for a panel ground upgrade?
The ABB TLK2 kits ship one each, which suits adding or upgrading a single neutral or ground termination on a TLK position. If your work is a three-phase device needing all poles landed at once, a set-based kit is the pattern to look for, such as the Square D TeSys GS 200A lug kit, which is supplied as a set of six. Count the terminations you are actually making and order per position accordingly.
