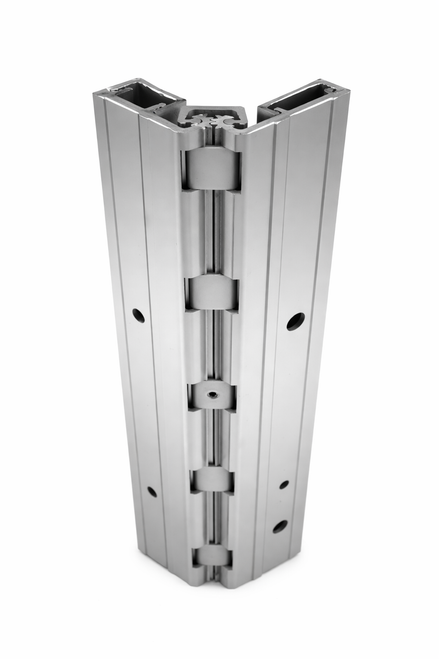

A260 / A270 Aluminum Continuous Gear Hinges Full Mortise for 2-inch Thick Doors
Product Overview
- BHMA Grade 1
- Full Concealed, Heavy Duty
- For use on 2” thick door
- Model:
- A260 - 3/32" Inset
- A270 - No Inset
- 48" door width maximum
- 450 lbs. door weight maximum
- Average weight per unit = 12 lbs
- "LL" model for doors up to 1,000 lbs (lead-lined staggered hole pattern)
- Fasteners:
12-24 X 3/4" undercut self drilling, thread forming tek machine screws - Standard Lengths:
79", 83", 85", 95" and 120" - Fire Rating
- Approved for use on metal swinging type fire doors rated up to and including 90 minutes
- Approved for use on wood swinging type fire doors rated up to and including 60 minutes
STANDARD FEATURES
- Continuous hinges alleviate most common alignment problems such as door binding and sagging by evenly distributing the weight throughout the entire door and frame.
- Provides extra security by eliminating the gap between the door and the frame; thus, disallowing the ability to pry the opening.
- All hinges are surface applied – no mortising of the door or frame required
- First Choice hinges are anodized after machining
- Will cover old butt hinge cut-outs
- All hinges are heavy duty at standard duty prices
- BHMA 156.25 Grade 1 Certified
- Templated hole patterns for standard-length hinges keep consistency over time.
- Standard Finishes – Clear anodized, dark bronze anodized, and black anodized
- Door reinforcement: None required
- Frame reinforcement: None required for doors up to 200 lbs. For doors more than 200 lbs., 16 gauge channel required
CUT SHEETS
Manufacturer Resources
Product Specs
- Category:
- Door Hinges and Pivots
- Product Group:
- Door Hinges and Pivots
- Model:
- A260 / A270
- Door Weight:
- 450
- Fasteners:
- 12-24 X 3/4" undercut self drilling, thread forming tek machine screws
- Product Subgroup:
- Continuous Hinges
- Product Type:
- Continuous Geared Hinges
- Subcategory:
- Full Mortise Hinges
- Commercial/Residential:
- Commercial
- Hinge Type:
- Full Mortise
- Keyed:
- N/A
- Keyed Function:
- N/A
- BAA Qualified:
- Yes
