ABH E0117.75 Heavy Duty Center...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,704.00
$1,674.48

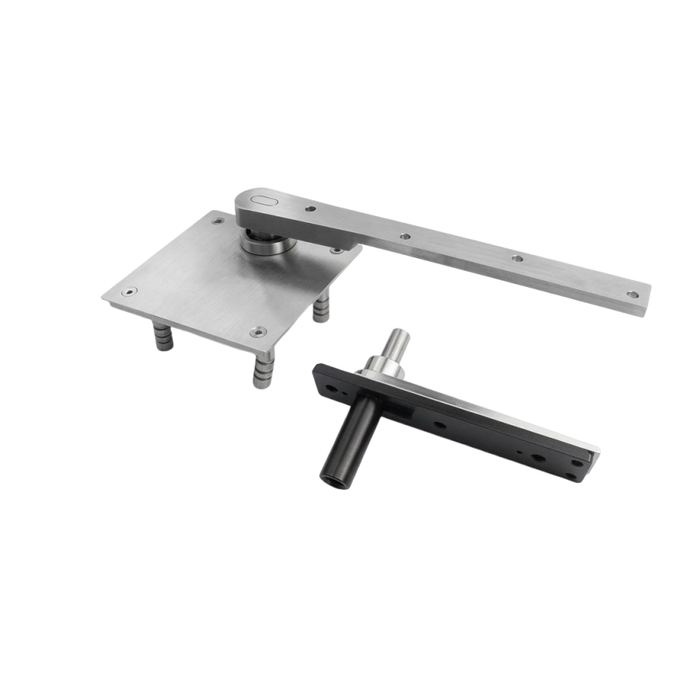

ABH E0117.75 Heavy Duty Center Hung Pivot Set - 600 lb Capacity - 48" Door Width - Fire Rated

ABH E0117.75 Heavy Duty Center Hung Pivot Set - 600 lb Capacity - 48" Door Width - Fire Rated

(No reviews yet) Write a Review

Model: E0117.75-US26
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,704.00
$1,674.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH Heavy Duty Center Hung Pivot Set - 600 lb Capacity - 48" Door Width - Fire Rated

Professional Heavy-Duty Pivot Solution for Commercial Applications

The ABH E0117.75 Heavy Duty Center Hung Pivot Set delivers exceptional performance for demanding commercial door applications with a maximum door load capacity of 600 lbs and compatibility with doors up to 48" wide. This professional-grade pivot system features stainless steel base material construction and heavy duty bearings for long-lasting reliability. The set includes E0345 top pivot with frame leaf that mortises into header and door leaf that mortises into top of door, plus E0117.75B bottom pivot that rests on floor with door leaf mortising into bottom of door.

Professional Features & Benefits

  • Heavy-Duty Load Capacity: Supports doors up to 600 lbs for demanding commercial applications requiring robust hardware solutions.
  • Wide Door Compatibility: Accommodates doors up to 48" wide with center hung mounting configuration for versatile installation options.
  • Stainless Steel Construction: Stainless steel base material provides exceptional corrosion resistance and durability for long-term performance.
  • Heavy Duty Bearings: Precision bearings ensure smooth operation and extended service life under heavy use conditions.
  • Fire-Rated Performance: 3-hour fire rating provides critical safety compliance for fire-rated door assemblies.
  • Non-Handed Design: Universal configuration eliminates handing concerns and simplifies inventory management.
  • Complete Pivot Set: Includes both top pivot (E0345) and bottom pivot (E0117.75B) components for complete installation solution.
  • Electrified Compatible: Designed for use with electrified door systems in access control applications.

Technical Specifications

  • Application: Electrified, Heavy-Duty, Fire-Rated
  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Weight: Up to 600 lbs
  • Duty Level: Heavy Duty
  • Electronic: Yes
  • Fire Rated Time: 3 hours
  • Fire Rating: Yes
  • Hang Type: Offset Hung
  • Mounting Method: Center Hung
  • Pivot Type: Top & Bottom
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Pivots and Pivot Sets
  • Product Substrate: Stainless Steel
  • Product Type: Pivot Sets - Offset
  • Subcategory: Door Pivots

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Fire-Rated Door Assemblies
  • High-Traffic Commercial Entrances

Why Choose ABH Quality?

ABH Heavy Duty Pivot Sets deliver professional-grade reliability with stainless steel construction and heavy duty bearings rated for doors up to 600 lbs. The 3-hour fire rating and BAA qualification ensure compliance with critical safety and procurement requirements. Engineered for demanding commercial applications where dependable performance and fire safety compliance are essential.

Manufacturer Resources

ABH Full Line Catalog

Product Specs

Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Pivot Sets - Offset
Subcategory:
Door Pivots
Commercial/Residential:
Commercial
Hang Type:
Offset Hung
Door Weight:
Up to 600 lbs
BAA Qualified:
Yes
Duty Level:
Heavy Duty
Fire Rated Time:
3 hours
Electronic:
Yes
Pivot Type:
Top & Bottom
Mounting Method:
Center Hung
Application:
Electrified, Heavy-Duty, Fire-Rated
Fire Rating:
Yes
Product Category:
Door Hinges and Pivots
Product Substrate:
Stainless Steel
Department:
Door Hardware

ABH E0117.75-US26 – Frequently Asked Questions

1) How heavy a door can the ABH E0117.75 pivot set carry?
The E0117.75 set is rated for doors up to 600 lbs and up to 48 inches wide. That covers most heavy commercial entrances, thick timber or metal-clad leaves, and glass-and-frame doors that would tear out standard hinges. If your leaf is heavier than 600 lbs or wider than 48 inches, this is the wrong set and you need to step up to a higher-capacity pivot.
2) Can I use this ABH pivot set on a 3-hour fire rated door assembly?
Yes. The E0117.75 pivot set carries a 3 hour fire rating, so it can go on a fire rated opening up to that duration. The pivots are stainless steel, which is what keeps them serviceable in a rated assembly.
3) My door already has a floor closer. Is this ABH pivot set what I need?
No. The E0117.75B bottom pivot rests on the floor and the door leaf mortises into the bottom of the door, so it is a straight load-bearing pivot with no closing function. If the door is controlled by a floor closer, the closer's spindle is the bottom pivot and you would only be looking at a top pivot, such as the E0345 sold on its own, plus whatever intermediate pivot the closer manufacturer requires.
4) What is the closest equivalent to the ABH E0117.75 pivot set for a fire-rated opening?
The BEST A3 System Offset Hung Pivot Set is the nearest peer for a fire-rated opening, since it also carries a fire rating. The ABH E0117.75 is a top and bottom pivot set in stainless steel with a 3 hour fire rated time, carried in offset hung configuration for commercial use. If the opening needs a documented 3 hour assembly, the ABH set is the one that states that duration; the BEST A3 states fire rating without a stated duration, so match it to the label on the door leaf before ordering.
5) Do I have to specify left or right hand when ordering the ABH E0117.75 pivot set?
No handing to specify. The E0117.75 is non-handed, so one part number covers both swings. For a property manager standardizing across a building, that means a single line item stocked on the shelf instead of two, and no wrong-hand returns.
6) Will the ABH E0117.75 work with an electrified door or access control?
It is built for electrified openings, which is the usual setup when a pivot-hung door carries an electric strike, mag lock, or card reader and the transfer runs at the head. Pair it with your electric power transfer or door loop at the top of the door as your access control drawings call out.
7) Should I use a center hung pivot set or butt hinges on a heavy commercial door?
Once a leaf is in the 600 lb class, hinges are working against you. Butt hinges hang the entire weight off the frame's hinge jamb at three or four points, while a center hung pivot like the E0117.75 puts the load down through the bottom pivot onto the floor and uses the top pivot only to hold the door plumb. Center hung also swings on an axis inside the door, so the leaf rotates rather than sweeping wide, and it opens both directions if your opening is set up for it. The trade-off is prep: the frame header and both the top and bottom of the door have to be mortised, which is a shop or careful field operation, not a matter of screwing on leaves.
8) Is the ABH E0117.75 pivot set Buy American compliant for a government job?
It is BAA qualified, so it clears Buy American Act sourcing requirements on federal, municipal, and other publicly funded work. That plus the 3 hour fire rating is usually what a government or institutional spec is checking for on a pivot line item.
9) Can I buy just the top pivot to replace a worn one on an existing ABH installation?
Yes. The E0345 top pivot is orderable by itself in all fourteen finishes, so a single failed pivot does not force you to buy and re-prep a whole set. The bottom pivot in the complete set is the E0117.75B.
10) Does a federal or municipal job that requires domestic procurement compliance change which pivot set to specify?
Yes. The ABH E0117.75 pivot set is BAA qualified, which is the attribute a government or municipal specification is checked against. It is a commercial-grade, heavy duty top and bottom pivot set in stainless steel with a 3 hour fire rated time. The BEST A3 System offset hung pivot set is a fire-rated offset peer for the same style of opening, so where the procurement clause governs, the ABH set is the one to write into the submittal.
11) What finishes does the ABH E0117.75 pivot set come in?
Fourteen finishes across the set: bright and satin stainless steel, bright and satin brass, bright and satin bronze, bright chrome, oil rubbed bronze, painted aluminum, painted brass, painted satin bronze, painted dark bronze, and black or white suede powder coat. Every one of those is available both as the complete set and as the E0345 top pivot on its own, so a replacement top pivot years later still matches the rest of the openings.
12) Will an ABH E0117.75 pivot set hold up in a high traffic entrance?
That is what it is built for. Heavy duty bearings in the pivots handle continuous cycling, and the stainless steel base material resists corrosion at the threshold where water, salt, and cleaning chemicals collect. It is a commercial-only product, not a residential one, and it is the class of hardware you put on a school, hospital, or office building main entrance rather than an interior office door.
