ABH E0128 Electrified Pivot Set Center Hung with Power Transfer for Doors Up to 250 lbs

Professional Electrified Pivot Solution with Integrated Power Transfer

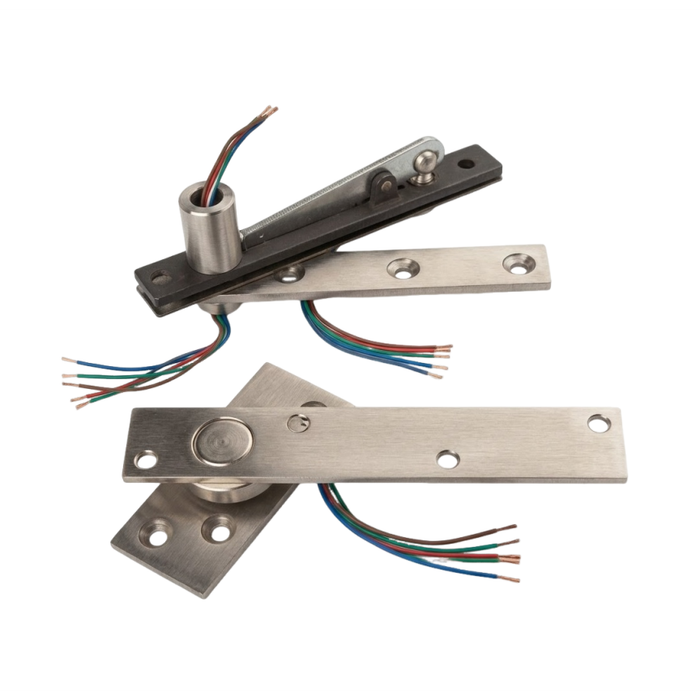

The ABH E0128 Electrified Pivot Set delivers center hung mounting for doors up to 250 lbs with integrated electrical power transfer capability. This complete pivot set includes the E0320 top pivot with 8-wire power transfer and 0128B bottom pivot for comprehensive door support. Designed for doors up to 42" x 102" with 3-hour fire rating and BAA qualification for commercial applications.

Professional Features & Benefits

  • Heavy-Duty Load Capacity: Supports doors up to 250 lbs with maximum door size of 42" x 102" for versatile commercial applications.
  • Integrated Power Transfer: E0320 top pivot provides electrical power transfer from frame to door using (8) 30 AWG wires for electrified hardware integration.
  • Complete Pivot Set: Includes both top pivot (E0320) and bottom pivot (0128B) for comprehensive door mounting solution.
  • Center Hung Design: Non-handed pivot set centers into door thickness for balanced door operation and universal installation.
  • Fire-Rated Construction: 3-hour fire rating ensures code compliance for fire-rated door assemblies in commercial buildings.
  • Stainless Steel Construction: Durable stainless steel substrate provides long-term reliability in demanding commercial environments.
  • BAA Qualified: Buy American Act qualification meets federal procurement requirements for government and institutional projects.
  • Flexible Configuration Options: Compatible with ABH Rescue Hardware and available with extended spindle (EXTS), extended pin (EXTP), security fasteners (SEC), or bottom pivot only (B) configurations.

Technical Specifications

  • Application: Electrified, Standard, Fire-Rated
  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Weight: Up to 250 lbs
  • Duty Level: Standard Duty
  • Electronic: Yes
  • Fire Rated Time: 3 hours
  • Fire Rating: Yes
  • Hang Type: Offset Hung
  • Keyed: N/A
  • Keyed Function: N/A
  • Mounting Method: Center Hung
  • Pivot Type: Top & Bottom
  • Product Attribute: Pivots
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: 180
  • Product Subgroup: Pivots and Pivot Sets
  • Product Substrate: Stainless Steel
  • Product Type: Pivot Sets - Offset
  • Subcategory: Door Pivots

Professional Applications

  • Commercial Office Buildings with Electrified Access Control
  • Healthcare Facilities Requiring Fire-Rated Doors
  • Educational Institutions with Security Systems
  • Government Buildings Requiring BAA Compliance
  • Industrial Facilities with Heavy-Duty Door Requirements
  • Multi-Tenant Properties with Integrated Access Control
  • Retail Establishments with Loss Prevention Systems

Why Choose ABH Quality?

ABH E0128 pivot sets deliver professional-grade reliability with stainless steel construction rated for doors up to 250 lbs and 3-hour fire rating. BAA qualified for federal procurement requirements and engineered for demanding commercial applications where dependable performance and code compliance are essential. Compatible with ABH Rescue Hardware for enhanced emergency egress capabilities.

Manufacturer Resources

ABH Full Line Catalog

Product Specs

Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Pivot Sets - Offset
Subcategory:
Door Pivots
Commercial/Residential:
Commercial
Hang Type:
Offset Hung
Keyed:
N/A
Keyed Function:
N/A
Door Weight:
Up to 250 lbs
BAA Qualified:
Yes
Duty Level:
Standard Duty
Fire Rated Time:
3 hours
Electronic:
Yes
Pivot Type:
Top & Bottom
Mounting Method:
Center Hung
Application:
Electrified, Standard, Fire-Rated
Product Attribute:
Pivots
Product Model:
180
Fire Rating:
Yes
Product Category:
Door Hinges and Pivots
Product Substrate:
Stainless Steel
Department:
Door Hardware

ABH E0128-US26 – Frequently Asked Questions

1) How do you run power to an electric lock on a center hung pivoted door without a surface door cord?
That is what the E0320 top pivot in the ABH E0128 set is for. It carries the electrical transfer through the pivot itself, from frame to door, so there is no exposed loop or wire mold on the opening. The set pairs that electrified top pivot with the 0128B bottom pivot, so one order covers both the hanging and the power path for an electric strike, electrified lock, or maglock signal.
2) How heavy a door will the ABH E0128 pivot set carry?
Up to 250 lbs, with a maximum door size of 42 by 102 inches. That covers most commercial hollow metal and heavy wood doors, but it rules out oversize monumental leaves and thick lead-lined or extra-tall doors that exceed 102 inches. Check the leaf weight before you spec it, because a door over 250 lbs needs a heavier pivot, not this one.
3) Is the ABH E0128 electrified pivot set handed, or does one part number work for left and right doors?
Non-handed. The E0128 is a center hung set, so the pivot point centers into the door thickness and the same set works on a left or right hand opening. No handing to call out on the order, which also means you are not stuck if the door swing changes in the field.
4) Can an electrified pivot be used on a 3 hour fire rated door assembly?
The ABH E0128 set carries a 3 hour fire rating, so it can go on a fire rated opening up to that duration. That matters on stair doors, corridor cross doors, and hospital fire barriers where an electrified lock is being added and the pivot has to keep the rating intact.
5) What do I actually get when I order the ABH E0128, and can I buy just the top pivot?
Two ways to order it. The full E0128 set includes the E0320 electrified top pivot and the 0128B bottom pivot. If the bottom pivot in the floor is already good and only the power transfer is being added, the E0320 top pivot is orderable on its own. Both options come in the same fourteen finishes, so a top-pivot-only order still matches the existing hardware.
6) What is the closest alternative to the ABH E0128 pivot set for a door that does not need electrified hardware?
The ABH E0128 is built around electrified operation - the E0320 top pivot carries (8) 30 AWG wires from frame to door, which is what you pay for when an electric lock, strike or monitored device lives in the leaf. On an opening with no powered hardware in the door, the BEST A3 System offset hung pivot set is the straight mechanical counterpart, and it is fire rated, so it still suits a rated assembly. Specify the E0128 only where wiring has to cross the pivot point; where the door is purely mechanical the A3 covers the same hanging job without the power transfer.
7) For a 3-hour fire-rated opening, is the BEST A3 pivot set an acceptable substitute for the ABH E0128?
Both carry a fire rating, so both belong on a rated opening, but they are not the same specification. The ABH E0128 is rated for 3 hours and is a stainless steel top-and-bottom set for doors up to 250 lbs, with BAA qualification for federal and institutional procurement. The BEST A3 System offset hung pivot set is fire rated as well. If the submittal calls out a 3-hour duration, a door weight up to 250 lbs, or Buy American Act compliance, the E0128 is the one that answers those line items directly; on a rated opening without those additional requirements the A3 is the offset hung alternative.
8) Will the ABH E0128 pivot set meet Buy American requirements on a federal project?
Yes, it is BAA qualified, which is the box a government or federally funded job needs checked before hardware is approved. The stainless steel construction is the same regardless of which finish you order, so the compliance does not change with the finish selection.
9) How many wires does the ABH E0320 power transfer pivot carry?
Eight conductors at 30 AWG. That is enough for a typical electrified lock plus a request-to-exit and a door position switch on the same opening, so you are not running out of circuits when the access control scope grows. Size your device loads against 30 AWG before committing, since eight small conductors is a signal-and-lock budget, not a motor budget.
10) What options can I add to an ABH E0128 pivot order?
Four configuration options: EXTS for an extended spindle, EXTP for an extended pin, SEC for security fasteners, and B for the bottom pivot only. The extended spindle and pin cover thicker floor conditions and deeper frame headers; SEC is the one institutional and detention-adjacent jobs usually want so the pivot cannot be backed out with a common driver.
11) Does the ABH E0128 work with rescue hardware for a behavioral health or patient room door?
Yes, the E0128 is compatible with ABH Rescue Hardware, which is the arrangement that lets a door be released from the outside when someone has collapsed against it. Combined with the electrified transfer through the top pivot, one opening can carry both access control and emergency egress release.
12) Should I use a center hung pivot set or butt hinges on a heavy commercial door?
Pivots carry the load into the floor and the frame header rather than into the door edge, which is why a 250 lb leaf goes on a pivot set instead of hinges. A center hung arrangement also puts the pivot point inside the door thickness, so the leaf rotates within its own opening rather than swinging clear of the frame, which is what you want with an overhead closer or a floor closer and a tight reveal. If the door needs to swing fully clear of the frame for equipment or gurney traffic, an offset pivot is the arrangement to look at instead.
13) Is the ABH E0128 pivot set rated for high traffic entrance doors?
It is a standard duty commercial pivot set. That suits office suite doors, corridor doors, and tenant entries. For a main building entrance cycling constantly all day, or an opening with an abusive traffic history, look at a heavy duty pivot rather than standard duty, even where the 250 lb capacity would otherwise be adequate.
14) What finishes does the ABH E0128 pivot set come in to match existing door hardware?
Fourteen finishes, in both the full set and the top-pivot-only version: bright and satin stainless steel, bright and satin brass, bright and satin bronze, bright chrome, oil rubbed bronze, painted aluminum, painted brass, painted satin bronze, painted dark bronze, and black or white suede powder coat. Powder coat and the painted options are the ones that usually match a storefront or an existing painted frame; satin stainless is the common institutional default.
15) Will the ABH E0128 hold up in a wet or high humidity location like a pool corridor or a kitchen door?
The pivot set is stainless steel, which is the substrate you want where the floor gets wet or washed down, since the bottom pivot sits at the threshold and takes the worst of it. Pick a stainless finish rather than a painted or powder coated one if the surface is going to see standing water or frequent cleaning chemicals.
