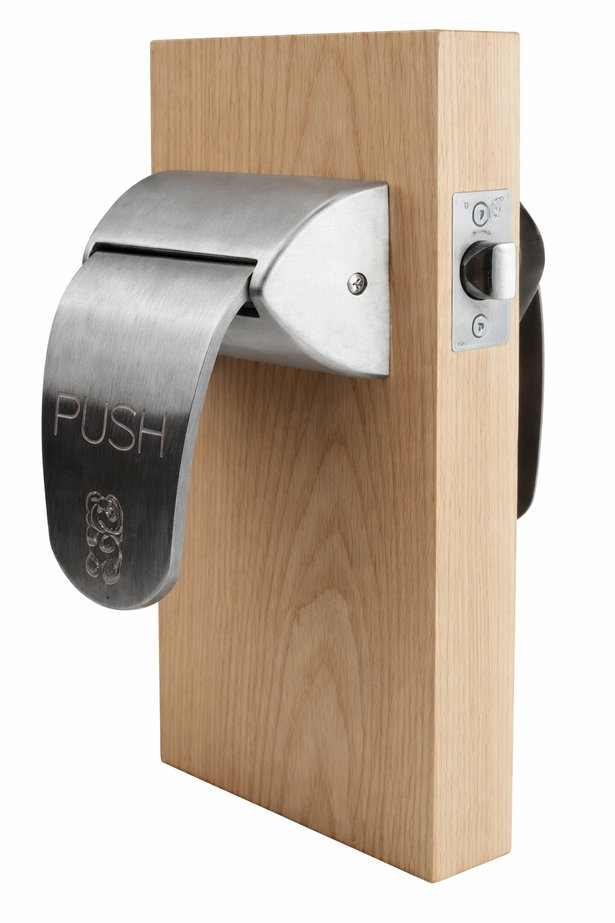

ABH LR6000 Series Hospital Push/Pull Latch with Ligature-Resistant Design

ABH LR6000 Series Hospital Push/Pull Latch with Ligature-Resistant Design

(No reviews yet) Write a Review

Model: LR60002-A-US26
$519.00
$510.01
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$519.00
$510.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH LR6000 Series Hospital Push/Pull Latch with Ligature-Resistant Design

Professional Ligature-Resistant Hospital Latch Solution

The ABH LR6000 Series Hospital Latch features a new ligature-resistant design that provides both sleek aesthetics and exceptional functionality for healthcare applications. This cylindrical latch operates with passage function on standard 1-3/4" door thickness and meets ADA requirements for accessibility compliance. The unit weighs an average of 6 lbs and includes a 1/2" latch bolt throw for secure operation.

Professional Features & Benefits

  • Door Thickness Compatibility: Standard 1-3/4" door thickness for typical commercial door applications.
  • Ligature-Resistant Design: New design provides enhanced safety in healthcare environments while maintaining sleek appearance and full functionality.
  • Maximum Stability Mounting: Trim mounted using four thru-bolts for superior stability and long-term reliability in high-use applications.
  • Extended Life Operation: One continuous spring provides smoother operation and extended unit life compared to traditional multi-spring designs.
  • Flexible Installation Options: Non-handed design allows vertical or horizontal mounting with handles pointing toward hinge edge, and handles can be mounted up or down by rotating trim 180°.
  • Fire Rating Compliance: UL Listed in U.S.A. and Canada for use on doors fire rated 90 minutes or less, up to 4'0" x 8'0" for code compliance.
  • ADA Compliance: Meets ADA requirements for accessibility in commercial healthcare facilities.
  • Patented Technology: Protected by Patent# 7,258,374 with additional patents pending for innovative design features.

Technical Specifications

  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Keyed: N/A
  • Keyed Function: N/A
  • PDF:Hospital Push Pull Latches Cross Reference Chart: https://zensupply.com/content/pdf/abh/0000403_cross_reference.pdf
  • PDF:LR6000 Hospital Latch Installation: https://zensupply.com/content/pdf/abh/0002617_lr6000_04.pdf
  • PDF:LR6000 Series Cut Sheet - Wide Paddle Cylindrical Push Pull Latch: https://zensupply.com/content/pdf/abh/0000211_lr6000_cut.pdf
  • Product Category: Mechanical Locks
  • Product Group: Mechanical Locks
  • Product Model: LR6000
  • Product Subgroup: Bored Locksets
  • Product Type: Hospital Latches
  • Series: LR6000 Series
  • Subcategory: Hospital Push/Pull Latches

Professional Applications

  • Healthcare Institutions and Hospitals
  • Mental Health Facilities
  • Behavioral Health Units
  • Patient Care Areas
  • Medical Office Buildings
  • Long-Term Care Facilities
  • Emergency Treatment Centers

Ligature-Resistant Safety Design

The new ligature-resistant design provides enhanced safety in healthcare environments where patient protection is paramount. This innovative approach maintains the sleek appearance and full functionality expected in professional hospital hardware while addressing critical safety requirements for behavioral health and patient care applications.

Why Choose ABH Quality?

ABH LR6000 Series hospital latches deliver professional-grade reliability with patented design technology and UL Listed fire rating compliance. The continuous spring construction and four thru-bolt mounting system provide extended operational life rated for demanding healthcare applications. Engineered for critical healthcare environments where dependable performance and patient safety are essential.

Product Specs

Series:
LR6000 Series
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Hospital Latches
Subcategory:
Hospital Push/Pull Latches
Commercial/Residential:
Commercial
Keyed:
N/A
Keyed Function:
N/A
BAA Qualified:
Yes
Product Model:
LR6000
Product Category:
Mechanical Locks
Department:
Door Hardware

ABH LR60002-A-US26 – Frequently Asked Questions

1) Will the ABH LR6000 hospital latch work on a 1-3/8 inch door?
No. The LR6000 hospital push/pull latch is built for standard 1-3/4 inch door thickness only, which is the usual commercial door. On a 1-3/8 inch door, typically an older interior leaf, you need a different latch.
2) Do I need to specify handing on the ABH LR6000 hospital latch?
Handing isn't a factor. The LR6000 is non-handed. It mounts vertically or horizontally with the handles pointing toward the hinge edge, and you can flip the paddles up or down by rotating the trim 180 degrees. One part covers left and right hand openings, which is why it's easy to stock across a floor.
3) Which strike should I order with the ABH LR6000, T-strike or ASA?
Two strikes are offered: a 2-3/4 inch T-strike and a 4-7/8 inch ASA strike. Match what is already prepped in the frame. Hollow metal frames with a standard commercial lock prep normally take the 4-7/8 inch ASA; a 2-3/4 inch T-strike suits a frame cut for a tubular latch. Getting this wrong means cutting the frame on site.
4) Will the ABH LR6000 latch bolt reach my existing strike?
The LR6000 has a 1/2 inch latch bolt throw. That is enough for a normally hung door with a standard strike lip, but if your frame has a deep reveal or the door has settled and gapped, a 1/2 inch throw can miss. Check the gap between the door edge and the stop before you order.
5) What makes the ABH LR6000 ligature resistant for a behavioral health unit?
The LR6000 uses a ligature-resistant paddle design with no protruding lever to loop a cord over, which is why it shows up on behavioral health and mental health units rather than a standard lever lock. It is a passage latch, so it addresses the hardware profile on the door, not locking. Standard lever locksets, including the hospital privacy levers, do not offer this profile.
6) Patient toilet and exam rooms need privacy, not passage. What replaces the ABH LR6000 there?
Use the Schlage ALX44 hospital privacy lock, a Grade 2 cylindrical non-keyed lever lock in hospital privacy function, medium duty. The ABH LR6000 is passage function only and is non-keyed, so it holds the door closed and releases on a push or pull with no locking at all. Where a patient room or toilet needs to be secured from the inside, the ALX44 is the function that does it; where the door must never be locked against staff, the LR6000 is.
7) What is the closest equivalent to an ABH LR6000 hospital push/pull latch from another manufacturer?
The Trimco 1562A Hospital Series Push/Pull Latch is the nearest like-for-like part. It is a tubular hospital push/pull latch in passage function with levers down, rated heavy duty. The ABH LR6000 is a cylindrical hospital push/pull latch in passage function for 1-3/4 inch doors with a 1/2 inch latch bolt throw, and it is non-handed, so the trim can be rotated 180 degrees to mount handles up or down rather than being supplied levers-down. Both give a paddle that opens the door with a forearm, hip, or cart, with no knob or lever to grip.
8) The door already has a mortise lock body. Which hospital push/pull paddle works with it instead of the ABH LR6000?
Use the Schlage HL6-9000RK. It is supplied as paddles only, less mortise lock, for 1-3/4 inch doors and rated heavy duty, so it dresses an existing mortise lock body rather than replacing it. The ABH LR6000 is a cylindrical latch for 1-3/4 inch doors that brings its own 1/2 inch throw latch and is ordered with either a 2-3/4 inch T-strike or a 4-7/8 inch ASA strike, so it suits a bored opening rather than a mortise prep.
9) Med room and clean supply doors on the same corridor need to stay locked. Can the ABH LR6000 do that, or is a different lock needed?
The LR6000 is a passage latch and is non-keyed, so it cannot secure a med room or supply closet. For those openings use the Schlage L9080BDC mortise storeroom lock, a heavy duty single cylinder non-deadbolt storeroom function for 1-3/4 inch doors with a disposable SFIC. If the room is a classroom-function space instead, the Schlage L9070BDC is the same heavy duty 1-3/4 inch mortise platform in classroom function. Both are mortise, so those doors take a mortise prep while the LR6000 doors take a bored prep.
10) For a behavioral health unit, which of these push/pull options addresses ligature risk?
The ABH LR6000 is the one built for it. Its ligature-resistant design is the defining feature of the series, and it is UL Listed in the U.S.A. and Canada for doors fire rated 90 minutes or less up to 4'0" x 8'0", and meets ADA requirements. The Trimco 1562A is a heavy duty tubular hospital push/pull latch and the Schlage HL6-9000RK is a heavy duty paddles-only mortise trim; both are hospital push/pull hardware, but ligature resistance is what separates the LR6000 from them on a behavioral health opening.
11) Should I use a cylindrical push/pull latch like the ABH LR6000 or a mortise hospital latch?
The LR6000 is a cylindrical (bored) latch, so it goes into a standard cross bore and edge prep. That makes it the straightforward choice on doors already bored for a cylindrical lock, and on retrofits where you do not want to cut a mortise pocket. If the door already has a mortise lock body, the Schlage HL6-9000RK is the mortise route, sold as paddles only, less mortise lock, so you keep the existing lock case. Trimco's 1562A is the tubular alternative, heavy duty, with levers down.
12) Does the ABH LR6000 meet ADA requirements for a hospital corridor?
Yes. The LR6000 meets ADA requirements for accessibility. The paddle operates with a push or pull rather than a twist or tight grasp, which is the operable-hardware point ADA is concerned with on a healthcare corridor door.
13) Can I buy the ABH LR6000 hospital latch on a federal or VA job with Buy American requirements?
The LR6000 is BAA qualified, so it can be specified on projects carrying Buy American Act requirements. That matters on VA hospitals, military medical facilities, and other federally funded healthcare work where the hardware schedule has to clear BAA.
14) Can I standardize a whole floor of patient room doors on the ABH LR6000?
It suits fleet standardization well. The latch is non-handed, so one part number covers both hand doors, and it is offered in four backsets and two strike types to pick up variations in door prep across a building. Specify one finish across the floor and the only thing that changes door to door is backset and strike. Commercial-duty product, not residential.
15) Is a Kaba Ilco 459 push/pull paddle a substitute for the ABH LR6000?
The Kaba Ilco 459 Series is a push/pull paddle, so it addresses the same hands-free operation, but it is a paddle trim rather than a complete latch. The ABH LR6000 is a cylindrical passage latch that includes the 1/2 inch throw latch bolt and ships with a 2-3/4 inch T-strike or 4-7/8 inch ASA strike, trim mounted with four thru-bolts. If the opening needs the latching mechanism supplied as well as the paddles, the LR6000 covers it in one part.
16) Standardizing a healthcare facility on one push/pull latch - how do the ABH LR6000 and Schlage HL6 differ for a mixed door schedule?
The ABH LR6000 is a cylindrical latch supplied complete: 1/2 inch throw latch bolt, backsets of 2-3/4, 3-3/4, 5, and 7 inches, a 2-3/4 inch T-strike or 4-7/8 inch ASA strike, eight finishes from bright brass through satin stainless steel, and non-handed trim that mounts vertically or horizontally with handles toward the hinge edge. The Schlage HL6-9000RK is paddles only, less mortise lock, heavy duty, for 1-3/4 inch doors, so it pairs with mortise bodies already in the schedule. A facility with bored preps and a range of backsets standardizes on the LR6000; one built around mortise bodies uses the HL6 trim over them.
17) A lever lock is easier to source. Can the Schlage ALX44 go on a patient room door instead of an ABH LR6000 push/pull latch?
It changes how the door is operated. The ALX44 is a Grade 2 cylindrical non-keyed lever lock in hospital privacy function, medium duty, so it is opened by gripping and turning a lever. The ABH LR6000 is a paddle latch in passage function that opens with a forearm, hip, or cart without a grip, which is the point on doors staff pass through with hands full or where a lever is a ligature attachment point. On behavioral health and patient care doors the two are not interchangeable even though both mount in a bored prep.
18) What finishes does the ABH LR6000 hospital latch come in?
Eight finishes across the LR6000 line: Bright Brass, Bright Bronze, Bright Chrome, Bright Stainless Steel, Oil Rubbed Bronze, Satin Brass, Satin Bronze, and Satin Stainless Steel. Satin Stainless Steel is the usual pick for matching existing patient room hardware in a hospital, and the brass and bronze options exist where the facility standard is warmer trim.
19) How does the ABH LR6000 mount, and will it stay tight on a high-traffic patient room door?
The trim mounts with four thru-bolts, which pulls the paddle assemblies together through the door rather than relying on wood or sheet metal screws. Internally it runs one continuous spring instead of multiple springs, for smoother operation and longer life. That combination is aimed at the doors that get hit hundreds of times a day, patient rooms, treatment areas, and service corridors.
20) I need to cross reference an existing hospital push/pull latch to an ABH part. Is there a chart?
ABH publishes a Hospital Push Pull Latches Cross Reference Chart, along with an LR6000 installation sheet and an LR6000 wide paddle cylindrical push pull latch cut sheet. Pull the cross reference to match the part currently on the door, then use the cut sheet to confirm backset and strike before ordering.
