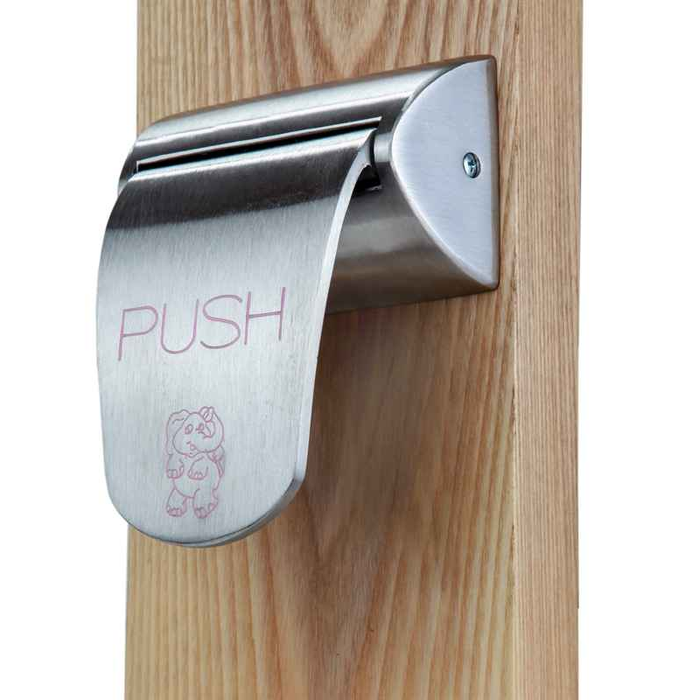

ABH LR6600 Series Ligature-Resistant Hospital Latch with Mortise Lock

ABH LR6600 Series Ligature-Resistant Hospital Latch with Mortise Lock

(No reviews yet) Write a Review

Model: LR6610-RH-US26
$1,109.00
$1,089.79
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,109.00
$1,089.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH LR6600 Series Ligature-Resistant Hospital Latch with Mortise Lock

Professional Ligature-Resistant Security Solution for Healthcare Environments

The ABH LR6600 Series Hospital Latch combines advanced ligature-resistant design with mortise lock functionality for secure healthcare applications. This innovative push/pull trim features a sleek profile with 2-3/4" backset mortise lock body and 1-3/4" standard door thickness compatibility. UL Listed for fire-rated doors up to 90 minutes and 4'0" x 8'0", this unit meets ADA requirements while providing 3/4" latch bolt throw for reliable security.

Professional Features & Benefits

  • Ligature-Resistant Design: New sleek profile provides functionality not commonly found in push/pull trim while eliminating ligature points for enhanced safety in healthcare environments.
  • Mortise Lock Integration: 2-3/4" backset mortise lock body with field-changeable handing and no additional door preparation required beyond standard mortise prep.
  • Flexible Installation Options: Can be mounted vertical or horizontal with handles pointing toward hinge edge, and handles can be mounted up or down by rotating trim 180°.
  • Extended Durability: One continuous spring provides smoother operation and extended life for the unit in high-use healthcare applications.
  • Fire Rating Compliance: UL Listed in U.S.A. and Canada for use on doors fire rated 90 minutes or less, up to 4'0" x 8'0" dimensions.
  • ADA Compliance: Meets ADA requirements for accessible door hardware in healthcare and institutional settings.
  • Cylinder Compatibility: Uses clover leave-type cam Best® C258 or equal with 6 pin (1-1/8" long) or 7 pin (1-1/4" long) cylinder options.
  • BAA Qualified: Meets Buy American Act requirements for government and institutional projects.

Technical Specifications

  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Keyed: N/A
  • Keyed Function: N/A
  • Lock Type: Mortise
  • PDF:Hospital Push Pull Latches Cross Reference Chart: https://zensupply.com/content/pdf/abh/0000403_cross_reference.pdf
  • PDF:LR6600 Handing Instructions: https://zensupply.com/content/pdf/abh/0002579_6600_lr6600_handing_instructions.pdf
  • PDF:LR6600 Series Cut Sheet - Wide Paddle, Push Pull latch Trim with Mortise Lock: https://zensupply.com/content/pdf/abh/0000215_lr6600_cut.pdf
  • Product Category: Mechanical Locks
  • Product Group: Mechanical Locks
  • Product Model: LR6600
  • Product Subgroup: Mortise Locks and Trim
  • Product Type: Hospital Latches
  • Series: LR6600 Series
  • Subcategory: Hospital Push/Pull Latches

Professional Applications

  • Healthcare Institutions and Hospitals
  • Behavioral Health Facilities
  • Mental Health Treatment Centers
  • Correctional Healthcare Units
  • Psychiatric Care Facilities
  • Long-Term Care and Nursing Facilities
  • Government Healthcare Buildings

Ligature-Resistant Safety Design

The LR6600 Series features a new ligature-resistant design that provides a sleek look while eliminating potential ligature points commonly found in traditional push/pull trim. This innovative approach delivers functionality not typically available in hospital-grade hardware, making it ideal for behavioral health and psychiatric care environments where patient safety is paramount.

Why Choose ABH Quality?

ABH LR6600 Series Hospital Latches deliver professional-grade reliability with UL Listed fire rating compliance and ligature-resistant construction engineered for demanding healthcare applications. BAA qualified for government projects with ADA compliant operation and field-changeable handing for installation flexibility. Designed specifically for environments where dependable performance and patient safety are essential.

Product Specs

Series:
LR6600 Series
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Hospital Latches
Subcategory:
Hospital Push/Pull Latches
Commercial/Residential:
Commercial
Lock Type:
Mortise
Keyed:
N/A
Keyed Function:
N/A
BAA Qualified:
Yes
Product Model:
LR6600
Product Category:
Mechanical Locks
Department:
Door Hardware

ABH LR6610-RH-US26 – Frequently Asked Questions

1) Will the ABH LR6600 ligature-resistant hospital latch fit a 1-3/4 inch door?
That's the door it's built for. The LR6600 push/pull trim with mortise lock is set up for 1-3/4 inch standard door thickness, and the lock body uses a 2-3/4 inch backset, which is the standard commercial mortise backset. It goes into standard mortise prep, so if the opening already has a mortise lock in it, no extra door prep is required beyond what's there.
2) Do I have to order the ABH LR6600 handed, or can it be changed in the field?
Handing is field-changeable on the LR6600 mortise lock body, so a unit on the shelf can be flipped to suit the opening. It's still ordered by hand: left hand, left hand reverse, right hand, and right hand reverse are all available. ABH publishes handing instructions for the 6600/LR6600 if the crew needs to change it on site.
3) Will the LR6600 latch bolt catch my existing mortise strike?
The latch bolt throws 3/4 inch, which is the normal throw for a commercial mortise latch, so it will engage a standard mortise strike already cut into the frame. Combined with the 2-3/4 inch backset lock body and standard mortise prep, it drops into an existing mortise opening without reworking the frame.
4) What cylinder does the ABH LR6600 hospital latch take?
A clover leaf type cam cylinder, Best C258 or equal. Two lengths work: 6 pin at 1-1/8 inch, or 7 pin at 1-1/4 inch. If the facility is already keyed on a Best small format system, that's what to specify so the latch keys into the existing master.
5) What lock functions does the ABH LR6600 come in for patient rooms versus staff areas?
Ten functions are offered on the LR6600: Passage, Privacy, Classroom, Communicating, Dormitory, Entry/Office, Hotel, Institutional, Public Entrance, and Storeroom. Patient rooms and toilets typically take Privacy or Passage; med rooms and supply closets take Storeroom; clinician offices take Entry/Office. Function is chosen at order time along with handing and finish.
6) How is a ligature-resistant hospital latch different from a standard push/pull paddle latch?
A standard hospital push/pull paddle, like the Kaba Ilco 459 Series or the Trimco 1562A tubular passage latch, gives you hands-free operation but leaves a protruding paddle that can be used as an anchor point. The ABH LR6600 uses a sleek ligature-resistant profile that removes those points while keeping push/pull operation. For behavioral health, psychiatric, and correctional healthcare units, that distinction is the whole decision. In a general med-surg corridor where ligature risk isn't a factor, a conventional paddle latch does the job.
7) Is a hospital push/pull latch the right choice for a behavioral health room, or should I use a lever lock?
A lever is the wrong shape for a ligature-risk room. A cylindrical lever set such as the Schlage ALX44 hospital privacy lock is Grade 2 medium duty and suits a clinic or an office door, not a psychiatric patient room. The ABH LR6600 is the mortise-based ligature-resistant push/pull answer for behavioral health, mental health treatment, correctional healthcare, and psychiatric care. If the door is a staff office or a med room in a general hospital, a mortise lever lock like the Schlage L9080BDC storeroom function is the simpler buy.
8) I already have a mortise lock in the door and only need the push/pull paddles. What should I order instead of the LR6600?
The Schlage HL6-9000RK Hospital Push/Pull Mortise Latch is supplied as paddles only, less mortise lock, for 1-3/4 inch doors and rated heavy duty. That is the right call when the existing mortise body stays in the door and only the trim is being replaced. The ABH LR6600 is a complete assembly, ligature-resistant push/pull trim with a 2-3/4 inch backset mortise lock body included, so ordering it on an opening that already has a serviceable mortise lock means paying for a lock body you will not install.
9) What is the closest equivalent to the ABH LR6600 hospital latch from another brand?
The Trimco 1562A Hospital Series Push/Pull Latch is the nearest peer in the same push/pull hospital latch family, rated heavy duty. The difference is in the lock body behind the paddles: the Trimco 1562A is a tubular latch in a passage function with levers down, while the LR6600 carries a mortise lock body and is ordered in ten functions including Classroom, Storeroom, Privacy, Hotel, Dormitory and Public Entrance. If the opening is mortise-prepped and needs a keyed or privacy function, the LR6600 matches it; if the door is bored for a tubular passage latch, the 1562A is the one that fits.
10) For a patient room that only needs privacy, can I use a lever lock instead of the LR6600?
The Schlage ALX44 Hospital Privacy Lock is a Grade 2 cylindrical non-keyed lever lock in a hospital privacy function, medium duty, and it bores into a standard cylindrical prep rather than a mortise pocket. It handles the privacy requirement on a patient room door where a lever is acceptable. The ABH LR6600 is specified when the opening calls for ligature-resistant push/pull trim rather than a lever, and it takes mortise prep; it also carries a UL listing for fire doors rated 90 minutes or less up to 4'0" x 8'0" and meets ADA requirements. In behavioral health and psychiatric care areas, the lever is usually what the design is trying to eliminate.
11) Can the LR6600 paddles be mounted pointing down, or horizontally?
Both. The LR6600 trim mounts vertical or horizontal with the handles pointing toward the hinge edge, and the handles can face up or down by rotating the trim 180 degrees. That's how you match orientation across a corridor of existing doors without ordering a different part.
12) Does the ABH LR6600 meet ADA requirements for patient room doors?
The LR6600 meets ADA requirements for accessible door hardware. Push/pull paddle operation is what gets you there: no tight grasping, pinching, or wrist twisting to release the latch, which is what ADA looks for on operable hardware.
13) Is the ABH LR6600 hospital latch Buy American compliant for a VA or state healthcare project?
The LR6600 is BAA qualified, so it meets Buy American Act requirements on government and institutional work. That matters on federal healthcare, state behavioral health, and publicly funded facility projects where domestic sourcing is written into the spec.
14) What do I have to specify when ordering an ABH LR6600 hospital latch?
Three choices settle the order: function (ten of them, from Passage and Privacy through Classroom, Storeroom, Institutional, and Public Entrance), handing (left, left reverse, right, or right reverse), and finish (eight, brass through satin stainless). Beyond that, decide the cylinder: a clover leaf cam Best C258 or equal, 6 pin at 1-1/8 inch or 7 pin at 1-1/4 inch. ABH's LR6600 cut sheet covers the wide paddle trim dimensions if the submittal needs them.
15) How do I cross reference an existing hospital push/pull latch to the ABH LR6600?
ABH publishes a Hospital Push Pull Latches Cross Reference Chart that maps competing hospital latches to the ABH equivalents, and the LR6600 handing instructions cover setting left hand, left hand reverse, right hand and right hand reverse in the field. Confirm two things on the existing opening before ordering: whether the door is mortise prepped, since peers such as the Trimco 1562A are tubular, and whether you need the lock body, since the Schlage HL6-9000RK ships as paddles only less mortise lock.
16) Is the Kaba Ilco 459 push/pull paddle a substitute for the ABH LR6600?
No. The Kaba Ilco 459 Series is a push/pull paddle on its own, not a latching assembly. The ABH LR6600 is a ligature-resistant push/pull trim supplied with a 2-3/4 inch backset mortise lock body, field-changeable handing, and a 3/4 inch latch bolt throw. Use the 459 paddle where the door already has its latching hardware and a paddle is the only piece being changed; specify the LR6600 where the opening needs the trim and the mortise lock together, particularly in behavioral health work where the ligature-resistant profile is the reason for the part.
17) What mortise lock should I use on non-patient doors if I am standardizing a hospital around the LR6600?
The Schlage L9080BDC Mortise Storeroom Lock and L9070BDC Mortise Classroom Lock are both heavy duty mortise locks for 1-3/4 inch doors with single cylinder non-deadbolt function and disposable SFIC, which suits back-of-house storerooms, med rooms and classrooms where push/pull trim is not needed. The ABH LR6600 covers the same two functions, Storeroom and Classroom, among its ten, so a facility can hold one function schedule across both the ligature-resistant openings and the conventional ones. The LR6600 uses a clover leaf type cam Best C258 or equal cylinder in 6 pin (1-1/8 inch) or 7 pin (1-1/4 inch), which is the detail to confirm against your keying before you mix the two.
18) Which hospital latch works on a federally funded project with Buy American requirements?
The ABH LR6600 Series is BAA qualified, meeting Buy American Act requirements for government and institutional projects, and it is a commercial grade assembly available in eight finishes including Satin Stainless Steel, Bright Stainless Steel, Oil Rubbed Bronze and Satin Bronze. Among the hospital push/pull peers, the Schlage HL6-9000RK is paddles only less mortise lock and the Trimco 1562A is a tubular passage latch, so neither delivers the mortise lock plus ligature-resistant trim in one submittal the way the LR6600 does. Pull the LR6600 cut sheet for the submittal package.
19) What finishes does the ABH LR6600 hospital latch come in for matching existing door hardware?
Eight finishes are offered on the LR6600: Bright Brass, Satin Brass, Bright Bronze, Satin Bronze, Oil Rubbed Bronze, Bright Chrome, Bright Stainless Steel, and Satin Stainless Steel. Satin stainless is the usual pick in healthcare corridors because it hides wear and matches most existing institutional trim.
20) Will the ABH LR6600 hold up in a high-traffic corridor?
It's a commercial-duty unit, and the mechanism is built around one continuous spring rather than multiple springs, which ABH cites for smoother operation and longer life under heavy healthcare use. Combined with the mortise lock body, it's specified for the kind of daily cycle a patient wing or long-term care corridor puts on a door.
