ABUS 80TI/45 Titalium Aluminum...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$16.20

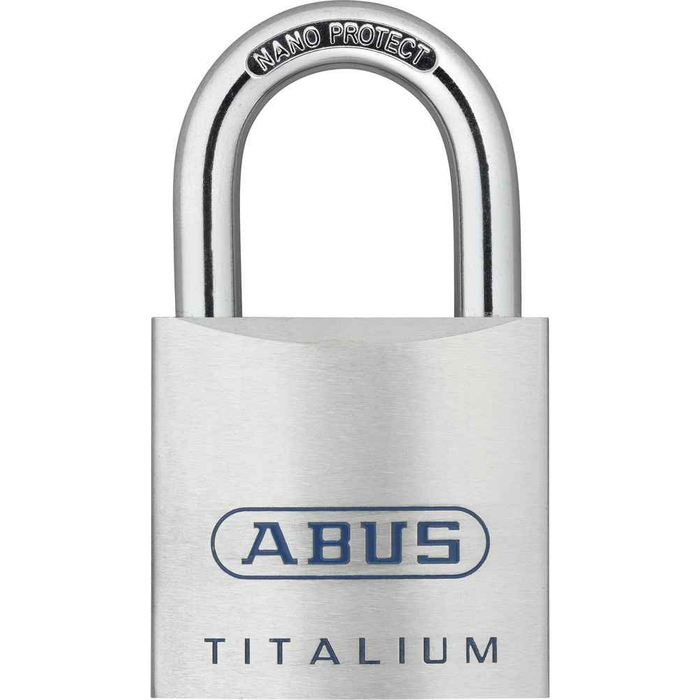

ABUS 80TI/45 Titalium Aluminum Alloy Padlock with Key, 5/16" Shackle diameter

ABUS 80TI/45 Titalium Aluminum Alloy Padlock with Key, 5/16" Shackle diameter

(No reviews yet) Write a Review

Model: 80TI/45 KD
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$16.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Padlock 80 TITALIUM™

Not only secure, but lightweight, too: Our 80TI secures larger valuables or items at high risk of theft.

  • Solid lock body made from TITALIUM™ aluminum alloy - higher security, less weight
  • Light and yet robust
  • Hardened steel shackle with NANO PROTECT™ coating

LIGHTWEIGHT, ROBUST, AND SECURE

Our 80 TITALIUM™ padlock is made of special aluminum with a solid lock body and a precision cylinder.

Not only secure, but lightweight, too: Our 80TI secures larger valuables or items at high risk of theft. We recommend the lock for cellar doors, gates, cabinets, lockers, or tool boxes. The hardened steel shackle has a Nano Protect™ coating. This makes the 80 TITALIUM™ padlock particularly robust and secure.

Technology:

  • Solid lock body made from TITALIUM™ aluminum alloy - higher security, less weight
  • Hardened steel shackle with NANO PROTECT™ plating for extreme corrosion resistance
  • 6-pin precision cylinder with paracentric keyway
  • Double bolted shackle
  • Chrome-plated cylinder plugs with additional corrosion resistance
  • Large tulip-shaped key head

Operation and use:

  • To secure valuables/ goods of greater value or at a high risk of theft
  • To secure doors, gates, cupboards, tool boxes, cellar windows, sheds, switchboards, etc.

Manufacturer Resources

Product Specs

Subcategory:
Padlocks
Product Group:
Other / Miscellaneous Hardware
Shackle Diameter:
8 mm
Horizontal Shackle Clearance:
25mm
Vertical Shackle Clearance:
29mm
Product Subgroup:
Padlocks
Product Type:
Padlocks
Commercial/Residential:
Commercial
Product Model:
80TI/45
Product Height:
82 mm
Product Category:
Other / Miscellaneous Hardware
Product Width:
45mm
Department:
Door Hardware

ABUS 80TI/45 KD – Frequently Asked Questions

1) Can I get ABUS 80TI/45 padlocks all on one key for a building?
Yes. The 80TI/45 is ordered either KA (keyed alike, every lock opens on the same key) or KD (keyed different, each lock its own key). A property manager standardizing gates, storage cages and electrical cabinets across a site orders KA so maintenance carries one key. Mixed sites usually order KA in blocks by area rather than one key for the whole property.
2) Can I put my building's existing key system cylinder into an ABUS 80TI/45?
No. The 80TI/45 uses ABUS's own 6-pin precision cylinder with a paracentric keyway, fixed in the body, so it keys within the ABUS system and not to a Schlage, Sargent or Medeco masterkey system. To bring padlocks onto an existing institutional keyway you need an interchangeable-core lock: ZenSupply carries the Sargent 60-858-2 removable core padlock, which takes the core your other Sargent openings already use.
3) I need a padlock that takes our facility's interchangeable core - can I use the ABUS 80TI/45?
No. The ABUS 80TI/45 is built around a fixed 6-pin precision cylinder with a paracentric keyway, ordered keyed alike or keyed different, so it is not a core-accepting lock. For an opening that has to run on the facility's existing core system, the Sargent 60-858-2 is a removable core padlock with a 2 inch stainless steel shackle in the 758/858 Series. Institutional buyers standardizing a campus on one core keying platform should specify the removable core lock and keep the 80TI/45 for openings keyed on their own.
4) We want audit trail and access control on a padlock - does the ABUS 80TI/45 do that?
No. The ABUS 80TI/45 is a mechanical padlock operated by a 6-pin precision cylinder with a paracentric keyway and a large tulip-shaped key head. For an opening that has to report who opened it and when, the Medeco 54515G XT is an electronic indoor/outdoor padlock in the System Series, non-key retaining, with a 5/16 inch shackle diameter and cylinder included. Its shackle diameter matches the 80TI/45's 8 mm, so the hasp usually does not have to change when a site upgrades a gate to electronic credentials.
5) Does the key come out of the ABUS 80TI/45 when the lock is open?
The 80TI is a non-key-retaining padlock, so the key pulls out with the shackle open. That is what you want on gates and lockers where the lock hangs open during the day. If your site requires the key to stay captive until the lock is relocked, so nobody walks off with a padlock hanging unlocked, look at the Sargent 758 key retaining padlock instead.
6) What does a double bolted shackle mean on a padlock, and why does it matter on a gate?
Double bolted means the shackle is locked on both legs, the heel and the toe, rather than only at the toe. Cut or force one side and the shackle still will not swing free. On a gate or a tool box, that is the difference between a bolt cutter attack on one leg opening the lock and it not. The 80TI/45 shackle is hardened steel at 8 mm diameter.
7) I need a 5/16 inch shackle padlock. What are my options besides the ABUS 80TI/45?
At 8 mm the 80TI/45 shackle is 5/16 inch, and two other 5/16 inch shackle padlocks ZenSupply carries are the Schlage KS23D/KS23F brass padlock from the 20 Series and the Medeco 54515G XT electronic padlock, which is an indoor/outdoor unit with a cylinder. The Schlage is the straight mechanical brass-body alternative. The Medeco XT is the one to look at if you need audit trail and electronic access control rather than a plain key.
8) Are the ABUS 80 series padlocks all the same size, or does the number after the slash mean something?
The number after the slash is the body width in millimetres. On the 80TI/45 that is a 45 mm wide body, 82 mm tall overall, with an 8 mm shackle. So when a spec or an existing lock on site calls out an 80TI in a different width, it is the same lock family in a different body size, and the shackle clearance changes with it. Order by the full model, 80TI/45, so you get the width you measured for.
9) What should I use instead of the ABUS 80TI/45 on a wet or coastal exterior gate?
The 80TI/45 does bring corrosion measures to an exterior opening: the hardened steel shackle carries NANO PROTECT plating and the cylinder plugs are chrome-plated for additional corrosion resistance, and ABUS calls out cellar doors, gates, sheds and switchboards as intended uses. If the specification calls for a sealed weather-rated lock rather than a plated one, the Medeco 521 G8R is a weather-tight padlock with a solid stainless steel body, supplied less the pop-out cylinder. That is the substitution to make when the driver is standing water or salt spray rather than weight.
10) What is a high-security alternative to the ABUS 80TI/45 for a padlock on a high-value opening?
The 80TI/45 is aimed at goods at high risk of theft, with a double bolted shackle and a solid TITALIUM aluminum alloy body. Where the specification calls for a patented high-security key platform instead, two paths exist: the Sargent 82-856 is a non-key retaining padlock on the KESO Series with a 2 inch by 2 inch brass case and stainless steel shackle, and the Medeco 5260 is a 52 Series brass body lock using M3 key technology with a 7/16 inch shackle. Both step up to a larger brass case; the 80TI/45 keeps the lighter alloy body at 45 mm wide.
11) Which padlock has more shackle clearance for a thick chain - the ABUS 80TI/45 or a Sargent 60-858-2?
The ABUS 80TI/45 gives 29 mm of vertical shackle clearance and 25 mm horizontal, on an 8 mm shackle. The Sargent 60-858-2 is specified with a 2 inch stainless steel shackle, which is the longer reach of the two for passing through a heavy chain or a deep hasp staple. Measure the chain link and the hasp staple depth first: the 80TI/45's 29 mm vertical opening is the number that decides whether the link clears.
12) I need padlocks keyed alike across a whole property - is the ABUS 80TI/45 the right pick over a Sargent 858?
The ABUS 80TI/45 is ordered keyed alike or keyed different, so a property manager can put one key on every cellar door, gate, locker and tool box across a site and order matched sets from a single model. The Sargent 858 is a non-key retaining padlock with a stainless steel shackle in a US4 satin brass finish, and the Sargent 60-858-2 takes a removable core - that one belongs on sites already running a core keying system. If the property has no existing core platform, the 80TI/45's keyed alike option is the simpler way to get one key across the fleet.
13) Is the ABUS 80TI good enough for commercial and institutional use, or is it a consumer padlock?
The 80TI/45 is classed for commercial use, not residential. Typical placements are gates, cellar doors, switchboards, cabinets, lockers and tool boxes, which is squarely MRO and facilities work. Where a security spec calls for a specific padlock series on a master key system, that is a different product; for general facility hardware where you are buying in quantity and want a light, corrosion-resistant lock, the 80TI is built for it.
14) Do the keys for the ABUS 80TI padlock work with gloves on?
The 80TI ships with a large tulip-shaped key head, which gives you something to grip and turn with work gloves or cold hands. That matters more than it sounds on gate and yard locks where the 6-pin cylinder wants a firm, straight turn.
How fast can I get the ABUS 80TI/45 KD delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the ABUS 80TI/45 KD come with a warranty?
Absolutely. The ABUS 80TI/45 KD is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the ABUS 80TI/45 KD?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the ABUS 80TI/45 KD from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
