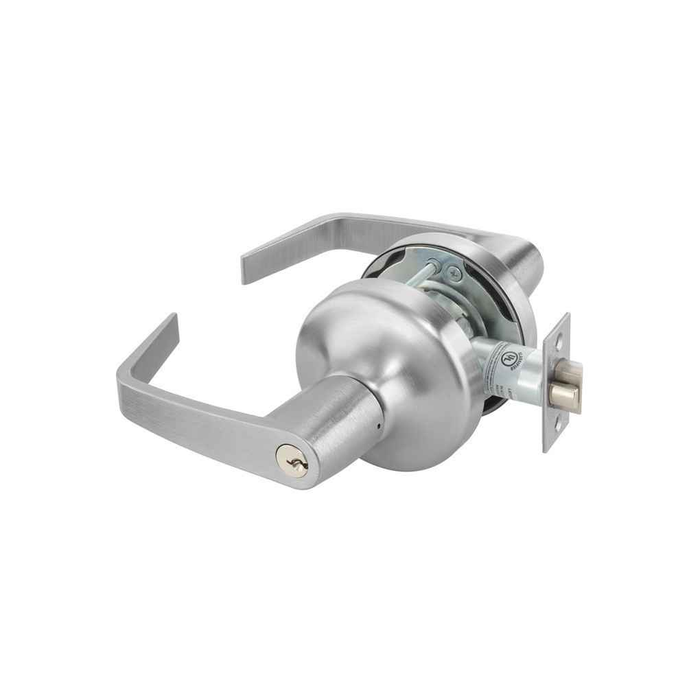

Accenra 4781LN Pacific Beach Grade 1 Fail Secure No Override Electrified Cylindrical Lever Lock

Accenra 4781LN Pacific Beach Grade 1 Fail Secure No Override Electrified Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: PB-4781LN-626 12V
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$729.00
$648.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Yale 4700LN Series Lever Locks

Yale 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The4700LN series is certified to ANSI/BHMA Grade 1 standards and is UL fire-listed for all functions ensuring reliability and peace of mind.



FEATURES & BENEFITS

  • ANSI/BHMA: A156.2, Series 4000 Grade 1
  • UL-cUL: UL-cUL fire-rated up to 3 hours
  • Windstorm: 4700LN Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated
  • Backset: 2-3/4" standard
  • Latchbolt: 1/2" stainless steel throw standard
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: 4700LN adjustable from 1-3/8" to 1-3/4". 4700 adjustable from 1-3/4" to 2"
  • Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center supplied standard. Optional T-strike available to order for 4700LN.
  • Finishes: 4700LN available in 7 finishes, 4700 available in satin stainless steel (630) only.
  • Warranty: 5-year mechanical



CERTIFICATIONS

  • ANSI/BHMA Grade 1 certified
  • ADA compliant for ease of accessiblity



DOWNLOAD & RESOURCES

Product Specs

Series:
4700 Series
Subcategory:
Cylindrical
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Cylindrical
Handle Type:
Lever
Product Model:
YAL-4781LN
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra PB-4781LN-626 12V – Frequently Asked Questions

1) What happens to the Yale 4781LN electrified lever lock when power is lost?
It locks. The 4781LN is a fail secure electrified cylindrical lever with no override, so removing power leaves the outside lever locked. Inside lever always retracts the latch for free egress. Fail secure is the usual choice for access-controlled entries where you want the opening to stay secured during a power outage; if code or the application requires the door to unlock on power loss, you want a fail safe unit instead, such as the Corbin Russwin CL33903 electrified cylindrical lever.
2) Do I order the 12VDC or 24VDC version of the 4781LN?
Match it to the power supply and access control board already on the job. The Pacific Beach 4781LN is built in 12VDC and 24VDC, and the voltage is fixed at the time of order, not field selectable. Both voltages are offered across all eight finishes.
3) Will the Yale 4781LN fit a 1-3/8 inch door?
Yes. The 4700LN chassis adjusts from 1-3/8 inch to 1-3/4 inch door thickness, which covers both standard commercial 1-3/4 inch doors and older 1-3/8 inch interior leaves. If your door runs 1-3/4 inch to 2 inch, that is the 4700 (non-LN) chassis range, not this one.
4) What backset and latch throw does the 4781LN use, and will it hit my existing strike?
Standard backset is 2-3/4 inches with a 1/2 inch stainless steel latchbolt throw, and an ANSI strike measuring 4-7/8 x 1-1/4 inches with 1-1/4 inch lip to center ships with it. If your frame is already prepped for an ANSI 4-7/8 strike on a 2-3/4 backset bored prep, it drops in. A T-strike is available to order on the 4700LN if your frame is prepped for one instead.
5) My door is 2 inches thick. Is there an electrified lever that fits?
Not this one. The 4700LN chassis tops out at 1-3/4 inches. For a 2 inch leaf, the Corbin Russwin CL33903 electrified cylindrical lever is listed for 1-3/4 inch to 2 inch doors, though it is a fail safe unit rather than fail secure, so confirm that suits the opening's code requirements.
6) What is the closest electrified cylindrical lever lock to the Accentra 4781LN from another manufacturer?
The Corbin Russwin CL33903 electrified cylindrical lever lock is the nearest peer. It is Grade 1 like the 4781LN, and it is offered in a keyed 12VAC/DC version with an NZ lever and D rose. The difference that matters is electrical behavior: the 4781LN is a fail secure lock with no override, so the outside lever stays locked when power is removed, while the CL33903 is a fail safe lever, which unlocks on loss of power. The Corbin door thickness range is listed as 1-3/4 inch to 2 inch, where the 4700LN chassis adjusts from 1-3/8 inch to 1-3/4 inch.
7) Is the 4781LN handed? I don't know which way my door swings.
Non-handed. The 4700LN chassis is reversible, so one part number covers left and right hand openings and you do not need to specify swing when ordering.
8) What finishes does the Pacific Beach 4781LN come in?
Eight: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 625 bright chrome, 626 satin chrome, BSP black suede powder coat, and WSP white suede powder coat. That range lets you match the electrified opening to mechanical 4700LN levers already hanging elsewhere in the building.
9) Does the 4781LN come with a cylinder and keys?
The 4700LN series ships standard with a brass 6-pin keyed-random cylinder and two keys. 7-pin is not available on this series, so if your facility is standardized on a 7-pin master system this chassis will not take it.
10) What keeps the latch from being shimmed on the 4781LN?
A guardbolt. On the 4700LN it deadlocks the latchbolt whenever the door is closed and is standard on every locking function, including this electrified fail secure lever. The latchbolt itself is stainless with a 1/2 inch throw, and the chassis is heavy-gauge steel with a die-cast, zinc-plated and chromated mechanism.
11) What's the difference between this electrified Yale lever and a standard mechanical cylindrical lever lock?
The 4781LN is wired: it needs 12VDC or 24VDC run to the door through a power transfer, and the outside lever is controlled by your access control system rather than by key alone. A mechanical Grade 1 cylindrical lever like the Corbin Russwin CL3110 passage or a Dexter C1000 classroom lock needs no power and no wiring prep. Choose the electrified 4781LN only if the opening is on a card reader, intercom, or other release; otherwise the mechanical unit is the simpler install.
12) If the opening does not need to be electrified, what mechanical Grade 1 cylindrical lever should I use instead of the 4781LN?
For a non-electrified opening, the Dexter C1000 Series covers the common Grade 1 cylindrical lever functions: classroom (C1000 classroom, keyed, clutching), classroom security, asylum F87, and passage. The Falcon T101 and Falcon K101 are Grade 1 heavy duty cylindrical passage levers as well, with the K101 listed for doors 1-3/8 inch to 2-1/4 inch. All are purely mechanical, so there is no wiring, transfer hinge or power supply to specify the way the 12VDC or 24VDC 4781LN requires.
13) Is a keypad lever like the Lockey 2835 or Delaney LP250 a substitute for the 4781LN?
They solve a different problem. The 4781LN is an electrified lever that takes its unlock signal from an access control system at 12VDC or 24VDC. The Lockey 2835 is a mechanical pushbutton keyless lever with passage function for doors 1-3/16 inch to 2 inch, and the Delaney LP250 is a Grade 2 electronic keypad leverlock - both are standalone, credential-at-the-door products with no panel wiring. If the door has to be released from a card reader, intercom or head end, only the electrified lock does that.
14) What should I put on the doors around an electrified 4781LN opening to keep the lever look consistent?
For the non-locking doors in the same run, Grade 1 passage cylindrical levers include the Corbin Russwin CL3110 passage/closet, which is vandal resistant and fire rated for 1-3/4 inch to 2 inch doors, the Design Hardware X75 flat lever passage for 1-3/4 inch doors, and the Falcon T101 heavy duty passage. For a door leaf that needs trim only, the BEST 9K Series 1DT is a Grade 1 single dummy cylindrical lever trim. Lever styling will not match the Pacific Beach design across brands, so if appearance matters, stay within the 4700LN family for the adjacent doors.
15) What front does the Yale 4700LN latch use?
A 2-1/4 x 1-1/8 inch beveled front is standard. Flat fronts are available to order if your existing door prep or the mortise cutout in the edge calls for one.
16) For a residential or light commercial door, is there a simpler lever than the 4781LN?
Yes. The Kwikset 200BRNL Breton passage and 300BRNL Breton privacy levers are Grade 3 sets for 1-3/8 inch to 1-3/4 inch doors, and the Callan Artino is a Grade 3 entrance leverset. Bravura offers Grade 2 passage leversets in the Atlanta, Orlando and Tampa styles. These are non-electrified, lighter-duty sets; the 4781LN is a Grade 1 commercial electrified cylindrical lock intended for access-controlled openings.
17) Is the Corbin Russwin 585F715 lever an alternative to the 4781LN?
No. The 585F715 is a Grade 1 lock lever for ED8000 pushpad exit devices and the CL3300 cylindrical lock series, sized for 1-3/4 inch to 2 inch doors - it is trim, not a complete lockset. The 4781LN is a full electrified cylindrical lever lock chassis with a Pacific Beach lever.
