Accentra 5380LN Pacific Beach ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$539.00
$302.27

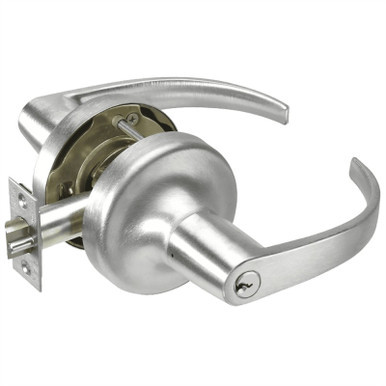

Yale Commercial Yale 5380LN Pacific Beach Grade 2 Fail Safe Electrified Cylindrical Lever Lock YAL-PB-5380LN

Accentra 5380LN Pacific Beach Grade 2 Fail Safe Electrified Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: PB-5380LN-626 12V
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$539.00
$302.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Yale 5300LN Series Lever Locks

Manufactured for the industrial, commercial and institutional markets, 5300LN Series locksets feature security, dependability and versatility in attractive designs and finishes that fulfill all decorative requirements and blend with any architectural décor.

FEATURES & BENEFITS

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

CERTIFICATIONS

  • ANSI/BHMA Grade 2 certified
  • ADA compliant for ease of accessiblity

DOWNLOAD & RESOURCES

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Cylindrical
Handle Type:
Lever
Product Model:
YAL-5380LN
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra PB-5380LN-626 12V – Frequently Asked Questions

1) What does fail safe mean on the Yale/Accentra 5380LN electrified lever lock, and when should I use it instead of fail secure?
Fail safe means the outside lever unlocks when power is removed. Cut the power and anyone can get in from the corridor side, which is what you want on stair re-entry doors and egress paths tied into a fire alarm release. If you need the door to stay locked during a power loss (storerooms, IT rooms, exterior entries), fail safe is the wrong choice and you want a fail secure electrified lever. The 5380LN is the fail safe version of the 5300LN cylindrical lever family.
2) Will the Accentra 5380LN fit a 1-3/4 inch commercial door?
Yes. The 5300LN lever locks adjust from 1-3/4 inch up to 2 inch doors as standard, which covers the typical commercial hollow metal or solid core opening. Thicker 2-1/4 inch doors are available to order rather than adjusted in the field.
3) What backset does the 5380LN lever lock use, and can I get it for a 2-3/8 inch bore?
Standard is a 2-3/4 inch backset. Extension links are available to order for 2-3/8 inch, 3-3/4 inch, and 5 inch backsets, so a wide-stile or existing 2-3/8 inch prep can be covered, but the link has to be specified on the order.
4) Do I need to specify handing when ordering the Yale 5380LN Pacific Beach lever?
No handing needed. The 5300LN lever locks are non-handed and the front is universal for both flat and beveled door edges, so one part covers left and right hand openings. The strike is reversible as well.
5) Is the 12VDC or 24VDC version of the 5380LN the one I need?
That depends on the power supply and access control board already feeding the door. The Pacific Beach 5380LN is built in both 12VDC and 24VDC, and each voltage is offered across all thirteen finish choices, so pick the voltage your existing supply puts out. The lock is not field-switchable between the two.
6) Will the 5380LN latch into the strike already in my frame?
The latchbolt is stainless steel with a 1/2 inch throw, and the standard strike is a 1-1/4 inch curved lip sized for a 1-3/4 inch door. If your existing frame has an ANSI or T-strike cut with a similar lip, the 1/2 inch throw will engage it. Other lip lengths are available to order when the frame is set back further from the door face.
7) Can I use this electrified lever on a fire rated door?
The 5300LN cylindrical lever locks are UL/cUL fire rated up to 3 hours and ANSI/BHMA A156.2 Series 4000 Grade 2 certified. They are also windstorm certified, subject to your local code, and ADA compliant for lever operation. On a fire door the electrified fail safe function normally has to be released by the fire alarm, so confirm that tie-in with your AHJ.
8) I need a Grade 1 electrified fail safe lever instead of Grade 2. What else is there?
The Corbin Russwin CL33903 is the Grade 1 fail safe electrified cylindrical lever alternative, available in a 12VAC/DC version and rated for 1-3/4 to 2 inch doors. Same cylindrical footprint, heavier grade, and a sensible pick for high-traffic classroom, dorm, or hospital corridors where a Grade 2 lock sees more cycles than it should.
9) What is the closest electrified cylindrical lever lock to the Accentra 5380LN if the opening needs a Grade 1 lock?
The Corbin Russwin CL33903 is the heavy-duty counterpart. It is a Grade 1 fail safe electrified cylindrical lever lock rated for 1-3/4 inch to 2 inch doors, offered in a 12VAC/DC version. The Accentra 5380LN Pacific Beach is ANSI/BHMA Grade 2 and is ordered in 12VDC or 24VDC. If your spec calls out Grade 1 electrified cylindrical, the CL33903 matches that line; if Grade 2 satisfies the drawing, the 5380LN covers the same fail safe cylindrical application.
10) We have a 12VAC power supply, not DC. Is there an electrified lever that will run on it instead of the Accentra 5380LN?
Yes. The Accentra 5380LN Pacific Beach is ordered as 12VDC or 24VDC. The Corbin Russwin CL33903 electrified cylindrical lever lock is listed as 12VAC/DC, so it accepts an AC supply at 12 volts. If the building transformer is AC and you do not want to add a DC power supply, the CL33903 is the fit; if you already have a 12 or 24 VDC supply feeding the door, the 5380LN works directly.
11) The access control on this door was dropped from the scope. What mechanical Grade 2 lever lock replaces the Accentra 5380LN?
The 5380LN Pacific Beach is an electrified cylindrical lever that requires power to the door. With access control out, a mechanical Grade 2 cylindrical lever covers the same opening: the Hager 2580 storeroom lever fits 1-3/8 inch to 2 inch doors, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt, and the Falcon B511CP6D is a Grade 2 entry/office cylindrical lever. Choose by function - storeroom keeps the outside lever locked at all times, entry/office allows the outside lever to be unlocked.
12) Is a keypad lever like the Lockey 2835 or Delaney LP250 a substitute for the Accentra 5380LN?
No, they solve different problems. The 5380LN Pacific Beach is a fail safe electrified cylindrical lever that is controlled remotely by a card reader or access panel through 12VDC or 24VDC wiring to the door. The Lockey 2835 is a mechanical pushbutton keyless lever for doors 1-3/16 inch to 2 inch, and the Delaney LP250 is a Grade 2 electronic keypad leverlock - both are standalone, credential-at-the-door units with no wiring back to a panel. Use a keypad lever when there is no access control system; use the 5380LN when the door has to report to and be released by one.
13) What cylinder and keys come with the Yale 5380LN, and can I get it 7-pin?
It ships with a brass 6-pin keyed-random cylinder and two keys. A 7-pin cylinder is not offered on the 5300LN series, so if your facility is standardized on a 7-pin small format or large format system you will need to plan around that or spec a different series.
14) What finishes does the Pacific Beach 5380LN come in for matching the rest of my building?
Thirteen finishes are offered. The stocked range includes 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, plus black and white suede powder coat. PVD is standard on 605 and 606 and available as a lifetime option on 613, which holds up better on high-touch and exterior-facing openings than plated brass.
15) Is the 5380LN the right lock if I only need a keyed storeroom or classroom lever, no electrification?
No. The 5380LN is an electrified lock that requires a power supply and wire run through the frame and door. If you just need a mechanical keyed opening, look at a straight cylindrical lever such as the Hager 2580 Grade 2 storeroom with Withnell lever or the Cal-Royal AG05 Grade 2 storeroom lockset, both of which install with no wiring at all.
16) Can the 5380LN be used on a lead-lined door in a radiology suite?
No. Lead shielding is not available on the 5300LN series, so it should not be specified for x-ray or imaging room openings that require a shielded lock body. Those doors need a lock family that offers a lead-lined option.
17) The 5380LN is a fail safe lock. What do I use on a stair door that has to stay latched during a power loss?
A fail safe lock such as the Accentra 5380LN Pacific Beach unlocks when power is removed, which is not what most stair re-entry and secured storage doors want. For an opening that must remain secure without power, a mechanical storeroom lever is the straightforward choice - the Hager 2580 is a Grade 2 storeroom cylindrical lever for 1-3/8 inch to 2 inch doors, and the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt. Confirm the stair re-entry requirement with your local code official before selecting either.
18) If the classroom door does not need to be electrified, what Grade 1 lever should I look at instead of the Accentra 5380LN?
The Dexter C1000 classroom cylindrical lever is Grade 1, keyed, with a clutching lever, for doors 1-3/8 inch to 1-3/4 inch, and the C1000 classroom security version adds inside keyed control of the outside lever. The Cal-Royal AG03 is a Grade 2 classroom lever with a 6-pin Schlage C keyway and 2-3/4 inch backset. The Accentra 5380LN Pacific Beach is a Grade 2 electrified cylindrical lever, so it only makes sense on a classroom door that is tied into an access control system.
19) My door is 1-3/8 inch thick. Will the Accentra 5380LN work, or should I pick something else?
The Accentra 5380LN Pacific Beach is adjustable from 1-3/4 inch to 2 inch as standard, with 1-3/8 inch and 2-1/4 inch versions built to order. If you would rather use an off-the-shelf lever that already covers 1-3/8 inch, the Hager 2525 Grade 2 entry lever and Hager 2510 Grade 2 passage lever both cover 1-3/8 inch to 2 inch, and the Falcon K101 Grade 1 passage lever covers 1-3/8 inch to 2-1/4 inch. Those are mechanical, so they do not replace the electrified control the 5380LN provides.
20) Can I put a residential-grade lever on the same corridor doors where we are using the Accentra 5380LN?
Only where the traffic and the spec allow it. The Accentra 5380LN Pacific Beach is ANSI/BHMA A156.2 Series 4000 Grade 2 and UL/cUL fire rated up to 3 hours. Grade 3 levers such as the Kwikset 200BRNL Breton passage, the Callan Artino entrance, and the Master Lock BC Series keyed entry are built to a lighter cycle standard, so on a commercial corridor or a fire-rated opening they will not carry the same rating. For a lighter-duty interior door behind the corridor they are a reasonable choice.
21) Does the 5380LN hold the latch secure when the door is shut?
A guardbolt deadlocks the latchbolt whenever the door is closed, and it is standard on all locking functions in the 5300LN series. That is what stops a latch from being carded or shimmed on a corridor door. The mechanism itself is heavy-gauge steel, zinc-plated and dichromated.
22) I need matching non-latching trim for the inactive leaf next to a 5380LN opening. What do I order?
The Accentra 5380LN Pacific Beach is a latching electrified cylindrical lever and is not made as a dummy. For the inactive leaf, use a single dummy trim lever: the BEST 7KC single dummy trim is Grade 2 medium duty, and the BEST 9K 1DT single dummy trim is Grade 1 heavy duty. The Callan Bentley is another Grade 2 dummy lever. None of these operate a latch - they are pull trim only - so the lever style will not match Pacific Beach exactly.
23) Is the Corbin Russwin 585F715 lever an alternative to the Accentra 5380LN?
No. The 585F715 is a lock lever component for the ED8000 pushpad exit device and the CL3300 cylindrical lock series - it is trim, not a complete lockset. The Accentra 5380LN Pacific Beach is a complete Grade 2 electrified cylindrical lever lock with its own latch and chassis. Order the 585F715 only when you are replacing the lever on an existing Corbin Russwin device.
