Accentra 5390LN Pacific Beach ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$620.00
$302.27

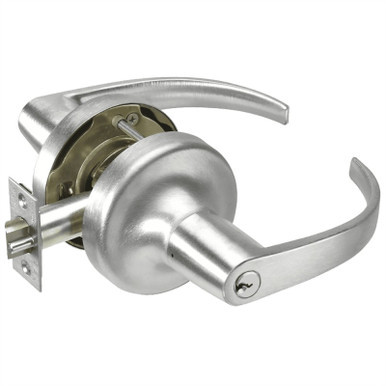

Yale Commercial Yale 5390LN Pacific Beach Grade 2 Fail Safe Electrified Cylindrical Lever Lock YAL-PB-5390LN

Accentra 5390LN Pacific Beach Grade 2 Fail Safe Electrified Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: PB-5390LN-626 12V
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$620.00
$302.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Yale 5300LN Series Lever Locks

Manufactured for the industrial, commercial and institutional markets, 5300LN Series locksets feature security, dependability and versatility in attractive designs and finishes that fulfill all decorative requirements and blend with any architectural décor.

FEATURES & BENEFITS

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

CERTIFICATIONS

  • ANSI/BHMA Grade 2 certified
  • ADA compliant for ease of accessiblity

DOWNLOAD & RESOURCES

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Cylindrical
Handle Type:
Lever
Product Model:
YAL-5390LN
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra PB-5390LN-626 12V – Frequently Asked Questions

1) What does fail safe mean on the Accentra 5390LN electrified lever lock, and when should I use it instead of fail secure?
Fail safe means the lock unlocks when power is removed. Cut the power to the 5390LN and the outside lever gives free access, which is what you want on a stairwell or an egress-path opening where people have to get out and back in during an alarm or power loss. If you need the opening to stay locked when power drops (typical for a secured storeroom or an exterior perimeter door), you want a fail secure electrified lock instead, not this one. Either way the latch is always retractable from the inside lever.
2) Will the Yale/Accentra 5390LN fit a 1-3/4 inch commercial door?
Yes. The 5300LN chassis adjusts from 1-3/4 inch to 2 inch door thickness as supplied, which covers the standard 1-3/4 inch commercial door. Thicker doors up to 2-1/4 inch are available to order. Standard backset is 2-3/4 inch, with 2-3/8 inch, 3-3/4 inch and 5 inch extension links available if your door is already bored off-standard.
3) Do I need to order the 5390LN handed for a left or right hand door?
No handing to specify. The 5390LN lever lock is non-handed, and the front is universal for both flat and beveled door edges, so one part covers either swing. The strike is reversible too. That makes it easier to stock as a spare across a building with mixed openings.
4) What voltage do I need for the 5390LN electrified lever lock?
It is built as either 12VDC or 24VDC, and you pick the one that matches your power supply or access control board when you order. There is no field-selectable dual-voltage setting here, so confirm what the panel is putting out before you choose.
5) Will the 5390LN latch into the strike already in my frame?
The latchbolt has a 1/2 inch stainless steel throw, which is standard cylindrical lock throw and will engage a normal ANSI strike prep. It ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door; other lip lengths can be ordered if your frame is set back further or the door is in a deeper reveal. A guardbolt deadlocks the latchbolt whenever the door is closed, so the latch cannot be shimmed.
6) Can the 5390LN go on a fire rated door?
Yes. The 5300LN series is UL/cUL fire rated up to 3 hours, and it is also windstorm certified (check your local code for the specific assembly). It carries ANSI/BHMA A156.2 Series 4000 Grade 2 certification and is ADA compliant, which is what the lever handle buys you over a knob on an accessible route.
7) What is the closest equivalent to the Accentra 5390LN fail safe electrified lever if a Grade 1 lock is specified?
The Corbin Russwin CL33903 is the closest match on function. It is a Grade 1 fail safe electrified cylindrical lever lock offered in 12VAC/DC and fits doors 1-3/4 inch to 2 inch. The Accentra 5390LN Pacific Beach is the Grade 2 fail safe electrified cylindrical lever, offered in 12VDC and 24VDC. If the drawing calls for ANSI/BHMA Grade 1 on the opening, the CL33903 meets that level; if Grade 2 satisfies the spec, the 5390LN covers the same fail safe electrified function.
8) I need a 24VDC electrified cylindrical lever - does the Corbin Russwin CL33903 work?
The Corbin Russwin CL33903 fail safe electrified cylindrical lever is listed at 12VAC/DC. The Accentra 5390LN Pacific Beach is built in both 12VDC and 24VDC, so on a 24-volt access control power supply the 5390LN is the one that matches the voltage without a converter or a separate 12-volt supply at the door.
9) Is a keypad leverset like the Delaney LP250 a substitute for the 5390LN?
No. The Delaney LP250 is a Grade 2 electronic keypad leverlock that manages credentials at the door itself, and the Lockey 2835 and 1150 are mechanical pushbutton keyless lever sets. The Accentra 5390LN Pacific Beach is a fail safe electrified cylindrical lever controlled by an external access control system through 12VDC or 24VDC power - it unlocks when power is removed. If the opening is tied to a card reader, panel, or fire alarm release, a standalone keypad lock will not perform that role.
10) How is the 5390LN keyed, and can I get it in a 7-pin cylinder for my masterkey system?
It comes standard with a brass 6-pin keyed-random cylinder and two keys. A 7-pin cylinder is not offered in the 5300LN series, so if your facility masterkey system is built on a 7-pin bottom you will need to specify keying accordingly or use a different chassis. Keyed random means each lock ships on its own random key unless you order keying to your system.
11) I just need keyless code entry on a door, not an access control tie-in. Is the 5390LN the wrong lock?
Yes, wrong tool. The 5390LN is an electrified lock that has to be wired to a power supply and controlled by a card reader or access panel. If you want standalone code entry with no wiring, look at a mechanical pushbutton lever like the Lockey 2835 (1-3/16 inch to 2 inch doors) or the Lockey 1150 heavy duty keypad lever (1-1/8 inch to 2 inch doors), or a Grade 2 electronic keypad lever such as the Delaney LP250.
12) Can the 5390LN be used on an X-ray or radiology room door?
No. Lead shielding is not available on the 5300LN series, so it should not be specified for a shielded X-ray or imaging room opening. Those doors need a lock with a lead-lined chassis option.
13) Will the Pacific Beach lever match the other 5300LN locks already on my building's doors?
Pacific Beach is one lever design within the 5300LN family, so it matches other 5300LN locks on chassis, prep and finish codes but the lever shape itself is specific to Pacific Beach. If the existing doors carry a different 5300LN lever design, the roses and function will line up but the handle profile will not match visually. Ordering the same finish code keeps the openings consistent even across different functions in the series.
14) What should I use instead of the 5390LN on an opening that does not need electrification?
The Accentra 5390LN Pacific Beach is an electrified fail safe cylindrical lever, so it needs power run to the door. For a mechanical-only Grade 2 opening, the Hager 2580 is a Grade 2 storeroom cylindrical lever for 1-3/8 to 2 inch doors, the Hager 2525 is a Grade 2 commercial cylindrical entry lever in the same thickness range, and the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt. Any of those hold the same grade level without a power transfer hinge or wiring.
15) Which lock do I pair with the 5390LN on doors in the same run that only need free passage?
For non-latching or passage openings alongside the Accentra 5390LN Pacific Beach, the Falcon B101 is a Grade 2 non-handed cylindrical passage lever and the Design Hardware J75 is a Grade 2 passage lever lockset for 1-3/4 inch doors. For dummy trim on inactive leaves, the BEST 7KC single dummy trim cylindrical lever is Grade 2. All three hold the same Grade 2 level as the 5390LN across the opening group.
16) The 5390LN fits 1-3/4 to 2 inch doors - what else covers a thinner 1-3/8 inch door?
The Accentra 5390LN Pacific Beach is adjustable from 1-3/4 inch to 2 inch as standard, with 1-3/8 inch and 2-1/4 inch versions available to order. Among peers, the Hager 2510 and Hager 2525 cover 1-3/8 to 2 inch, the Cal-Royal AG05 covers 1-3/8 to 1-3/4 inch, and the Falcon K101 Grade 1 passage lock covers 1-3/8 to 2-1/4 inch out of the box. Those are mechanical locks, so on an access-controlled thin door the 5390LN ordered for 1-3/8 inch is the way to keep the electrified function.
17) Can I use a Kwikset or Callan lever in place of the 5390LN in a commercial building?
Those sit at a different duty level. The Kwikset 200BRNL Breton passage and 300BRNL Breton privacy levers are Grade 3, as are the Callan Artino entrance and Asheville passage leversets and the Cal-Royal AUS00. The Accentra 5390LN Pacific Beach is a Grade 2 commercial cylindrical lever certified to ANSI/BHMA A156.2 Series 4000 and UL/cUL fire rated up to 3 hours. On a rated commercial opening carrying access control, the Grade 3 residential-style levers will not answer the spec.
18) Which finishes does the Pacific Beach 5390LN come in, and which ones hold up outdoors?
Eleven finish choices: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, BSP black suede powder coat and WSP white suede powder coat. 605 and 606 are PVD as standard and PVD is offered on 613, and PVD is the lifetime-finish process, so those are the ones to pick for exterior or high-wear openings rather than the painted or powder coat options.
19) What is the difference between the Accentra 5390LN and the Corbin Russwin CL3110 for a controlled opening?
The Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet cylindrical lever for 1-3/4 to 2 inch doors and is fire rated, but passage function means it never locks. The Accentra 5390LN Pacific Beach is the Grade 2 fail safe electrified cylindrical lever that is switched by 12VDC or 24VDC power. The CL3110 suits a door that only needs latching and abuse resistance; the 5390LN suits a door whose locked state is controlled by a system.
