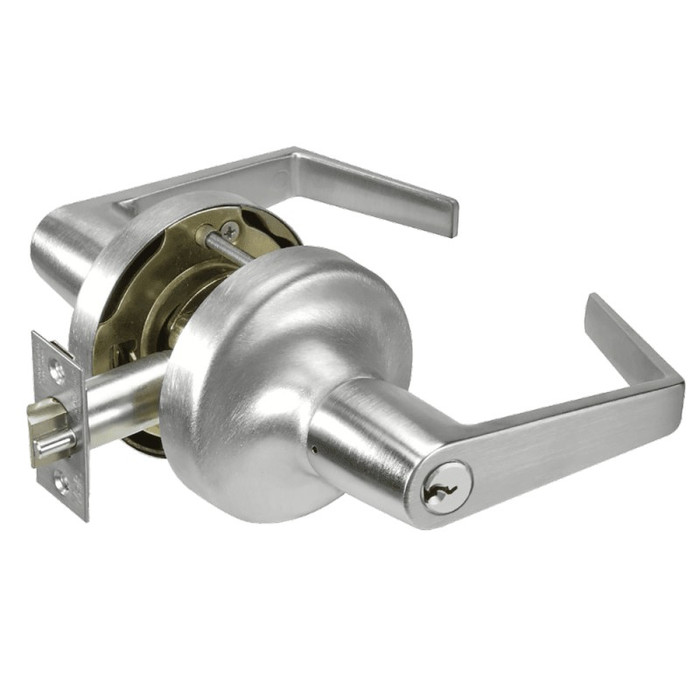

Yale Commercial Yale 5391LN Augusta Grade 2 Fail Secure Electrified Cylindrical Lever Lock YAL-AU-5391LN

Accentra 5391LN Augusta Grade 2 Fail Secure Electrified Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: AU-5391LN-626 12V
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$620.00
$302.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Yale 5300LN Series Lever Locks

Manufactured for the industrial, commercial and institutional markets, 5300LN Series locksets feature security, dependability and versatility in attractive designs and finishes that fulfill all decorative requirements and blend with any architectural décor.

FEATURES & BENEFITS

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

CERTIFICATIONS

  • ANSI/BHMA Grade 2 certified
  • ADA compliant for ease of accessiblity

DOWNLOAD & RESOURCES

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Cylindrical
Handle Type:
Lever
Product Model:
YAL-5391LN
Lever Design Name:
Augusta Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra AU-5391LN-626 12V – Frequently Asked Questions

1) What does fail secure mean on the Accentra 5391LN electrified lever lock, and what happens if power drops?
Fail secure means the outside lever stays locked when power is removed. On the 5391LN Augusta, energizing the lock releases the outside lever; cut the power and the outside lever locks again. The inside lever always retracts the latch for free egress. Pick fail secure for exits and stair doors where you want the opening secured on a power failure, and a fail safe lock instead where code or the fire alarm interface requires the door to unlock when power drops.
2) Do I have to pick 12VDC or 24VDC for the Yale/Accentra 5391LN?
Yes, voltage is an order choice, not field selectable. The 5391LN is built in 12VDC and 24VDC, and each of the 10 finishes is offered in both. Match it to the power supply and access control board already feeding the door before you order.
3) What backset does the 5391LN come with, and can I use it on a 2-3/8 inch prep?
Standard backset is 2-3/4 inches. Extension links are available to order for 2-3/8 inch, 3-3/4 inch and 5 inch backsets, so a door already bored at 2-3/8 inches can be covered, but that link has to be specified with the order rather than added later.
4) Will the 5391LN latch into the strike already in my frame?
The latchbolt throws 1/2 inch in stainless steel, which is the normal cylindrical lock throw, so an existing ANSI cylindrical strike prep will usually take it. The lock ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door, and other lip lengths can be ordered when the frame is set back further. All strikes are reversible. A guardbolt deadlocks the latch once the door closes, so the latch cannot be carded.
5) Can I use the 5391LN on a fire rated door?
Yes. The 5300LN series is UL/cUL fire rated up to 3 hours and it is also Windstorm certified, though you should confirm the Windstorm requirement against local code for your opening. It is ANSI/BHMA A156.2 Series 4000 Grade 2 and ADA compliant. Lead shielding is not offered on this series, so it is not an option for X-ray rooms.
6) What is the difference between the Accentra 5391LN and the Corbin Russwin CL33903 electrified lever?
Both are electrified cylindrical lever locks, but the 5391LN is a Grade 2 fail secure lock, and the Corbin Russwin CL33903 is a Grade 1 fail safe lever rated for 1-3/4 inch to 2 inch doors, offered in a 12VAC/DC build. Fail safe unlocks the outside lever when power is lost; fail secure keeps it locked. Pick by which way the door has to behave on a power failure first, then by grade: Grade 1 for heavy institutional traffic, Grade 2 for standard commercial offices and multi-family corridors.
7) What is the closest electrified cylindrical lever lock to the Accentra 5391LN Augusta if I need a Grade 1 lock instead of Grade 2?
The Corbin Russwin CL33903 electrified cylindrical lever lock is the Grade 1 counterpart. It is a fail safe lever operating on 12VAC/DC and fits doors 1-3/4 inch to 2 inch thick. The 5391LN Augusta is an ANSI/BHMA Grade 2 fail secure electrified cylindrical lever lock offered in 12VDC and 24VDC. Note the functional difference: fail safe unlocks on power loss, fail secure stays locked, so confirm which behavior the opening and the fire alarm interface require before substituting.
8) I need a fail safe electrified lever, not fail secure. What should I order?
The Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever lock with an NZ lever and D rose, running on 12AC/DC and rated for 1-3/4 inch to 2 inch doors. The Accentra 5391LN Augusta is a fail secure electrified cylindrical lever, so it holds the outside lever locked when power is removed. For egress-side or alarm-released openings that must unlock on power loss, the fail safe CL33903 is the one to specify.
9) Do I need to order the 5391LN handed left or right?
No handing to specify. The 5300LN lever locks are non-handed and the fronts are universal for both flat and beveled door edges, so one part covers either swing. That is useful for a property manager stocking spares across a building.
10) What cylinder and keying comes with the 5391LN, and can I get 7-pin?
It ships with a brass 6-pin cylinder, keyed random, and two keys. Seven-pin is not offered on the 5300LN series, so if your facility is standardized on a 7-pin large format system this lock will not key into it as supplied.
11) I only need a keyed lever, not an electrified one. What else works on the same door?
If the opening does not need access control, a mechanical cylindrical lever in the same Grade 2 class covers it: the Hager 2580 storeroom lever fits 1-3/8 inch to 2 inch doors, the Cal-Royal AG05 storeroom lever with deadlocking latchbolt covers 1-3/8 inch to 1-3/4 inch, and the Cal-Royal AG03 classroom lever comes with a 2-3/4 inch backset and a 6-pin Schlage C keyway. All drop into the same 161 cylindrical prep as the 5391LN. Step up to Grade 1 with the Falcon K101 or the Dexter C1000 if the door sees institutional traffic.
12) Is a cylindrical electrified lever like the 5391LN enough, or do I need a mortise lock?
A cylindrical lock like the 5391LN mounts in a standard bored prep, which makes it the faster and cheaper way to electrify an existing door, and at Grade 2 with a 3 hour fire rating it handles office, multi-family and light institutional traffic. Go to a mortise lock when the door is already mortise prepped, when you need a deadbolt combined with the latch, or when the opening sees the kind of abuse that calls for Grade 1. The 5391LN throws a 1/2 inch latchbolt only, with no deadbolt.
13) Can a keypad leverset replace the Accentra 5391LN Augusta for access control?
They solve access differently. The Delaney LP250 is a Grade 2 electronic keypad leverlock and the Lockey 2835 is a mechanical pushbutton keyless lever for doors 1-3/16 inch to 2 inch thick; both manage entry at the door with no wiring back to a panel. The Accentra 5391LN Augusta is a fail secure electrified cylindrical lever that takes its unlock signal from a 12VDC or 24VDC access control system, so it is the choice when the door must be released by a card reader, intercom, or central controller.
14) Is the Corbin Russwin 585F715 lever an alternative to the 5391LN?
No. The Corbin Russwin 585F715 is a Grade 1 lock lever for ED8000 pushpad exit devices and the CL3300 cylindrical lock series, meaning it is trim that mounts to an existing device or chassis rather than a complete lock. The Accentra 5391LN Augusta is a complete electrified fail secure cylindrical lever lockset with its own chassis, latch, and strike. Use the 585F715 only when you already have the host device on the door.
15) For a high-abuse opening where Grade 2 is not enough, what heavy duty cylindrical lever should I look at?
The Falcon T101 is a Grade 1 heavy duty cylindrical passage lever with pressure release technology, the Falcon K101 is a Grade 1 heavy duty fire-rated passage lever covering 1-3/8 inch to 2-1/4 inch doors, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant fire-rated passage lever for 1-3/4 inch to 2 inch doors. All three are non-keyed passage functions. The Accentra 5391LN Augusta is Grade 2 and UL/cUL fire-rated up to 3 hours, with an electrified fail secure keyed function those passage locks do not provide.
16) My door is 1-3/8 inch thick. Which lever should I use instead of the 5391LN?
The Accentra 5391LN Augusta adjusts from 1-3/4 inch to 2 inch as standard, with 1-3/8 inch or 2-1/4 inch doors available to order. If you want a lock that covers 1-3/8 inch off the shelf, the Hager 2525 Grade 2 entry lever and Hager 2510 Grade 2 passage lever both list 1-3/8 inch to 2 inch, the Cal-Royal AG00 entrance lever lists 1-3/8 inch to 1-3/4 inch, and the Dexter C1000 asylum function covers 1-3/8 inch to 2 inch. None of those are electrified.
17) Which finishes does the 5391LN Augusta lever come in?
Ten finishes are offered on the electrified 5391LN: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, BSP black suede powder coat and WSP white suede powder coat. PVD is standard on 605 and 606, which holds up better than lacquered brass on a high-traffic entry. Every finish is built in both 12VDC and 24VDC.
18) Can I match the Augusta lever on the non-electrified doors in the same corridor?
Yes. Augusta is the lever design on the 5391LN, and it is a 5300LN series trim, so the other functions in that series carry the same lever and rose and the same finish codes. That lets you run one look down a corridor with only the access controlled openings taking the electrified 5391LN.
19) What is a non-keyed lever for the openings on the same job that do not need to lock?
For corridor and closet doors alongside an electrified opening, the Falcon B101 is a Grade 2 non-handed cylindrical passage lever, the Arrow GL01 is a Grade 2 passage lever with a Sierra lever for 1-3/4 inch to 2 inch doors, and the Hager 2510 is a Grade 2 passage lever covering 1-3/8 inch to 2 inch. None of these lock or accept a cylinder. The Accentra 5391LN Augusta is the electrified fail secure lever for the controlled openings on that same door schedule.
20) Can I use a Baldwin or Emtek lever on the same doors as the 5391LN to keep the look consistent?
Only on the non-functional openings. The Baldwin Estate 5103 with 5048 rose comes in passage, privacy, and half dummy versions, and Emtek Classic and Arts and Crafts leversets are offered as dummy pairs. Those are residential-style decorative trims without a keyed or electrified function. The Accentra 5391LN Augusta is a commercial Grade 2 electrified fail secure lever with an Augusta lever design offered in 13 finishes including 626 satin chrome and 613E, so match the finish rather than the lever family across a commercial door schedule.
21) What dummy lever pairs with an electrified lever on a pair of doors?
For the inactive leaf, the BEST 9K Series 1DT is a Grade 1 heavy duty single dummy trim cylindrical lever and the BEST 7KC Series 1DT is a Grade 2 medium duty single dummy trim; the Callan Bentley is a Grade 2 dummy lever. These mount trim only with no latch. The Accentra 5391LN Augusta carries the electrified fail secure function on the active leaf, so pick the dummy in the matching finish from its 13-finish range.
