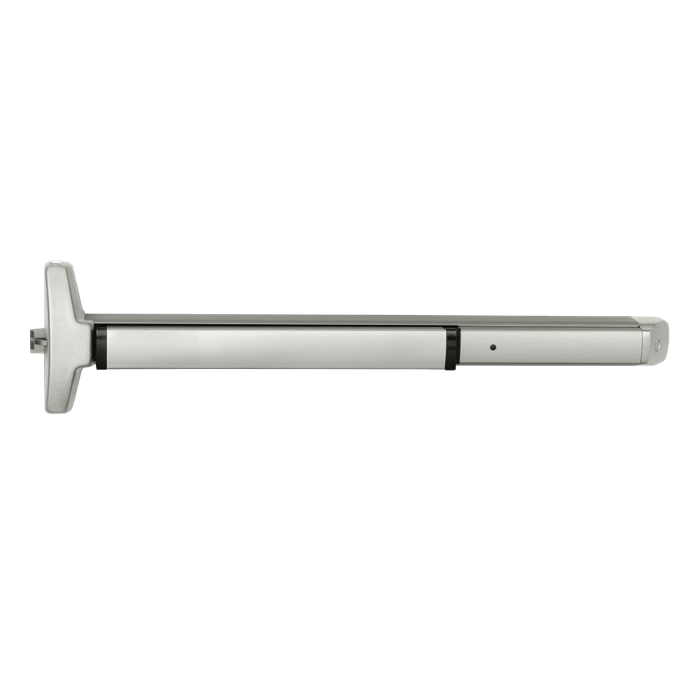

Accentra 6200 Series 36" Grade 1 Rim Exit Device, Pullman Latch Exit Bar with Narrow Stile Pushpad

Accentra 6200 Series 36" Grade 1 Rim Exit Device, Pullman Latch Exit Bar with Narrow Stile Pushpad

Product Overview

The Accentra 6200 Series is a heavy-duty, Grade 1 architectural exit device designed specifically for applications requiring a narrow stile profile, such as aluminum storefront doors with glass panels. Combining rugged durability with sleek, modern aesthetics, this rim exit device ensures reliable, safe egress for high-traffic commercial and institutional facilities. It features a reliable Pullman latchbolt for smooth operation and is non-handed for versatile installation. Backed by the legacy of ASSA ABLOY Accentra (formerly Yale), the 6200 Series delivers peace of mind where safety and security are paramount.

Key Features & Benefits

• Grade 1 Certified: ANSI/BHMA A156.3 Type 1 Grade 1 certified, guaranteeing top-tier quality, durability, and a long operational life under demanding conditions.

• Narrow Stile Design: Specifically engineered for doors with slim stiles (minimum 2"), making it an ideal choice for contemporary glass and aluminum storefronts.

• Pullman Latchbolt: Features a dynamic Pullman latchbolt, known for its ability to reduce friction and provide exceptionally smooth and quiet latching action. Note: Pullman latches are generally not used in fire-rated applications unless specified as a fire-rated assembly.

• High-Durability Rail: Constructed with a rugged aluminum rail design that can withstand heavy abuse.

• Architectural Finish: Available in a range of architectural finishes, including Satin Stainless Steel (630), to complement any modern building décor.

• Non-Handed: Simple field reversibility makes installation easier and reduces stocking requirements.

• 10-Year Warranty: Comes with a 10-year limited warranty, reflecting confidence in its enduring performance.

Technical Specifications

• Device Type: Rim Exit Device

• Stile Application: Narrow Stile (Fits minimum 2" stile)

• Device Length: 36" (Suitable for standard 3-foot doors)

• Latchbolt: Pullman Latch

• Handing: Non-Handed

• Certification: ANSI/BHMA A156.3, Grade 1

• Listing: UL listed for panic hardware. (Note: Non-fire rated)

• Door Thickness: Standard 1-3/4" (44mm)

• Projection: 3-1/4" active, 2-1/2" depressed

Applications

• Commercial Office Buildings

• Educational Facilities (Schools & Universities)

• Healthcare Facilities

• Retail Stores & Shopping Centers

• Government Buildings

Required Complementary Products (Sold Separately)

• Outside Trim: Leverage the wide variety of Accentra 6000 Series trims (e.g., lever, pull) to match specific functional and aesthetic needs. (e.g., Classroom, Night Latch, Passage functions).

• Cylinders: Standard large or small format cylinders may be required for locking functions.

Installation & Compatibility

Designed for straightforward surface mounting, the Accentra 6200 Rim device can be easily retrofitted onto existing doors. For new installations, it eliminates the complex door preparation required by mortise lock exit devices. Always refer to the manufacturer's installation instructions for specific mounting details and templets.
