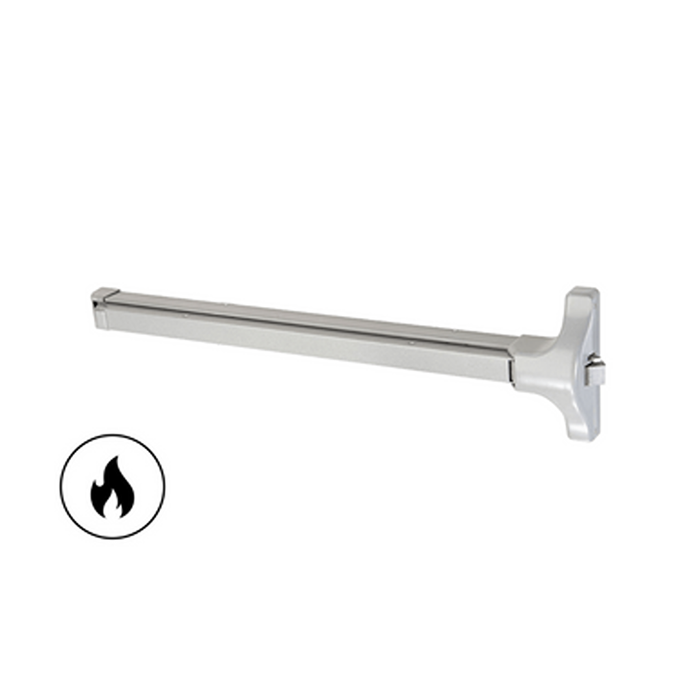

Yale 7200MF - Fire Rated 36" Grade 1 Rim Exit Bar, Narrow Stile Pushpad, Less Trim

Accentra 7200MF Fire Rated Rim Exit Device with Narrow Stile Pushpad for 36" Doors

(No reviews yet) Write a Review

Model: 7200MF 36 613E
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,014.00
$1,972.38
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 7200MF Fire Rated Rim Exit Device with Narrow Stile Pushpad for 36" Doors

Professional Grade 1 Fire Rated Exit Hardware Solution

The Accentra 7200MF rim exit device delivers Grade 1 performance with fire rating certification for 36" door applications. This narrow stile pushpad design provides the appearance of a narrow stile rim exit device for use on wide stile or flush doors, ensuring design continuity and pleasing aesthetics when matching exit devices throughout a facility. UL/cUL listed for fire labeled doors and certified to ANSI/BHMA A156.3 Grade 1 standards for demanding commercial applications.

Professional Features & Benefits

  • Certified ANSI/BHMA A156.3 Grade 1 exit hardware
  • UL/cUL listed for fire labeled (7200M) or panic exit doors
  • Windstorm certified (refer to local codes)
  • Optional removable mullions, keyed removable mullions, raised molding clearance kits and custom specialties are all available
  • Available with complete range of electrified options, including REX, electric dogging, outside trim monitoring, latch pullback, bolt status monitoring or delayed egress
  • Available in 16 standard finishes
  • 5-year mechanical warranty

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 7200M Series exit devices deliver professional-grade reliability with Grade 1 certification and fire rating compliance for demanding commercial applications. The 5-year mechanical warranty provides long-term protection and confidence in high-traffic installations. Engineered for demanding commercial applications where dependable performance and code compliance are essential.

Product Specs

Series:
7200M Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Stile Width:
Narrow Stile
Device Type:
Rim Devices
Wood Door Compatible:
No
Product Function:
Exit Only
Product Size:
36"
Fire Rating:
Yes
Product Category:
Exit Devices
Department:
Door Hardware
Product Type:
Rim Exit Devices

Accentra 7200MF 36 613E – Frequently Asked Questions

1) Will the Accentra 7200MF fit a wood door?
No. The 7200MF is not wood door compatible, so plan it for hollow metal or aluminum openings. If the opening is a wood door, specify a device the manufacturer lists for wood door prep instead.
2) The 7200MF says narrow stile pushpad, but my doors are wide stile flush doors. Is that a problem?
Not a problem. The narrow stile pushpad on the 7200M Series is an appearance choice, giving the look of a narrow stile rim device while mounting on wide stile or flush doors. Property managers use it to keep one consistent pushpad look across mixed openings in a building.
3) Does the Accentra 7200MF come with outside trim or a cylinder?
No, it is an exit only device, so there is no outside lever or pull and no cylinder in the box. Anyone needing outside access has to order trim separately; if the opening only needs free egress with no re-entry, exit only is exactly what you want.
4) Can I use a rim exit device like the 7200MF on a pair of doors?
Yes, with a mullion. A rim device latches into a strike at the edge of the opening, so on a pair you need a mullion between the leaves to give the latch something to catch. Accentra offers removable mullions and keyed removable mullions for the 7200M Series. If you cannot have anything in the clear opening, a rim device is the wrong type and you want vertical rods instead.
5) What is a fire rated rim exit device alternative to the Accentra 7200MF for a 48 inch door?
The Accentra 7200MF is built for 36 inch doors, so a wider opening needs a different device. The Delaney F9000 Series 693302 is a Grade 1 fire rated heavy duty rim type device for a 48 inch door in a stainless steel finish. Like the 7200MF, it is a rim device carrying a fire rating, so it suits a labeled opening where the door leaf is 48 inches rather than 36.
6) If the opening is not fire labeled, is there a simpler 36 inch rim exit device than the Accentra 7200MF?
Yes. The Accentra 7200MF carries a UL/cUL fire label for fire door assemblies, which is what you pay for on a labeled opening. On a non-labeled 36 inch door, the Delaney 8000 Series DLY-8000-36 is a Grade 1 rim type device for a 36 inch door with no fire rating. It covers the same door width and the same Grade 1 certification level without the fire label.
7) What electrified options can I specify on the Accentra 7200M Series?
The full electrified range is offered: request to exit (REX), electric dogging, outside trim monitoring, latch pullback, bolt status monitoring, and delayed egress. Decide the function before you order, since these are factory built into the device, and coordinate power transfer and door position switching with your access control contractor.
8) My door frame has a raised molding at the stop. Will the 7200MF strike still mount?
Accentra offers raised molding clearance kits for the 7200M Series, plus custom specialties, for exactly that condition. Order the clearance kit with the device so the rim strike sits correctly against the molded stop.
9) Is the Accentra 7200MF approved for windstorm openings?
The 7200M Series is windstorm certified, subject to local code. Confirm the specific assembly listing with the authority having jurisdiction, since windstorm approval applies to the whole door, frame, and hardware assembly rather than the device alone.
10) I need a 36 inch exit device with a built-in alarm instead of the Accentra 7200MF. What should I look at?
The Accentra 7200MF is an exit only rim device and is ordered less trim. If the requirement is a local alarm at the door, the Delaney 9000 Series DLY-9000-36ALC is a Grade 1 heavy duty rim type device for a 36 inch door supplied with an alarm kit and "C" cylinder. Note that the 9000 Series unit is not fire rated, so it is not a swap on a labeled opening.
11) How does the Stanley QED111ED compare with the Accentra 7200MF for a door that needs electric dogging?
Both are Grade 1 rim exit devices. The Accentra 7200MF is an exit only device, ordered without trim, and electrified options including electric dogging are offered within the 7200M Series. The Stanley Security QED111ED is a Grade 1 heavy duty rim device with hex dogging and electrified dogging, and it is an office/privacy/apartment function, meaning it is set up for outside trim and key control rather than exit only. Choose based on whether the outside of the door needs an operating trim.
12) Can any of these rim exit devices go on a wood door?
No. The Accentra 7200MF is not rated for wood door applications, and the same holds for the Delaney 8000 Series DLY-8000-36, the Delaney 9000 Series DLY-9000-36ALC and the Delaney F9000 Series 693302, all of which are listed as not wood door compatible. If the opening is a wood leaf, none of these four is the right device.
13) What finishes does the Accentra 7200MF rim device come in?
Five finish choices are orderable: 605 bright brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 630 satin stainless steel, and BSP black suede powder coat. The 7200M Series is produced in 16 standard finishes overall, so 630 satin stainless is the usual pick when matching existing commercial hardware.
14) Which of these 36 inch Grade 1 rim devices keeps a narrow stile look on a flush door?
The Accentra 7200MF uses a narrow stile pushpad, which gives the appearance of a narrow stile rim device while mounting on wide stile or flush doors, so exit hardware matches across a facility. The Delaney 8000 Series DLY-8000-36 and 9000 Series DLY-9000-36ALC are both Grade 1 rim type devices for 36 inch doors but are described as rim type without a narrow stile pushpad appearance. If aesthetic continuity with narrow stile devices elsewhere in the building matters, the 7200MF is the one specified for that.
