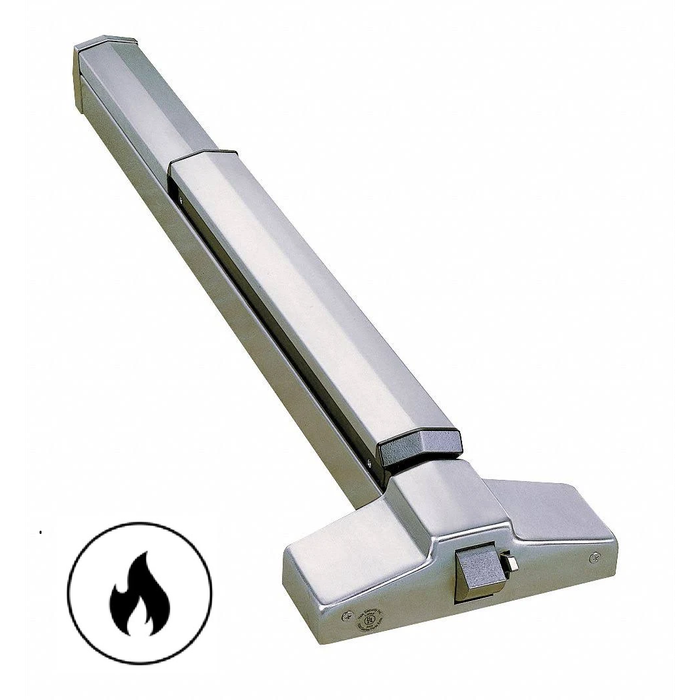

Accentra 7100F Fire Rated 48" Grade 1 Rim Exit Device with Wide Stile Pushpad

Accentra 7100F Fire Rated 48" Grade 1 Rim Exit Device with Wide Stile Pushpad

(No reviews yet) Write a Review

Model: 7100F 48 630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,768.12
$1,368.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 7100F Fire Rated 48" Grade 1 Rim Exit Device with Wide Stile Pushpad

Professional Fire-Rated Exit Device Solution

The Accentra 7100F delivers Grade 1 certified performance in a fire-rated 48" rim exit device designed for wide stile applications. This exit-only device features a Pullman latchbolt mechanism and accommodates standard 1-3/4" door thickness with non-handed installation flexibility. UL and ULC listed for fire safety compliance, the 7100F integrates seamlessly into commercial security and fire alarm systems while maintaining the clean aesthetic lines characteristic of the Yale 7000 Series.

Professional Features & Benefits

  • Cylinder Format: Large Format, Small Format
  • Door Thickness (Standard): 1-3/4"
  • Handing: Non-handed
  • Latchbolt Type: Pullman
  • Minimum Door Thickness: 1-3/4"
  • UL Listed: Yes
  • ULC Listed: Yes
  • Warranty: 5-year limited warranty
  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Fire-Rated Commercial Openings
  • Educational Facility Emergency Exits
  • Healthcare Institution Egress Points
  • Office Building Stairwell Doors
  • Retail Establishment Fire Exits
  • Industrial Facility Emergency Egress
  • Multi-Tenant Residential Fire Doors

Why Choose Accentra Quality?

Accentra 7100F exit devices deliver professional-grade reliability with Grade 1 certification and fire-rated performance for the most demanding commercial applications. The 5-year limited warranty and UL/ULC listings provide confidence in long-term performance and code compliance. Engineered for demanding commercial applications where dependable emergency egress and fire safety performance is essential.

Product Specs

Series:
7100 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Stile Width:
Wide Stile
Device Type:
Rim Devices
Wood Door Compatible:
No
Product Function:
Exit Only
Product Size:
48"
Fire Rating:
Yes
Product Category:
Exit Devices
Department:
Door Hardware
Product Type:
Rim Exit Devices

Accentra 7100F 48 630 – Frequently Asked Questions

1) Does the 48 inch Accentra 7100F need to be ordered left or right hand?
No handing to specify. The 7100F is non-handed, so one device covers either swing. That also makes it easier to stock a single part number across a building where the openings swing both ways.
2) Is the Accentra 7100F approved for a fire rated stairwell door?
Yes. The 7100F is a fire rated device and carries both UL and ULC listings, which is why it is used on stairwell doors, healthcare egress points and multi-tenant residential fire doors. Because it is fire rated it has no mechanical dogging, so the latch stays active at all times as fire door code requires.
3) Does the Accentra 7100F come with outside trim or a lever?
No trim is included. The 7100F is an exit-only device, meaning push to exit from the inside with no outside operation. If you need key or lever entry from the pull side, order Accentra/Yale exit device trim separately and match the cylinder format, which is available in large format and small format.
4) Is the wide stile pushpad on the 7100F a problem on an aluminum storefront door?
Likely yes. The 7100F has a wide stile pushpad, sized for the broad stiles of hollow metal doors. Narrow stile aluminum storefront leaves typically do not give you enough flat face to mount a wide stile chassis and pad. For those openings use a narrow stile rim device instead.
5) What is the closest fire-rated Grade 1 rim exit device to the Accentra 7100F for a 48 inch door?
The Delaney F9000 Series device, part number DLY-693302, is the nearest match: it is a Grade 1 fire-rated heavy duty rim type device sized for a 48 inch door in a stainless steel finish, the same rim mounting approach and the same 48 inch opening width the Accentra 7100F covers. Both are rated for metal doors rather than wood. The 7100F carries UL and ULC listing and uses a Pullman latchbolt with a wide stile pushpad, and it is supplied exit only with trim ordered separately.
6) The opening is a 36 inch door, not 48 inch - what rim exit device should I use instead of the Accentra 7100F?
The 7100F is built for a 48 inch opening, so for a 36 inch door look at the Delaney 8000 Series DLY-8000-36, a Grade 1 rim type device for a 36 inch door. If the 36 inch opening is a fire door, note that the 8000 Series device is not fire rated, so confirm the door's rating before specifying it.
7) Will a rim exit device like the 7100F work on a pair of doors without a mullion?
Not on its own. A rim device latches into a strike on the frame stop, so on a pair with no center post there is nothing for it to catch. For a pair, either add a removable mullion and run a rim device on each leaf, or switch to a surface vertical rod device that latches at the head and sill. On a single door, the rim 7100F is the straightforward choice.
8) What does the Pullman latchbolt on the 7100F mean for how it latches?
The 7100F uses a Pullman latchbolt, which pivots out of the way rather than sliding like a beveled deadlatch. It self-latches when the door closes against the rim strike, and it holds positive latching under fire conditions, which is part of why this device is UL and ULC listed. Pair it with the matching rim strike from the 7000 Series so the bolt engages fully.
9) What else does ZenSupply carry as a Grade 1 fire rated rim exit device for a 48 inch door?
The Delaney F9000 Series heavy duty rim device is the direct cross-brand equivalent: Grade 1, fire rated, sized for a 48 inch door, in a stainless steel finish, and like the Accentra it is not rated for wood doors. If your opening is not a fire door, the Delaney 8000 and 9000 Series rim devices are Grade 1 but not fire rated, and are catalogued for 36 inch doors.
10) Can I get the Accentra 7100F with a built-in local alarm?
The 7100F is a mechanical exit-only device with no alarm module. If you need an audible alarm on the exit itself, the Delaney 9000 Series heavy duty rim device is offered with an Alarm Kit "C" cylinder, though that one is not fire rated. On a fire door, keep the 7100F and tie the alarm into the building system with a separate door contact.
11) Is the 7100F the same device family as the older Yale 7000 Series so parts still interchange?
Yes, the 7100F is part of the 7000 Series architectural exit device line that Yale branded and Accentra now carries, so the series parts manual and installation instructions cover the 7100 and 7150 rim and squarebolt devices together. If you are maintaining a building already standardized on Yale 7000 Series rim devices, this keeps you on the same platform for strikes and trim.
12) Can I dog the Accentra 7100F open during business hours, or do I need a different device?
The Accentra 7100F is a fire-rated device supplied less dogging, so the pushpad cannot be held retracted - that is normal for fire door hardware. If the opening is not fire rated and you want the latch held down during occupied hours, the Stanley Security QED Series QED111ED is a Grade 1 heavy duty rim exit device with hex dogging and electrified dogging. Its function is listed as office/privacy/apartment rather than exit only.
13) What is the difference between the Accentra 7100F and the Stanley QED111ED exit device?
The Accentra 7100F is a 48 inch wide stile rim device in exit only function, fire rated with UL and ULC listing, Pullman latchbolt, non-handed, for 1-3/4 inch doors, with trim ordered separately. The Stanley Security QED111ED is a Grade 1 heavy duty rim exit device configured with hex dogging and electrified dogging, and its function is office/privacy/apartment - meaning it is set up to work with outside trim for controlled re-entry rather than being egress only.
14) What finishes does the Accentra 7100F 48 inch rim device come in?
Four finishes: 605 bright brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, and 630 satin stainless steel. If you are matching existing openings in a building, 630 satin stainless is the usual commercial standard and 613E is the dark bronze match.
15) If the 48 inch opening is not a fire door, do I still need the Accentra 7100F?
The 7100F is the fire-rated 48 inch option, UL and ULC listed, and it works on non-rated openings as well. If the fire listing is not required and you want dogging capability, the Stanley QED111ED offers hex and electrified dogging, and the Delaney 8000 and 9000 Series are non-fire-rated Grade 1 rim devices, though both of those Delaney items are built for a 36 inch door.
