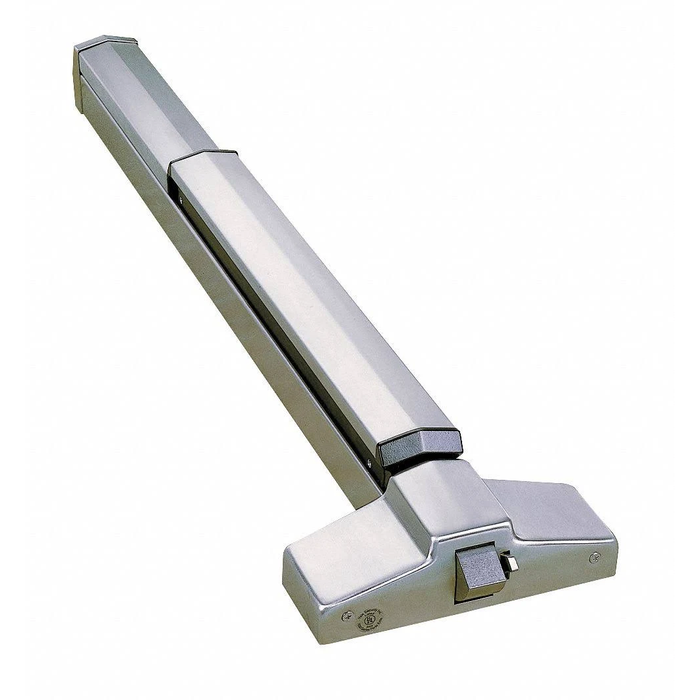

Accentra 7100 Series 48" Grade 1 Rim Exit Device with Wide Stile Pushpad

Accentra 7100 Series 48" Grade 1 Rim Exit Device with Wide Stile Pushpad

(No reviews yet) Write a Review

Model: 7100 48 630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,497.85
$1,399.17
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 7100 Series 48" Grade 1 Rim Exit Device with Wide Stile Pushpad

Professional Grade 1 Exit Device Solution

The Accentra 7100 Series delivers professional-grade exit device performance with ANSI/BHMA Grade 1 certification for demanding commercial applications. This 48" rim exit device features wide stile pushpad design and accommodates standard 1-3/4" door thickness with non-handed installation flexibility. UL and ULC listed for comprehensive code compliance, this exit-only device provides reliable egress control when paired with compatible Accentra trim components.

Professional Features & Benefits

  • Cylinder Format: Large Format, Small Format
  • Door Thickness (Standard): 1-3/4"
  • Handing: Non-handed
  • Latchbolt Type: Pullman
  • Minimum Door Thickness: 1-3/4"
  • UL Listed: Yes
  • ULC Listed: Yes
  • Warranty: 5-year limited warranty
  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 7100 Series exit devices deliver professional-grade reliability with ANSI/BHMA Grade 1 certification and comprehensive UL/ULC listings for demanding commercial applications. The 5-year limited warranty provides added confidence for long-term performance. Engineered with clean, modern aesthetics and robust mechanical components, these devices ensure dependable egress control where both safety and appearance matter.

Product Specs

Series:
7100 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Stile Width:
Wide Stile
Device Type:
Rim Devices
Wood Door Compatible:
No
Product Function:
Exit Only
Product Size:
48"
Fire Rating:
No
Product Category:
Exit Devices
Department:
Door Hardware
Product Type:
Rim Exit Devices

Accentra 7100 48 630 – Frequently Asked Questions

1) Can I put this Accentra rim exit device on a wood door?
No. The 7100 Series rim device is not rated for wood door applications. Plan on hollow metal or an aluminum/glass opening with the correct stile width.
2) Does the 48 inch Accentra 7100 exit device need to be ordered left hand or right hand?
Handing isn't a factor. The 7100 Series rim device is non-handed, so one part number covers either swing. You set it up at install; the Pullman latchbolt works with the device as shipped.
3) Is a lever or pull included with the Accentra 7100, or does it only open from the inside?
Exit only. The device latches and releases from the push side and comes with no outside trim, so there's no key or lever access from the exterior unless you add trim. Accentra/Yale exit device trim is a separate order.
4) Is the Accentra 7100 a narrow stile device for an aluminum storefront door?
No, it's a wide stile pushpad device. On a narrow stile aluminum door the chassis and pad won't fit the stile, so you'd need a narrow stile rim device for that opening.
5) I need a 48 inch rim exit device on a fire rated opening - can I use the Accentra 7100?
No. The Accentra 7100 Series 48 inch rim device is not fire rated, so it belongs on non-rated openings only. For a 48 inch fire rated door, the Delaney F9000 Series heavy duty rim device is fire rated and Grade 1, in a stainless steel finish. Both are rim devices for 48 inch doors, so the door and frame layout is comparable; the rating is the difference that decides the opening.
6) Does the Accentra 7100 rim device take a small format interchangeable core?
Both cylinder formats are supported, large format and small format, so an SFIC housing works if that's what your facility is keyed to. Note the cylinder and the trim that carries it are ordered separately from the exit-only device.
7) Should I use a rim exit device or a vertical rod device on this opening?
A rim device like the 7100 latches into a strike on the frame at the lock edge, which makes it the simple choice for a single door or for a pair with a center mullion. If you have a pair with no mullion, a rim device has nothing to latch into, and you need a vertical rod device instead.
8) Is the Accentra 7100 Grade 1, and what else in Grade 1 could I use instead?
Yes, the 7100 Series carries ANSI/BHMA Grade 1 certification for heavy commercial traffic. Comparable Grade 1 rim devices include the Delaney 8000 Series and the heavier-duty Delaney 9000 Series, which is offered with an alarm kit and C cylinder if you want local alarm on the exit.
9) Which of these Grade 1 rim devices lets me match brass or bronze hardware already on the building?
The Accentra 7100 Series 48 inch rim device is offered in 605 bright brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 630 satin stainless steel and BSP black suede powder coat. By comparison the Delaney F9000 Grade 1 fire rated rim device for a 48 inch door is catalogued in a stainless steel finish. If the opening has to read brass or bronze, the Accentra covers those tones.
10) Can I put the Accentra 7100 or any of the comparable Grade 1 rim devices on a wood door?
No. The Accentra 7100 Series 48 inch rim device is not wood door compatible, and the Delaney F9000, 8000 and 9000 Series Grade 1 rim devices carry the same restriction. All of these are intended for metal door applications, so a wood door opening needs a device specifically rated for it rather than any of these.
11) The Accentra 7100 is exit only - what should I look at if I need lever trim function built in?
The Accentra 7100 Series is an exit only device, so outside access requires separately ordered Accentra exit device trim. If you would rather source a device already catalogued with a keyed outside function, the Stanley Security QED Series Grade 1 heavy duty rim device is listed with an office/privacy/apartment function and rim hex dogging with electrified dogging. Functionally the Accentra gives you egress plus your choice of trim; the QED comes defined around its outside function.
12) I want alarmed egress on a back door - is the Accentra 7100 the right device?
The Accentra 7100 Series is a plain exit only rim device with a Pullman latchbolt and no alarm function. If the door needs local alarm on egress, the Delaney 9000 Series Grade 1 heavy duty rim device is supplied with an alarm kit and a "C" cylinder, sized for a 36 inch door and non fire rated. Use the Accentra where egress alone is required and the Delaney 9000 where the exit needs to annunciate.
13) Is the Stanley QED rim device a drop-in replacement for an Accentra 7100 exit only device?
Not as a like for like swap. Both are Grade 1 rim devices, but the Accentra 7100 Series is exit only with wide stile pushpad and 1-3/4 inch door thickness, while the Stanley QED is a rim hex dog device with electrified dogging and an office/privacy/apartment function. Substituting it changes the outside function and adds an electrified dogging requirement, so the door prep, trim and power provisions all need to be reviewed rather than assumed.
