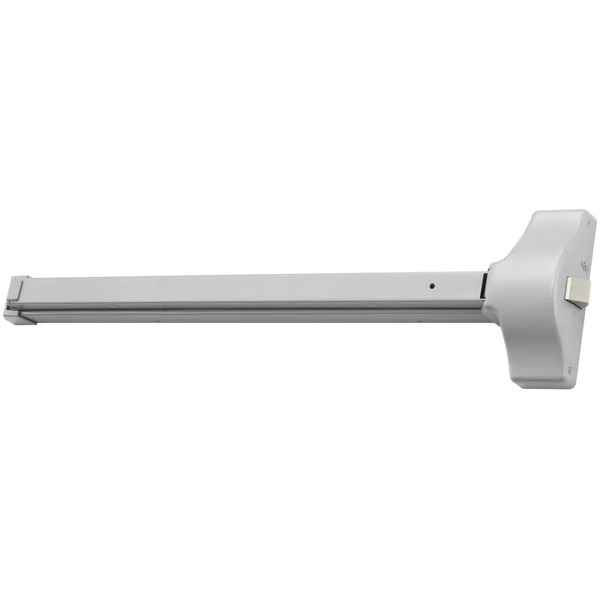

Accentra 1800 Series 48" Grade 1 Rim Exit Device with Wide Stile Design

Professional-Grade Exit Device for Commercial Applications

The Accentra 1800 Series 48" Grade 1 Rim Exit Device delivers superior protection with high-grade steel components engineered to resist wear and tear in demanding commercial environments. This wide stile rim exit device accommodates door thickness from 1-3/4" to 4-1/2" with non-handed installation flexibility. UL and ULC listed for code compliance, this exit-only device features Pullman latchbolt operation and small format cylinder compatibility.

Professional Features & Benefits

  • Cylinder Format: Small Format
  • Door Thickness (Standard): 1 3/4"
  • Handing: Non-handed
  • Latchbolt Type: Pullman
  • Maximum Door Thickness: 4 1/2"
  • Minimum Door Thickness: 1 3/4"
  • UL Listed: Yes
  • ULC Listed: Yes
  • Warranty: 3-year limited warranty
  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-3/4" and 4-1/2", stile width compatibility, and non-handed installation requirements.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for the 48" wide stile configuration.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for rim device mounting.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications ensuring proper alignment.
  5. Adjust Pullman latchbolt mechanism for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 1800 Series exit devices deliver professional-grade reliability with high-grade steel construction engineered to withstand the rigors of demanding commercial environments. UL and ULC listed for code compliance with 3-year limited warranty coverage. Designed for consistent performance in high-traffic applications where dependable egress hardware is essential for safety and security.

Product Specs

Series:
1800 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Stile Width:
Wide Stile
Device Type:
Rim Devices
Wood Door Compatible:
No
Product Function:
Exit Only
Product Size:
48"
Fire Rating:
No
Product Category:
Exit Devices
Department:
Door Hardware
Product Type:
Rim Exit Devices

Accentra 1800-48-689 – Frequently Asked Questions

1) Will the Accentra 1800 Series 48 inch rim exit device fit a 2-1/4 inch thick door?
Yes. The 1800 Series rim device covers door thickness from 1-3/4 inches up to 4-1/2 inches, with 1-3/4 inches as the standard. That range covers most commercial metal doors and heavier lead-lined or acoustic doors too.
2) Does the Accentra 1800 Series 48 inch exit device come with outside trim or a lever?
No. It ships as an exit only device, meaning push to exit from the inside and no outside operation. If you need key or lever access from the outside, order Accentra/Yale exit device trim separately.
3) The Accentra 1800 Series 48 inch rim exit device is not fire rated - what fire rated rim device covers a 48 inch labeled opening?
The Accentra 1800 Series 48 inch rim exit device carries a Fire Rating of No, so it suits openings that do not require a labeled exit device. For a 48 inch door on a labeled opening, the Delaney F9000 Series is a Grade 1 fire rated heavy duty rim type device sized for a 48 inch door in a stainless steel finish. Both are rim-applied Grade 1 devices, so the door prep concept is the same; the difference is the fire label.
4) Is the Stanley QED111ED a direct substitute for the Accentra 1800 Series rim exit device?
Not function for function. The Accentra 1800 Series 48 inch rim device is exit only, meaning outside trim is ordered separately. The Stanley Security QED series heavy duty rim device with hex dog and electrified dogging is cataloged with an Office/Privacy/Apartment function, so it is a lever-trim device rather than a bare exit-only unit, and it brings electrified dogging that the Accentra 1800 exit-only device does not. Both are Grade 1 rim devices. Choose the QED if the opening needs keyed outside entry and electric dogging; choose the Accentra 1800 if the door is push-to-exit only.
5) Do I need to order the Accentra 1800 Series exit device left hand or right hand?
Neither. The 1800 Series is non-handed, so one device covers both swings. That is useful for a property manager stocking spares across a building, since the same part fits any opening in the thickness range.
6) What cylinder does the Accentra 1800 Series rim exit device take?
It is built for a small format interchangeable core cylinder. That matters if you are keying the building into an existing SFIC system, since cores can be pulled and rotated with a control key instead of swapping hardware. On an exit only device the cylinder comes into play with the trim or dogging you specify.
7) Is a 48 inch rim exit device right for a pair of doors?
A rim device latches into a strike on the frame or mullion, so on a pair of doors you need a removable mullion between the leaves for each 1800 Series device to latch against. Without a mullion, a surface or concealed vertical rod device is the correct type instead. On a single 48 inch wide opening, the rim device is the straightforward choice.
8) Is the Accentra 1800 Series wide stile or narrow stile?
Wide stile. It is sized for hollow metal and wide stile aluminum doors, not for narrow stile storefront leaves. If your door has a narrow vertical stile at the lock edge, a narrow stile device is the correct choice.
9) What kind of latch does the Accentra 1800 Series use and will it work with a standard rim strike?
It uses a Pullman latchbolt, the deadlatching bolt standard on rim panic devices, which throws into a surface mounted rim strike on the frame or mullion. Verify the existing strike is a rim strike and not a mortise or vertical rod top strike before reusing it.
10) Does the Accentra 1800 Series exit device have alarm or electrified dogging?
No. The 1800 Series is a mechanical exit only device. If you need a local alarm, the Delaney 9000 Series rim device is offered with an alarm kit and cylinder, and the Stanley Security QED Grade 1 rim device is offered with electrified dogging.
11) I have a 36 inch door, not 48. Can I cut this one down?
Order by door width instead. The 48 inch 1800 Series device is sized for a 48 inch opening. For a 36 inch metal door, the Delaney 8000 Series Grade 1 rim device is a 36 inch equivalent.
12) Which Grade 1 rim exit devices work on a wood door if the Accentra 1800 Series does not?
The Accentra 1800 Series 48 inch rim device is not wood door compatible. Among the comparable Grade 1 rim devices, the Delaney F9000 Series 48 inch fire rated device and the Delaney 8000 Series 36 inch device are likewise not wood door compatible, so switching brands within this group does not solve a wood leaf. For a wood door, specify a device series rated for wood door mounting from the outset.
13) I need a local alarm on the exit door - can the Accentra 1800 Series exit-only rim device do that?
The Accentra 1800 Series 48 inch device is an exit-only rim device with a Pullman latchbolt and small format cylinder compatibility; alarm functionality is not part of it. If the requirement is an alarmed exit, the Delaney 9000 Series Grade 1 heavy duty rim device for a 36 inch door is supplied with an alarm kit and "C" cylinder. Note the size difference: the 9000 Series unit is for a 36 inch door, while the Accentra 1800 device here is 48 inch.
