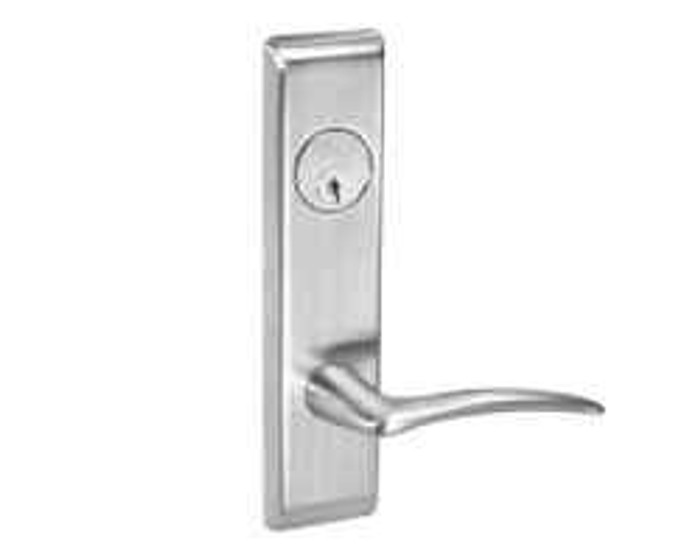

Accentra 8808FL Grade 1 Classroom Mortise Lock, Arcadia Lever

Accentra 8800FL Grade 1 Classroom Mortise Lock with Arcadia Lever

(No reviews yet) Write a Review

Model: ARR-8808FL-626-RH
From the 8800 Series Collection
$1,291.29
$769.30
Selected Finish is
Selected Rose/Escutcheon is
Selected Cylinder is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,291.29
$769.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 8800FL Grade 1 Classroom Mortise Lock with Arcadia Lever

Professional-Grade Mortise Lock for Commercial Applications

The Accentra 8800FL Grade 1 Classroom Mortise Lock delivers uncompromising strength and durability for commercial door applications. This ANSI/BHMA Grade 1 certified lock features a 2-3/4" backset, accommodates door thickness from 1-3/4" to 3-1/4", and includes a reinforced stainless steel deadbolt with 3/4" latchbolt throw. UL listed for 3-hour fire rated doors with heavy-duty vandal-resistant trim construction.

Professional Features & Benefits

  • Functions available for any industrial or commercial application
  • Field adjustable handing
  • Available in a variety of attractive trims and finishes
  • Status indicator options available to provide peace of mind on the locked/unlocked status of a door
  • Lever attached directly to escutcheon trim for added security (Specific to 8800 SL version)
  • Thrubolted security head screws offer added protection (Specific to 8800 SL version)
  • UL/cUL listed for 3-hour fire rated doors
  • Heavy-duty escutcheon trim for resistance against damage and vandalism
  • 10-year mechanical warranty
  • Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1 (8800FL with CN escutcheon & SL8800 meet Security Grade 1).

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 3-1/4", 2-3/4" backset, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facilities and Classrooms
  • Commercial Office Buildings
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities
  • Retail Establishments

Why Choose Accentra Quality?

Accentra 8800 Series mortise locks deliver professional-grade reliability with reinforced stainless steel deadbolt construction and heavy-duty vandal-resistant trim rated for ANSI/BHMA Grade 1 performance. Backed by a comprehensive 10-year mechanical warranty for added confidence and protection. Engineered for demanding commercial applications where dependable security and long-term durability are essential.

Manufacturer Resources

8800 Series Mortise Locks

Product Specs

Series:
8800 Series
Subcategory:
Lever Locksets
Keyed Function:
Single Cylinder
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Keyed:
Yes
Commercial/Residential:
Commercial
Handle Type:
Lever
Lock Function:
Classroom
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
8808
Collection:
8800 Series
Product Function:
Classroom
Lever Design Name:
Arcadia Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra ARR-8808FL-626-RH – Frequently Asked Questions

1) Will the Accentra 8800FL classroom mortise lock fit a 2-inch thick door?
Yes. The 8800FL mortise lock is built for door thicknesses from 1-3/4 inches up to 3-1/4 inches, so a 2 inch door is well inside the range. It uses a 2-3/4 inch backset, which is the standard commercial mortise backset, so the pocket prep on a typical commercial door matches. Most competing classroom mortise locks are single-thickness at 1-3/4 inches only, so this is the one to reach for on thick or unusual doors.
2) Do I have to order the Accentra 8808 mortise lock left hand or right hand, or is it reversible?
Handing is field adjustable on the 8800 Series lock body, so it can be set on site. That said, ordering is still done by hand: every configuration is offered as LH - Left Hand or RH - Right Hand, in satin chrome 626. Pick the hand of the opening you are working on and set it at install if the door changes.
3) What does classroom function mean on the Accentra 8808 mortise lock, and is it the right function for a school corridor door?
Classroom function means the outside lever is locked and unlocked by key from the corridor side, while the inside lever always retracts the latch for free egress. There is no inside button or turn, so a student cannot lock the door from within. That is the traditional classroom setup for corridor doors. If your district now wants the teacher to lock from inside the room during a lockdown, this is not that lock, you want a classroom security or intruder function instead, such as the BEST 45HCA intruder function lock body.
4) Is the Accentra 8800FL mortise lock approved for a 3-hour fire rated opening?
Yes. The 8800FL is UL/cUL listed for 3-hour fire rated doors, and it is certified to ANSI/BHMA A156.13, Series 1000, Operational Grade 1. For security grade, the 8800FL earns Security Grade 1 when specified with the CN escutcheon trim.
5) Should I order the Accentra 8808 with rose trim or the CN escutcheon?
Both trims are offered on the 8808 classroom lock with the Arcadia lever. Take the CN escutcheon if security grade matters: the 8800FL with CN escutcheon is what carries Security Grade 1, and the heavy-duty escutcheon resists prying and vandalism on abused openings. Rose trim is the cleaner look and is fine for interior doors that do not see that kind of traffic. Either way the lock body, backset, and function are the same.
6) Does the Accentra 8808 classroom mortise lock come with a cylinder, or do I key it myself?
Both ways. It is offered less cylinder, for locksmiths and facilities keying into an existing system with their own cylinders, and with a conventional cylinder in the PARA-E1R keyway. It is a single cylinder keyed lock, so one cylinder on the outside face only. If you are standardizing a building on an existing keyway, order less cylinder and supply your own.
7) Will the Accentra 8808 latch into the strike already in my frame?
The lock throws a 3/4 inch latchbolt and also carries a reinforced stainless steel deadbolt, both on a 2-3/4 inch backset. If the existing frame has a standard ANSI mortise strike prep with a deep enough box for the deadbolt, it will pick up. If the frame currently holds a cylindrical lockset strike, it will not, a mortise lock needs the full mortise strike prep and a routed pocket in the door edge.
8) What is a direct mechanical equivalent to the Accentra 8808FL classroom mortise lock from another manufacturer?
The closest straight equivalents are the Corbin Russwin ML2003, a Grade 1 mortise classroom lockset in the ML2000 Series for 1-3/4 inch doors, and the Cal-Royal NM8070, a heavy duty Grade 1 classroom mortise lockset with auxiliary deadlatch, also listed for 1-3/4 inch doors. Both are keyed classroom function like the Accentra 8808FL, which is a Grade 1 classroom mortise lock with a single cylinder keyed function. The Accentra covers a wider door thickness range of 1-3/4 to 3-1/4 inches, so on a thick door the Accentra is the one that still applies.
9) Is there an electronic classroom mortise lock we can use instead of the keyed Accentra 8808FL?
Yes. The Alarm Lock DL3500CR Trilogy is a Grade 1 electronic mortise lock with classroom function and 300 user codes, and the DL2700CR Trilogy T2 is a Grade 1 classroom electronic mortise lock with a weatherproof design; both are listed for 1-5/8 to 1-7/8 inch doors. The TownSteel FME-2000 is a Grade 1 heavy duty classroom mortise lockset with RFID technology for 1-3/4 inch doors. The Accentra 8808FL is a non-electronic mechanical lock keyed with a single cylinder, so credential management stays with the key system rather than user codes or cards.
10) What is a good cross-brand equivalent to the Accentra 8800FL classroom mortise lock?
The closest mechanical equivalents we carry are the Corbin Russwin ML2003 Grade 1 mortise classroom lockset and the Cal-Royal NM8070 Grade 1 classroom mortise lockset, both listed for 1-3/4 inch doors. The Accentra 8808 is the one to keep if your doors run thicker than 1-3/4 inches, since it covers up to 3-1/4 inches. If you want a classroom opening on credentials rather than keys, the TownSteel FME-2000 is a Grade 1 classroom mortise lockset with RFID.
11) Is the Accentra 8800FL an electronic or access control lock?
No, the 8808 is a purely mechanical key-operated mortise lock, no wiring, no power, no credentials. If the opening needs access control, the mortise alternatives we carry include the BEST 45HW wired electromechanical mortise lock at 12V/24V, the Command Access ML190 motorized mortise lock with field selectable EL/EU on 24VDC, and the standalone Alarm Lock DL3500CR Trilogy keypad mortise lock in classroom function.
12) Can I standardize a whole building on the Accentra 8800 Series if some doors need storeroom or office function instead of classroom?
Yes, that is the point of the 8800 Series. The 8808 is the classroom function within it, and the series offers functions covering industrial and commercial applications, with the same 2-3/4 inch backset, the same trim and finish choices, and status indicator options where staff need to see locked or unlocked at a glance. Spec the series once, then call out the function per opening.
13) The opening is an office or storeroom, not a classroom. What Grade 1 mortise lock replaces the Accentra 8808FL there?
Change the function rather than the platform. The Cal-Royal NM8050 is a heavy duty Grade 1 entrance/office mortise lockset with auxiliary deadlatch and the NM8080 is a heavy duty Grade 1 storeroom mortise lockset with an interchangeable core option, both for 1-3/4 inch doors. The Hager 3850E is a Grade 1 office mortise lock with lever and escutcheon, non-keyed, on a 2-3/4 inch backset for 1-3/4 to 2-1/2 inch doors. The Accentra 8808FL is built specifically as a classroom function lock on a 2-3/4 inch backset.
14) Can the Hager 3810E or Schlage PM010 be used in place of the Accentra 8808FL classroom lock?
No, those are passage devices and will not lock. The Hager 3810E is a Grade 1 passage mortise lock with escutcheon and a 2-3/4 inch backset, the Hager 3810S is the same passage function with a rose, and the Schlage PM010 is a Grade 1 non-keyed passage latch mortise lock for 1-3/4 inch doors. The Accentra 8808FL is a keyed classroom lock with a single cylinder and a reinforced stainless steel deadbolt, so it secures the opening where the passage models only latch it.
15) For a behavioral health or anti-ligature opening, what mortise lockset should we specify instead of the Accentra 8808FL?
Look at the TownSteel MRX-L-01, a Grade 1 heavy duty stainless steel anti-ligature lever mortise lockset in passage function for 1-3/4 inch doors, or the MRX-A-01, the same passage function with satin stainless ligature resistant arch trim. Marks USA also offers the 5PDN, a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant in satin stainless steel. All three are passage function, so they do not provide the keyed classroom control the Accentra 8808FL gives.
16) We need classroom intruder or lockdown capability. What goes beyond the Accentra 8808FL?
For lockdown from inside the room, the BEST 45HCA heavy duty mortise lockbody is offered with an intruder function, and the TownSteel FME-4000 is a Grade 1 heavy duty electronic intruder classroom mortise lockset with RFID technology for 1-3/4 inch doors. The Accentra 8808FL is a standard classroom function lock keyed with a single cylinder, with status indicator options available in the 8800 Series to show whether the door is locked.
17) Our opening needs access control tied to a card or mobile credential. What mortise lock do we use instead of the Accentra 8808FL?
For credentialed access, the Schlage Electronics LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader and mobile enabled deadbolt with LED, rated for 3 hour fire doors, right hand. Dormakaba's LX-I-M002 Saffire is an electronic RFID mortise lockset with BLE mobile access at BHMA Grade 2. The Accentra 8808FL is mechanical and non-electronic but is also UL/cUL listed for 3 hour fire rated doors, so the fire rating carries either way.
18) Is the Sargent 7925 an alternative to the Accentra 8808FL for a dormitory corridor door?
The Sargent 7925 is a heavy duty Grade 1 mortise lock in the 7900 Series with a corridor/dormitory exit function, rose trim and a single cylinder deadbolt. That function locks and unlocks differently from the Accentra 8808FL, which is a Grade 1 classroom function lock with a single cylinder keyed function on a 2-3/4 inch backset. Pick by function: dormitory exit for resident room corridors, classroom where the key controls the outside lever from the hallway side.
19) Will a Baldwin 6310 mortise lock body work where the Accentra 8808FL is specified?
Check the backset before you commit. The Baldwin 6310 entrance/storeroom mortise lock body is a 2-1/2 inch backset unit for doors 1-3/8 inch and over, and the 6301 entry/apartment body is also 2-1/2 inch backset for doors 1-3/4 inch and over. The Accentra 8808FL uses a 2-3/4 inch backset, so the door prep is not the same and the functions differ as well - storeroom and entrance/apartment versus classroom.
20) We need the outside lever to unlock electrically from the access control panel. What replaces the Accentra 8808FL?
Two options. The Schlage L9092EU with 03A trim is a heavy duty corridor function mortise lock with an electric lock/unlock outside lever, keyed outside, request to exit, running on 12/24VDC for 1-3/4 inch doors. The Command Access ML190 is a heavy duty motorized mortise lock with field selectable EL/EU operation, 24VDC, in storeroom function. The Accentra 8808FL is a non-electronic mechanical classroom lock, so it has no electrical control of the lever.
21) For a restroom or single-occupancy office door, what mortise lock is used instead of the Accentra 8808FL classroom function?
Use a privacy function. The Cal-Royal NM8440 is a heavy duty Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors, and the Hager 3840S is a Grade 1 privacy mortise lock with a 2-3/4 inch backset for 1-3/4 to 2 inch doors, matching the Accentra 8808FL backset of 2-3/4 inches. The Accentra is keyed classroom function, which is controlled by key from the outside rather than by a thumbturn from inside.
22) What finish does the Accentra 8808 Arcadia lever mortise lock come in?
Satin chrome, 626, across every handing, trim and cylinder combination. 626 is the standard commercial finish that matches most existing closers, exit devices and hinges in schools and office buildings, so it drops into an existing hardware set without a finish mismatch.
23) Is a mortise deadbolt like the Sargent 4874 an acceptable substitute for the Accentra 8808FL?
No. The Sargent 4874 is a double cylinder mortise deadbolt on a 2-3/4 inch backset in the 4870 Series, and the Kaba Ilco 185 Series is a no-handing mortise deadbolt. Those are bolt-only devices with no latch or lever. The Accentra 8808FL is a complete classroom lockset with an Arcadia lever, a 3/4 inch latchbolt throw and a reinforced stainless steel deadbolt, so it latches the door as well as securing it.
24) Is a Schlage PC10 cylindrical lock a lower-cost stand-in for the Accentra 8808FL?
They are not interchangeable in the door. The Schlage PC10 is a Grade 1 passage cylindrical lock, non-keyed, with a rose, for 1-3/4 inch doors, and it needs a bored cylindrical prep rather than a mortise pocket. The Accentra 8808FL is a mortise lock with a 2-3/4 inch backset and a keyed classroom function. If the door is already prepped for a mortise body, stay with a mortise classroom lock such as the Cal-Royal NM8070.
25) We need matching inactive trim on the second leaf of a pair. Does that come from the Accentra 8808FL?
No, the Accentra 8808FL is a keyed, functioning classroom mortise lock with an Arcadia lever, offered with either CN escutcheon or rose trim. For a non-functioning leaf, use a dummy device such as the Schlage L0170 half dummy trim, a Grade 1 non-keyed heavy duty mortise lever lock for 1-3/4 inch doors, or the Falcon MESC600DT dummy escutcheon lever trim for M9900 Series exit devices, which is fire rated.
