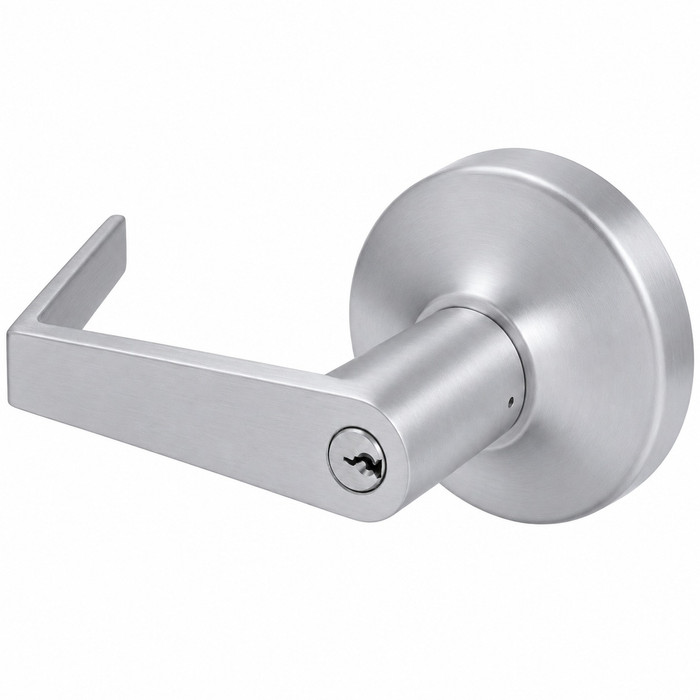

Accentra AU-541F Exit Device Night Latch Keyed Lever Trim

Accentra AU-541F Exit Device Night Latch Keyed Lever Trim with Augusta Lever Design

(No reviews yet) Write a Review

Model: AU541F 626
Selected Finish is
Selected Cylinder is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$733.59
$402.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra AU-541F Exit Device Night Latch Keyed Lever Trim with Augusta Lever Design

Professional Night Latch Trim Solution for Exit Device Applications

The Accentra AU-541F exit device trim features the Augusta lever design with ANSI Function 03 night latch operation for professional door hardware applications. This Grade 1 certified trim is designed for use with Accentra/Yale exit devices on both wood and metal doors, accommodating standard 1-3/4" door thickness with rose trim configuration for stock door installations.

Professional Features & Benefits

  • Door Compatibility: Standard 1-3/4" door thickness with rose trim design for stock door applications.
  • ANSI Grade 1 Certification: Certified ANSI/BHMA A156.3, Grade 1 for commercial-grade durability and performance standards.
  • Night Latch Function: ANSI Function 03 operation where key retracts latch bolt for controlled access and security.
  • Augusta Lever Design: Professional AU lever configuration provides ergonomic operation and architectural appeal.
  • Universal Exit Device Compatibility: Designed for use with Accentra/Yale exit devices on both wood and metal door applications.
  • Rose Trim Configuration: Rose x Lever trim style provides clean installation appearance for stock door preparations.
  • Rim Cylinder Classification: Compatible with rim cylinder applications for flexible keying options.

Technical Specifications

  • Application: 7100 Series
  • Cylinder Classification: Rim
  • Department: Door Hardware
  • Fire Rating: No
  • Includes Cylinder: No
  • Product Category: Exit Devices
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Device Trim
  • Trim Classification: Night Latch

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra exit device trim products deliver professional-grade reliability with ANSI/BHMA A156.3 Grade 1 certification for demanding commercial applications. The Augusta lever design combines ergonomic operation with architectural appeal, while the night latch function provides controlled access security. Engineered for compatibility with Accentra/Yale exit device systems where dependable performance is essential.

Product Specs

Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Includes Cylinder:
No
Application:
7100 Series
Cylinder Classification:
Rim
Fire Rating:
No
Trim Classification:
Night Latch
Product Category:
Exit Devices
Department:
Door Hardware
Product Type:
Exit Device Trims

Accentra AU541F 626 – Frequently Asked Questions

1) What does the night latch function on the Accentra AU-541F exit trim actually do?
On the AU-541F, the key retracts the latch bolt. That's ANSI Function 03 night latch: the lever itself is rigid and won't pull the door open, so the only way in from the outside is with a key. Push the bar from the inside and you're always out. It's the standard choice for a back door or a service entrance where nobody should be able to walk in but egress has to stay free.
2) Does the Accentra AU-541F trim come with a cylinder?
No cylinder is supplied with the AU-541F. It takes a rim cylinder, and you order that separately to match your keying. Two ways to buy it: the Rim Cylinder option, or L - Less Cylinder if you're pulling a cylinder from stock or keying into an existing system yourself. Locksmiths standardizing a building usually take the less-cylinder route so the keyway matches everything else on site.
3) Which exit devices does the Accentra AU-541F lever trim fit?
The AU-541F is built for the Accentra/Yale 7100 Series exit devices, on wood or metal doors. It is not a universal trim: exit trim mounts to a specific device chassis and prep, so a 7100 Series trim does not carry over to another maker's device. If you're trimming a Von Duprin, Sargent or Precision device, you need that brand's own trim.
4) Will the Accentra AU-541F fit a 1-3/4 inch door?
Yes, 1-3/4 inches is exactly what the AU-541F is built around, which is the standard commercial door thickness. It's a rose x lever trim for stock door prep, so it drops onto a normal factory-prepped opening without special routing.
5) Can I use the Accentra AU-541F night latch trim on a fire rated door?
No. The AU-541F is not fire rated, so keep it off labeled openings. Fire door assemblies need hardware that carries the listing, and substituting unlisted trim on a labeled door voids the label. Use it on non-labeled exterior and service doors instead.
6) What is the equivalent night latch exit device lever trim from another brand?
Several, and which one you take depends on the device you're trimming. The Sargent 704ET and 704-ETL are Grade 1 heavy duty night latch lever trims, key retracts latch, and the 704ET is field reversible. Sargent's 744 does the same job for 8700 and 8900 surface vertical rod and mortise devices with freewheeling trim. Corbin Russwin's VT957ET is a nightlatch escutcheon trim for the ED5000 Series. Dorma's YR03R is a wide stile nightlatch lever trim supplied less cylinder. All are trim for their own brand's devices, so match the device first, not the lever.
7) What is the difference between night latch trim and storeroom trim on an exit device?
On night latch trim such as the AU-541F, the key retracts the latch bolt and the lever does not; the outside lever stays rigid at all times. Storeroom trim keys the lever itself, so a key unlocks the lever for the throw and the lever then retracts the latch. Storeroom options include the Marks USA M195F lever/rose trim with spring loaded roses for the M9900 touchbar, the Pamex E9000 Grade 1 storeroom trim with L3 lever for 1-3/8 inch to 2 inch doors, the Design Hardware KIL storeroom trim with Schlage C keyway and flat lever for 1000 and 2000 Series devices, and the Tell EDELT80 escutcheon lever trim for 1-3/8 inch to 1-3/4 inch doors.
8) What exit trim should I use if the opening needs to be unlocked remotely from an access control system?
Mechanical night latch trim like the Accentra AU-541F is key-only from the outside and does not tie into access control. Electrified trims do: the Command Access ET15, ET25 and ET26 all run 12V/24V with fail safe or fail secure options, and the ET26 is Grade 1 with a field reversible design. The Command Access 230L electrifies Von Duprin 230L trim for V96/36/23 Series devices. Von Duprin's own E360L-BE-03 is a Grade 1 heavy duty electric passage trim with the 03 lever, fail safe, for 33/35A Series. Falcon offers the 510L-FSA/FSE electrified heavy duty lever trim for 25 Series devices, and Dormakaba's PowerPlex P201U covers rim, mortise and SVR devices.
9) What is the closest cross-brand equivalent to the Accentra AU-541F night latch lever trim?
The Sargent 704ET is the nearest match on function: it is a night latch lever exit device trim, Grade 1, heavy duty, built for the Sargent 700 Series, with field reversible operation. The AU-541F is night latch trim with the Augusta lever for Accentra/Yale 7100 Series devices. Both retract the latch by key, so the deciding factor is which exit device is on the door - each trim is built around its own manufacturer's device chassis, not interchangeable between them.
10) What should I use instead of a night latch trim if the outside lever needs to stay unlocked all day?
Night latch trim like the AU-541F keeps the outside lever rigid until a key retracts the latch, which is wrong for an opening that stays free-entry during business hours. Passage function trims release the latch with the lever and no key: the Arrow SRX01 Sierra lever with rose for ED910, S1150 and S1250 devices, the Corbin Russwin 3310AET passage trim for the ED300 Series, and the Corbin Russwin x910ET heavy-duty passage trim for the ED5200S/ED5200/ED5400/ED5800 Series. Pick the one matching the device family on the door.
11) Is the Accentra AU-541F exit trim rated for high traffic commercial use?
It's certified to ANSI/BHMA A156.3 Grade 1, the top commercial grade for exit devices and trim. That's the level specified for schools, hospitals, offices and multi-tenant buildings where the door cycles all day. For a facility standardizing hardware, Grade 1 is usually the line in the spec, and this trim meets it.
12) Can I key the Accentra AU-541F into my building's existing master key system?
Yes, that's what the less cylinder option is for. The AU-541F accepts a rim cylinder, so any rim cylinder in your keyway drops in and the trim joins the existing master system. Order it as L - Less Cylinder and supply the cylinder your locksmith already keys for the site.
13) Is there a simpler night latch option than a keyed lever trim for the outside of an exit device?
Yes, if the outside only needs a grip and a key. The Von Duprin 110MD-NL is a night latch cylinder assembly, Grade 1 heavy duty, for 22, 55 and 98/99 exit trim on metal and wood doors. The Design Hardware 2P-03NL pull trim has a cylinder hole with night latch function, Grade 1, for the 1000R and 2000R devices, and the Dexter ED1500T raised lip pull plate is a Grade 1 nightlatch function trim. The Accentra AU-541F instead pairs the same key-retract operation with the Augusta lever, which matters where a lever is required for reach and grip.
14) What are the keyless pushbutton alternatives to a keyed night latch exit trim?
If the goal is to stop issuing keys, Dormakaba pushbutton trim replaces the cylinder with a code. The E-Plex 201U is an electronic pushbutton exit trim in the E-Plex 2000 Series for wide stile applications, and the PowerPlex P201U fits rim, mortise and SVR devices. The Accentra AU-541F takes a rim cylinder and ships less cylinder or with a rim cylinder, so it stays on a key system. Confirm stile width before choosing the E-Plex 201U, which is a wide stile trim.
15) If a classroom door needs key control from the corridor, is night latch trim the right choice or should I use classroom function trim?
Night latch trim such as the Accentra AU-541F leaves the outside lever rigid and retracts the latch only with a key, which suits a service or back-of-house door more than a classroom. Classroom function trim keys the lever so it can be left unlocked between periods: the Falcon 510L is a heavy duty classroom trim with lever handle for 24/25 Series devices, the Falcon 179L is a medium duty classroom lever control trim for the 1790 Series, and the Dexter ED1000T-CLRM is a Grade 1 classroom trim with thumbpiece, pull plate and cylinder prep, supplied less cylinder.
16) Which comparable exit device trims publish a door thickness range wider than 1-3/4 inch?
The Accentra AU-541F is built for standard 1-3/4 inch doors with a rose trim configuration for stock door preparation. If the opening is thinner or thicker, the Pamex E9000 Grade 1 storeroom trim covers 1-3/8 inch to 2 inch, and the Tell escutcheon trims cover 1-3/8 inch to 1-3/4 inch across the EDELT53 keyed entry, EDELT80 storeroom, EDTHP53 thumbpiece entry and EDPT pull trim. Measure the door leaf before ordering, since these are trim-to-device specific and each follows its own device family.
17) What is the difference between rose trim and escutcheon trim when replacing exit device lever trim?
The Accentra AU-541F uses a rose x lever configuration, a compact round trim that suits stock door preparation on 1-3/4 inch doors. Escutcheon trim covers a taller plate area and is common where the existing prep or the device requires it: examples include the Corbin Russwin VT957ET nightlatch escutcheon in stamped or formed stainless steel for the ED5000 Series, the Dorma YR03R wide stile escutcheon lever trim in night latch function less cylinder, the Falcon 212L escutcheon lever trim for 20 Series with shear pin protection, and the Design Hardware LE08 entry function trim with flat lever and escutcheon for 1000R and 2000R devices. Check the existing door prep, since escutcheon trim can cover a larger cutout than a rose will.
18) Which alternatives to the Accentra AU-541F let the lever unlock with a key rather than only retracting the latch?
Entry function trim keys the lever so it operates the latch once unlocked, unlike the key-retract-only action of the AU-541F. Options include the Design Hardware KIL entry function trim with Schlage C keyway and flat lever for 1000 and 2000 Series devices, the Design Hardware LE08 entry trim with flat lever and escutcheon for 1000R and 2000R devices, both Grade 1, the Tell EDELT53 escutcheon lever trim for 1-3/8 inch to 1-3/4 inch doors, and the Delaney 500L entrance function exterior trim, offered in CT, MD and SD lever styles.
19) Are there night latch trims that keep working if someone forces the lever?
Freewheeling and shear pin designs address that. The Sargent 744 is a Grade 1 freewheeling night latch trim where the key retracts the latch, for 8700 and 8900 Series surface vertical rod and mortise devices, so downward force on the lever turns it without loading the device. The Falcon 212L escutcheon lever trim for 20 Series devices uses shear pin protection. The Accentra AU-541F is Grade 1 certified to ANSI/BHMA A156.3 with the lever fixed until keyed. On abuse-prone openings, confirm the device family first, since the 744 is specific to Sargent 8700/8900 devices.
20) What finish does the Accentra AU-541F Augusta lever trim come in?
Satin chrome, 626, on both the rim cylinder and less cylinder versions. 626 is the workhorse commercial finish, so it lines up with the satin chrome closers, hinges and exit devices already on most institutional openings. If your building is standardized on 626, this matches without special order.
