Accentra PBYPL02 YPL Series Grade 1 Privacy Cylindrical Lock with Visual Status Indicator, Pacific Beach Lever

Accentra PBYPL02 YPL Series Grade 1 Privacy Cylindrical Lock with Visual Status Indicator, Pacific Beach Lever

(No reviews yet) Write a Review

Model: PBYPL02 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$359.00
$201.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

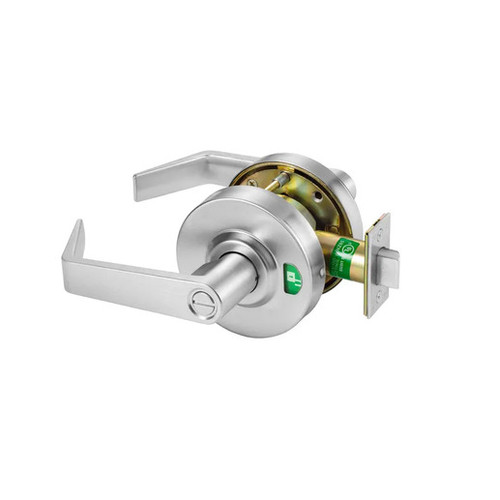

Accentra AUYPL02 YPL Series Grade 1 Privacy Cylindrical Lock with Visual Status Indicator

Professional Privacy Lock Solution with Visual Door Status Display

The Accentra AUYPL02 YPL Series cylindrical lock delivers Grade 1 commercial-grade security with an innovative visual status indicator system. This privacy function lock features bold green and red status symbols that eliminate guesswork about door lock status, making it ideal for commercial applications requiring enhanced privacy awareness. The lock installs on standard 1-3/4" thick doors with 2-3/4" backset and meets ADA compliance requirements with UL listing for 3-hour fire doors.

Professional Features & Benefits

  • Red or Green window display with padlock icon for visual door status
  • Cylindrical lock construction for durability and longevity in high-use applications (not the less durable tubular design of other indicator locks)
  • Privacy function (F76A) with push button lock and for automatic unlock when inside lever is pushed down
  • Using a standard bored lock door prep, this indicator lock is ideal for new construction or retrofit applications
  • One motion for egress
  • Coin turn for emergency access
  • Through-bolted for robust operation
  • Lever returns to within 1/2″ of door face
  • UL Listed for 3 hour fire doors
  • ADA compliant lever
  • Patent pending
  • 2-3/4″ backset latch supplied standard with all YPL02 locksets (see part number 378PL for 2-3/8″ backset)
  • The YPL02 installs on 1-3/4″ thick doors standard. It can also be used on 1-3/8″ thick doors by adding adapter plates. See adapter plate kit model number APK-2.



Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including 1-3/4" door thickness and 2-3/4" backset compatibility for this lockset.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for standard bored lock preparation.
  3. Prepare door by drilling required holes per manufacturer specifications, ensuring proper alignment for through-bolt mounting system.
  4. Install all mounting hardware and secure the lockset to door using through-bolt construction per manufacturer torque specifications.
  5. Adjust lever operation for proper alignment, latching, and smooth operation with lever return to within 1/2" of door face.
  6. Test privacy function operation including pushbutton lock, coin turn emergency access, and visual indicator status changes to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra YPL Series indicator locks deliver professional-grade reliability with Grade 1 cylindrical lock construction rated for demanding commercial applications. UL-cUL listed for 3-hour fire doors with full ADA compliance and ANSI/BHMA certifications. Engineered for high-use environments where dependable privacy function and visual status indication are essential for operational efficiency and user confidence.

Product Specs

Series:
YPL Series
Subcategory:
Cylindrical
Keyed Function:
Non-Keyed
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Indicator Lock
Keyed:
No
Commercial/Residential:
Commercial
Handle Type:
Lever
Lock Function:
Privacy/Bed/Bath
Product Attribute:
Indicator Locks
Tags:
yale au ypl02, au ypl02, yale privacy lock withindicator, yale indicator cylindricallock
Product Function:
Privacy/Bed/Bath
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra PBYPL02 626 – Frequently Asked Questions

1) Will the Accentra PBYPL02 indicator lock fit a 1-3/8 inch door?
Only with an adapter. The YPL02 installs on 1-3/4 inch doors as standard, and Accentra covers 1-3/8 inch doors with adapter plate kit APK-2. If you are hanging these on older 1-3/8 inch interior doors, order the APK-2 kit alongside the lock or it won't sit right on the door.
2) What backset does the Accentra YPL02 privacy lock come with, and can I get a 2-3/8 inch backset?
Every YPL02 lockset ships with a 2-3/4 inch backset latch as standard. For a 2-3/8 inch backset, which is the common backset on lighter residential-style bores, specify part number 378PL. Check the existing cross-bore to face-of-door dimension before ordering, because the wrong backset puts the latch off the strike prep entirely.
3) Can I put an indicator privacy lock on a fire rated restroom door?
The YPL02 is UL Listed for 3 hour fire doors, so it is a legitimate choice on a rated restroom or single-occupancy door assembly. It is also an ADA compliant lever, and the lever returns to within 1/2 inch of the door face, which is what keeps it from catching clothing or equipment in a corridor.
4) Do I need to re-prep my doors to install the Accentra YPL indicator lock?
No. The YPL02 uses a standard bored lock door prep, so it drops into existing cylindrical prep on a retrofit as well as new construction. That is the practical difference from many indicator products that require a separate deadbolt bore or a mortise pocket. It is through-bolted, so you get a solid mount on a hollow metal or wood door without relying on wood screws alone.
5) How does someone get into a restroom with an Accentra YPL02 if a person inside collapses?
There is a coin turn on the outside for emergency access, so a manager or maintenance tech can release the lock with a coin or flat blade without keys. From inside, the door unlocks in one motion for egress: pushing the inside lever down releases the pushbutton and lets the occupant out. Locking is a simple pushbutton on the inside.
6) Should I use a cylindrical indicator lock or an indicator deadbolt on a restroom door?
They solve the same problem differently. The Accentra YPL02 is a single Grade 1 cylindrical lockset: latch, lever, privacy function, and the indicator all in one bored prep, one motion to get out. An indicator deadbolt like the Hager 3216 (Grade 2, thumbturn x indicator, 1 inch throw, 1-3/4 inch door) or the Schlage B660-IS-LOC Grade 1 deadbolt is a second device above a separate passage set, which means a second bore and two motions to exit. Pick the cylindrical lockset when you want a single point of operation on an egress door; pick the deadbolt when you are adding indication to doors that already have working passage hardware.
7) What is the closest Grade 1 equivalent to the Accentra PBYPL02 privacy lever lock with a visual indicator?
The Corbin Russwin CLX3320 NVSL is the closest peer. It is a Grade 1 extra heavy duty privacy/bedroom/bathroom visual status lever lock with indicator in the CLX3300 Series, fire rated, and covers 1-3/4 inch to 2 inch door thickness. Like the PBYPL02, it is a lever-operated privacy lock with the indicator built into the trim rather than a separate deadbolt, so one bored opening gets both the latch and the status display. The PBYPL02 is Grade 1 privacy/bed/bath with a lever handle and is non-keyed.
8) I need an occupancy indicator on a restroom door that already has a passage lever. What do I use instead of a full indicator lockset?
Use a separate indicator deadbolt above the existing passage set. The Hager 3216 is a Grade 2 thumbturn by occupancy indicator deadbolt with a 1 inch throw, fire rated, for 1-3/4 inch doors. The Cal-Royal IND90-G2 is an indicator deadbolt with an ADA thumbturn. The Arrow E50 is a non-keyed Grade 2 exit deadlock with a vacant/occupied indicator on the outside and fits 1-3/8 inch to 1-3/4 inch doors. All three add the status display through a second bore, leaving the existing lever alone; the Accentra PBYPL02 puts the privacy function and the indicator together in one standard bored lock prep.
9) Are the Emtek 8383, 8483, 8583 and 8683 indicator privacy bolts substitutes for an Accentra PBYPL02?
They are not. The Emtek 8383 Wilshire, 8483 Watford, 8583 Square and 8683 Disk are thumbturn privacy bolts with double rosettes and an indicator, and each is designed to be used with a brass passage set, so the latch and the handle come from a separate product. The Accentra PBYPL02 is a single Grade 1 privacy/bed/bath cylindrical lockset with a lever, where the pushbutton lock, the latch and the indicator window are all in the one lockset. If the opening has one bored hole and needs the lever and status together, the Emtek bolts do not fill it.
10) The restroom needs to be lockable by staff with a key, not just a privacy pushbutton. What do I order instead?
Go keyed. The Falcon H2171 is a Grade 2 public restroom interconnected lock with an occupancy indicator and a single cylinder deadbolt, in the H2 Series with a storeroom/public restroom function. The Schlage B660-IS-LOC is a Grade 1 heavy duty single cylinder deadbolt with an inside UNLOCKED/LOCKED indicator, cylinder by thumbturn. The Accentra PBYPL02 is non-keyed with a coin turn for emergency access, so it has no key control for staff.
11) The door is prepped for a mortise lock, not a bored lock. What indicator option fits?
The Schlage L460 with the outside VACANT/OCCUPIED indicator is a Grade 1 heavy duty small case mortise deadbolt, cylinder by thumbturn, for 1-3/4 inch doors. The Schlage L460J is the Grade 1 entrance/office small case mortise deadbolt version, cylinder by thumbturn, 6-pin FSIC less core, with a 5-9/16 inch by 1-1/4 inch face. Both take a mortise pocket. The Accentra PBYPL02 uses a standard bored lock door prep and will not drop into a mortise cutout.
12) The door is 1-3/8 inch thick. Which indicator locks cover that thickness?
The Arrow E50 exit deadlock covers 1-3/8 inch to 1-3/4 inch doors, and the Schlage B560 indicator deadbolt covers 1-3/8 inch to 1-7/8 inch. The Accentra PBYPL02 installs on 1-3/4 inch doors standard and can be used on 1-3/8 inch doors by adding the APK-2 adapter plate kit, so the thin door is workable either way.
13) What does the indicator on the Accentra Pacific Beach lever lock actually show?
A window on the outside rose shows red or green with a padlock icon, so anyone approaching sees whether the room is occupied without pulling on the lever. That is the point of the product in a single-occupancy restroom, exam room, or lactation room: it cuts the door rattling and the knocking. The lock is non-keyed, so status is set only from inside the room.
14) Is a tubular indicator lock good enough for a high traffic restroom, or do I need cylindrical?
For heavy public traffic, cylindrical is the durable choice. The Accentra YPL02 is built as a Grade 1 cylindrical lock rather than the lighter tubular design used on many indicator locks, and Grade 1 is the highest ANSI/BHMA operational grade for commercial door hardware. In the indicator category we also carry lighter options, including the Cal-Royal IND84 at Grade 3 and the Arrow E50 exit deadlock at Grade 2, which suit low-traffic or light-duty openings rather than a busy public restroom.
15) Does the Accentra YPL02 privacy lock need to be handed when I order it?
No handing to specify. What you do need to settle on the order is finish (605, 613E, 626, or BSP), whether the opening needs the 2-3/8 inch backset latch (378PL) instead of the standard 2-3/4 inch, and whether the door is 1-3/8 inch and therefore needs the APK-2 adapter plate kit. There is no keying decision, since it is a non-keyed privacy function.
16) What is a lighter duty indicator option than the Accentra PBYPL02 for a low traffic restroom?
For lower traffic, the Cal-Royal IND84 is a Grade 3 indicator deadbolt with a thumbturn by indicator function, and the Falcon D271 is a Grade 2 medium duty deadbolt with an occupancy indicator and a one-sided thumbturn function in the D200 Series. Both are deadbolt-format, so the door still needs a separate handle. The Accentra PBYPL02 is Grade 1 commercial and combines the lever, privacy latch and indicator in one unit.
17) Which indicator lock reads status from inside the room versus outside the door?
It depends on the model. The Arrow E50 carries a vacant/occupied indicator on the outside of the door, and the Schlage L460 places its VACANT/OCCUPIED indicator on the outside as well. The Schlage B560 and B660 both put an UNLOCKED/LOCKED indicator on the inside. The Accentra PBYPL02 shows a red or green window with a padlock icon for door status.
