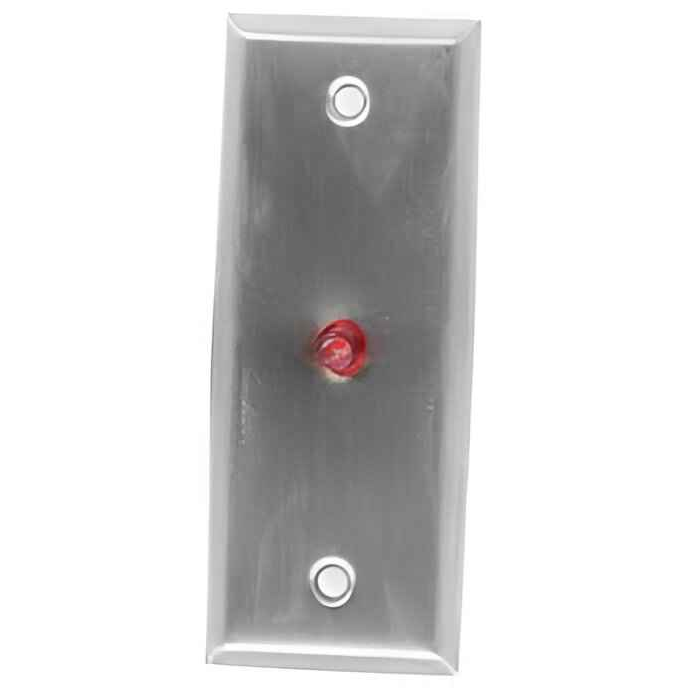

ACSI 1341-1 Narrow style, LED (Red or Green), 1" frame mount

The ACSI 1341-1 is an indicator plate from the 1340 Series. Indicators in that series give visual or audible indication of system status, so at the door you get a live read on whether the opening is secure, released, or alarmed. The 1341-1 specifically is the narrow style plate with an LED, available red or green.

Indicator only. The 1341-1 reports system status through its LED; it does not release the door. If you need a plate the user actually presses to request exit or momentarily release the lock, look at a remote push station such as the Alarm Controls RP Series narrow remote plates or the RP-09 single remote station wall plate with LED status indicator, which pairs a button with the status light.

LED color is a choice on the 1341-1, red or green. Green is the usual pick for a door-secure or power-on read, red for alarm or unlocked, but the plate itself is the same narrow frame mount body either way. Specify the color you want when you order.

The 1341-1 is the plate and LED at the opening only. It has to be driven by the access control or lock power supply circuit that knows the door state, and you run low voltage wire to it through the frame. Plan the frame raceway or conduit before the frame is set, because the mount is on the frame face and retrofitting wire into a filled frame is the part that costs time.
